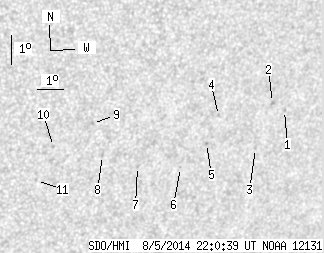

SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.45 | 0.00 | 7.47 | -19.08 | 237.53 | 32.01 | 230.51 | 0.6501 | -68.6 | 14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.74 | -18.43 | 241.66 | 36.14 | 234.72 | 0.6877 | 451.0 | 395.9 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -18.13 | 241.12 | 35.59 | 234.70 | 0.6800 | 383.0 | 467.1 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -19.64 | 240.81 | 35.29 | 232.60 | 0.6872 | 518.0 | 418.3 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -18.43 | 239.08 | 33.56 | 232.77 | 0.6609 | 684.0 | 520.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -19.34 | 238.82 | 33.30 | 231.42 | 0.6650 | 613.0 | 568.6 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -20.10 | 238.00 | 32.47 | 229.81 | 0.6624 | -472.0 | -387.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -19.97 | 236.33 | 30.81 | 228.53 | 0.6447 | -595.0 | -508.3 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -19.51 | 234.92 | 29.40 | 227.80 | 0.6268 | -310.0 | -288.1 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -18.41 | 234.34 | 28.82 | 228.65 | 0.6115 | -719.0 | -577.8 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -19.11 | 233.05 | 27.53 | 226.48 | 0.6044 | -648.0 | -451.0 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -20.23 | 232.64 | 27.11 | 224.66 | 0.6106 | -660.0 | -523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
