SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.20 | 0.00 | 5.75 | 19.93 | 180.46 | -25.06 | 58.20 | 0.4707 | -23.1 | 136.4 | |
|
previous
or next observation for the same group /

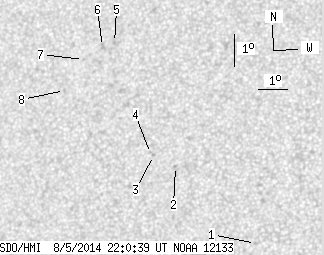

back to the solar disc SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.63 | 185.45 | -20.08 | 62.55 | 0.3741 | -730.0 | -442.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.91 | 182.44 | -23.08 | 60.31 | 0.4312 | -744.0 | -733.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 18.22 | 181.63 | -23.89 | 60.40 | 0.4443 | -717.0 | -633.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 18.28 | 181.52 | -24.01 | 60.39 | 0.4462 | -378.0 | -365.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 21.69 | 179.66 | -25.87 | 55.51 | 0.4938 | 827.0 | 675.0 | |
| 0.00 | 3.34 | 0.00 | 1.91 | 21.55 | 179.25 | -26.28 | 56.13 | 0.4979 | 475.0 | 426.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 21.11 | 178.64 | -26.88 | 57.42 | 0.5026 | 570.0 | 432.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 20.11 | 178.14 | -27.39 | 59.63 | 0.5026 | 512.0 | 485.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
