SDO HMI 2014-08-06 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.04 | 484.57 | 41.64 | 279.70 | 9.44 | 172.91 | -30.95 | 81.80 | 0.5145 | 86.5 | 264.7 | |
|
previous
or next observation for the same group /

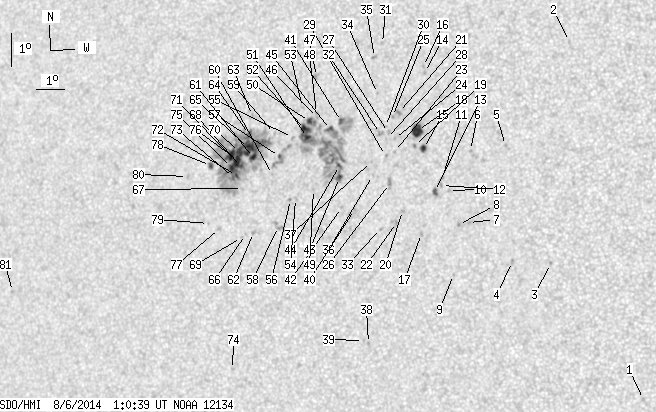

back to the solar disc SDO HMI 2014-08-06 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.95 | 2.50 | 185.11 | -18.76 | 100.15 | 0.3279 | -76.0 | -117.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 13.31 | 182.13 | -21.74 | 69.82 | 0.3856 | -520.0 | -454.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 6.53 | 181.96 | -21.90 | 87.73 | 0.3725 | -884.0 | -739.9 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 6.54 | 180.70 | -23.16 | 87.69 | 0.3928 | -807.0 | -698.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 10.06 | 180.25 | -23.62 | 78.91 | 0.4037 | -776.0 | -605.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 9.85 | 179.08 | -24.79 | 79.75 | 0.4215 | 716.0 | 523.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 7.66 | 179.17 | -24.70 | 84.96 | 0.4175 | -726.0 | -487.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 7.59 | 178.83 | -25.03 | 85.17 | 0.4227 | -869.0 | -766.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 6.06 | 178.75 | -25.12 | 88.79 | 0.4240 | -664.0 | -510.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.60 | 178.43 | -25.44 | 82.82 | 0.4299 | -790.0 | -590.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 8.99 | 178.19 | -25.67 | 81.97 | 0.4340 | -832.0 | -586.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 8.75 | 178.18 | -25.69 | 82.53 | 0.4339 | -867.0 | -737.6 | |
| 1.45 | 3.34 | 0.80 | 1.84 | 8.55 | 177.95 | -25.92 | 83.01 | 0.4372 | -931.4 | -776.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 12.16 | 177.29 | -26.58 | 75.13 | 0.4545 | -719.0 | -586.7 | |
| 2.71 | 4.43 | 1.50 | 2.45 | 9.84 | 177.47 | -26.39 | 80.18 | 0.4464 | -1056.6 | -825.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.34 | 177.23 | -26.64 | 74.76 | 0.4558 | -701.0 | -591.7 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 7.26 | 177.59 | -26.27 | 86.00 | 0.4420 | -503.0 | -436.0 | |
| 9.40 | 12.38 | 5.21 | 6.87 | 10.38 | 177.22 | -26.65 | 79.05 | 0.4512 | -1030.5 | -586.8 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 9.92 | 177.16 | -26.71 | 80.08 | 0.4514 | -837.0 | -677.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 7.93 | 176.90 | -26.97 | 84.54 | 0.4531 | -740.0 | -674.5 | |
| 0.00 | 2.44 | 0.00 | 1.36 | 10.90 | 176.51 | -27.36 | 78.12 | 0.4630 | -849.0 | -730.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 7.55 | 176.72 | -27.15 | 85.38 | 0.4557 | -811.0 | -647.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 9.71 | 176.48 | -27.39 | 80.70 | 0.4613 | -617.0 | -495.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 10.10 | 176.45 | -27.42 | 79.85 | 0.4625 | -747.0 | -595.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 10.77 | 176.31 | -27.56 | 78.46 | 0.4657 | -644.0 | -559.5 | |
| 0.00 | 5.33 | 0.00 | 2.98 | 8.72 | 176.39 | -27.48 | 82.84 | 0.4616 | -824.0 | -612.1 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 10.27 | 176.22 | -27.65 | 79.54 | 0.4662 | -630.0 | -561.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 10.09 | 176.17 | -27.70 | 79.95 | 0.4667 | -504.0 | -478.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 9.57 | 176.18 | -27.69 | 81.05 | 0.4657 | -716.0 | -673.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 10.45 | 176.10 | -27.77 | 79.19 | 0.4684 | -609.0 | -473.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 12.98 | 175.72 | -28.15 | 74.03 | 0.4801 | -78.0 | -137.0 | |
| 0.00 | 2.98 | 0.00 | 1.67 | 10.23 | 175.94 | -27.92 | 79.69 | 0.4703 | -644.0 | -532.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 7.34 | 176.18 | -27.69 | 85.86 | 0.4640 | -514.0 | -527.6 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 11.44 | 175.72 | -28.15 | 77.20 | 0.4761 | -566.0 | -470.5 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 12.53 | 175.49 | -28.38 | 75.02 | 0.4823 | -642.0 | -562.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 8.94 | 175.78 | -28.09 | 82.47 | 0.4711 | -618.0 | -531.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.36 | 175.71 | -28.16 | 81.58 | 0.4726 | -489.0 | -403.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 3.83 | 175.94 | -27.93 | 93.39 | 0.4701 | -745.0 | -587.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 3.91 | 175.76 | -28.11 | 93.17 | 0.4726 | -609.0 | -428.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 7.88 | 175.23 | -28.63 | 84.77 | 0.4786 | -603.0 | -447.1 | |
| 1.81 | 18.80 | 1.03 | 10.67 | 10.53 | 174.54 | -29.33 | 79.39 | 0.4919 | 1071.9 | 572.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 7.91 | 174.77 | -29.09 | 84.71 | 0.4856 | -741.0 | -555.8 | |
| 2.44 | 128.64 | 1.38 | 73.42 | 8.82 | 174.63 | -29.24 | 82.86 | 0.4884 | -952.2 | 287.2 | |
| 1.45 | -43.00 | 0.82 | -43.00 | 9.19 | 174.60 | -29.27 | 82.11 | 0.4892 | -718.6 | 999999 | |
| 2.17 | -43.00 | 1.24 | -43.00 | 10.26 | 174.18 | -29.69 | 80.00 | 0.4969 | 1046.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 10.61 | 173.68 | -30.19 | 79.42 | 0.5049 | 900.0 | 715.9 | |
| 0.00 | 2.98 | 0.00 | 1.72 | 11.85 | 173.50 | -30.37 | 77.01 | 0.5098 | 662.0 | 511.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 10.73 | 173.63 | -30.24 | 79.19 | 0.5058 | 856.0 | 778.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 8.41 | 173.74 | -30.12 | 83.78 | 0.5014 | 933.0 | 639.9 | |
| 2.53 | -43.00 | 1.45 | -43.00 | 10.47 | 173.40 | -30.46 | 79.74 | 0.5087 | 988.4 | 999999 | |
| 2.44 | -43.00 | 1.40 | -43.00 | 9.98 | 173.38 | -30.49 | 80.71 | 0.5083 | 1148.1 | 999999 | |
| 4.79 | -43.00 | 2.76 | -43.00 | 10.22 | 173.29 | -30.58 | 80.26 | 0.5100 | 1062.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 10.88 | 173.11 | -30.76 | 79.00 | 0.5137 | 650.0 | 516.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 8.10 | 173.13 | -30.74 | 84.43 | 0.5105 | -697.0 | -480.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 9.95 | 172.85 | -31.02 | 80.85 | 0.5162 | 741.0 | 617.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 8.06 | 172.95 | -30.92 | 84.52 | 0.5131 | -570.0 | -495.6 | |
| 0.72 | 13.29 | 0.42 | 7.70 | 9.35 | 172.44 | -31.43 | 82.07 | 0.5215 | 1000.6 | 786.4 | |
| 0.00 | 5.42 | 0.00 | 3.14 | 7.22 | 172.59 | -31.28 | 86.17 | 0.5183 | 609.0 | 727.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 10.04 | 172.18 | -31.68 | 80.79 | 0.5260 | 695.0 | 540.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 8.79 | 172.24 | -31.63 | 83.16 | 0.5240 | 534.0 | 410.7 | |
| 3.34 | 212.34 | 1.96 | 125.05 | 9.27 | 171.50 | -32.37 | 82.33 | 0.5352 | 1106.8 | 425.6 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 6.99 | 171.70 | -32.16 | 86.60 | 0.5314 | 899.0 | 757.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.54 | 171.32 | -32.54 | 79.98 | 0.5391 | 734.0 | 606.5 | |
| 2.89 | -61.00 | 1.70 | -61.00 | 9.96 | 171.28 | -32.59 | 81.07 | 0.5391 | 721.9 | 999999 | |
| 9.76 | -61.00 | 5.73 | -61.00 | 9.53 | 171.29 | -32.58 | 81.86 | 0.5385 | 1038.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 6.91 | 171.42 | -32.45 | 86.75 | 0.5356 | 661.0 | 514.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 8.30 | 171.19 | -32.68 | 84.15 | 0.5391 | 412.0 | 416.7 | |
| 0.27 | -61.00 | 0.16 | -61.00 | 8.97 | 171.09 | -32.78 | 82.92 | 0.5409 | 1135.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 6.81 | 171.28 | -32.59 | 86.93 | 0.5376 | 662.0 | 538.8 | |
| 3.44 | -61.00 | 2.02 | -61.00 | 9.39 | 170.97 | -32.89 | 82.15 | 0.5430 | 952.2 | 999999 | |
| 6.60 | -61.00 | 3.89 | -61.00 | 9.11 | 170.89 | -32.97 | 82.68 | 0.5439 | 1091.5 | 999999 | |
| 1.45 | -61.00 | 0.85 | -61.00 | 8.69 | 170.94 | -32.93 | 83.46 | 0.5430 | 938.0 | 999999 | |
| 0.90 | -61.00 | 0.53 | -61.00 | 8.62 | 170.83 | -33.04 | 83.59 | 0.5445 | 772.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 2.78 | 171.16 | -32.70 | 94.38 | 0.5433 | -637.0 | -446.2 | |
| 3.07 | -61.00 | 1.81 | -61.00 | 8.92 | 170.73 | -33.14 | 83.05 | 0.5462 | 828.5 | 999999 | |
| 6.60 | -61.00 | 3.90 | -61.00 | 9.28 | 170.65 | -33.21 | 82.39 | 0.5475 | 801.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 7.04 | 170.46 | -33.41 | 86.49 | 0.5496 | 740.0 | 601.7 | |
| 1.81 | 3.25 | 1.08 | 1.94 | 8.93 | 169.95 | -33.92 | 83.08 | 0.5574 | 586.5 | 413.2 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 7.17 | 170.04 | -33.83 | 86.25 | 0.5556 | 558.0 | 453.2 | |
| 0.00 | 2.08 | 0.00 | 1.25 | 8.55 | 169.13 | -34.74 | 83.81 | 0.5689 | -747.0 | -530.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 4.63 | 162.66 | -41.21 | 89.98 | 0.6589 | 591.0 | 442.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
