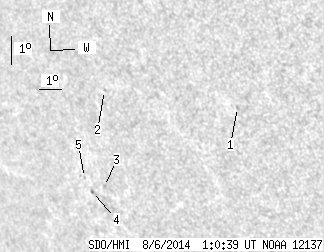

SDO HMI 2014-08-06 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.05 | 0.00 | 4.74 | -19.78 | 159.61 | -44.26 | 121.93 | 0.7743 | 508.8 | 402.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.28 | -17.91 | 164.70 | -39.17 | 122.61 | 0.7157 | 670.0 | 476.3 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -17.77 | 159.00 | -44.87 | 119.20 | 0.7719 | 569.0 | 451.1 | |
| 0.00 | 1.81 | 0.00 | 1.48 | -21.07 | 157.80 | -46.07 | 122.41 | 0.7981 | 359.0 | 293.2 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -21.29 | 157.14 | -46.73 | 122.32 | 0.8050 | 505.0 | 508.1 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -20.84 | 156.95 | -46.92 | 121.71 | 0.8046 | 441.0 | 327.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
