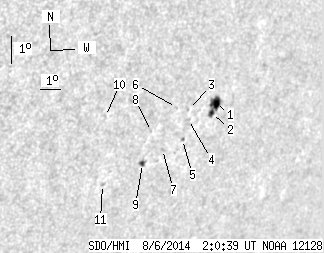

SDO HMI 2014-08-06 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.85 | 27.84 | 9.97 | 23.19 | -20.70 | 250.48 | 47.16 | 238.54 | 0.8062 | 345.2 | 240.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.96 | 16.36 | 6.73 | 13.85 | -20.20 | 251.48 | 48.16 | 239.60 | 0.8128 | 567.1 | 348.1 | |
| 2.17 | -1.00 | 1.84 | -1.00 | -20.53 | 251.42 | 48.11 | 239.20 | 0.8137 | 521.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -20.30 | 250.22 | 46.90 | 238.89 | 0.8021 | 523.0 | 442.0 | |
| 0.00 | 1.63 | 0.00 | 1.35 | -20.64 | 250.36 | 47.04 | 238.56 | 0.8049 | 247.0 | 231.3 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -21.32 | 250.35 | 47.03 | 237.80 | 0.8077 | 418.0 | 340.0 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -20.18 | 249.60 | 46.29 | 238.72 | 0.7961 | 573.0 | 495.1 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -21.59 | 249.50 | 46.19 | 237.07 | 0.8016 | 229.0 | 192.2 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -20.91 | 248.72 | 45.40 | 237.42 | 0.7915 | -405.0 | -333.8 | |
| 1.72 | 2.98 | 1.40 | 2.43 | -22.00 | 248.73 | 45.41 | 236.21 | 0.7968 | -634.3 | -481.0 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -20.22 | 246.37 | 43.05 | 236.94 | 0.7666 | 476.0 | 318.0 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -22.59 | 247.12 | 43.80 | 234.66 | 0.7856 | 254.0 | 272.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
