SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.98 | 0.00 | 2.73 | 18.13 | 245.96 | 43.19 | 290.14 | 0.6953 | 598.2 | 505.9 | |
|
previous
or next observation for the same group /

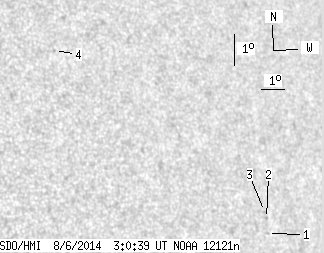

back to the solar disc SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.57 | 16.22 | 247.77 | 45.00 | 286.82 | 0.7116 | 680.0 | 574.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 16.68 | 247.86 | 45.09 | 287.45 | 0.7135 | 545.0 | 492.0 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 16.90 | 247.84 | 45.07 | 287.76 | 0.7136 | 534.0 | 486.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 22.50 | 240.53 | 37.76 | 298.13 | 0.6438 | 634.0 | 484.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
