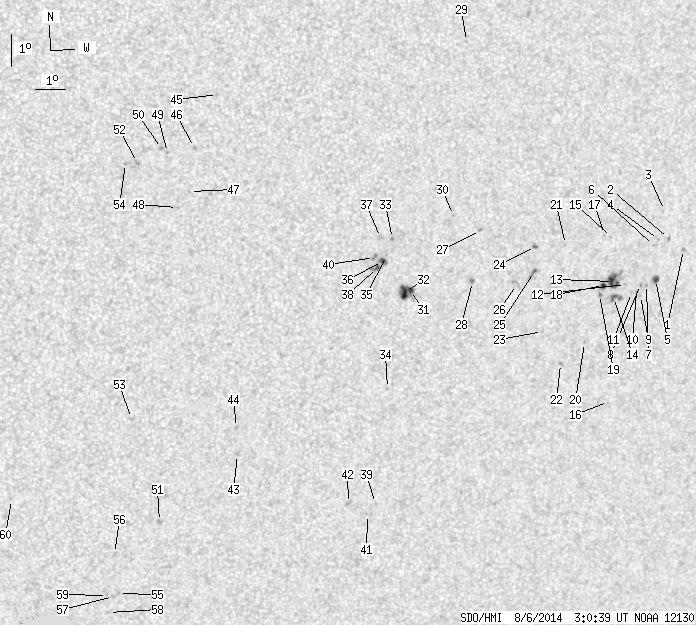

SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.55 | 139.77 | 18.33 | 80.38 | -8.11 | 229.11 | 26.34 | 241.16 | 0.5034 | 221.2 | 243.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.94 | -6.98 | 236.65 | 33.88 | 249.32 | 0.5937 | 623.0 | 477.8 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -6.60 | 236.07 | 33.30 | 249.58 | 0.5841 | 634.0 | 537.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -5.72 | 235.86 | 33.09 | 250.90 | 0.5771 | 618.0 | 589.7 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -6.61 | 235.70 | 32.93 | 249.35 | 0.5793 | 663.0 | 532.5 | |
| 2.53 | 4.34 | 1.54 | 2.65 | -7.86 | 235.69 | 32.93 | 247.34 | 0.5857 | 752.5 | 590.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -6.79 | 235.53 | 32.76 | 248.96 | 0.5780 | 711.0 | 593.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -8.00 | 235.38 | 32.61 | 246.92 | 0.5823 | 667.0 | 528.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -7.98 | 235.16 | 32.39 | 246.79 | 0.5793 | 692.0 | 711.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -8.33 | 235.19 | 32.42 | 246.26 | 0.5817 | 502.0 | 410.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.20 | 235.03 | 32.26 | 246.37 | 0.5789 | 673.0 | 599.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.22 | 234.85 | 32.08 | 246.22 | 0.5766 | 485.0 | 404.7 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -7.95 | 234.61 | 31.84 | 246.48 | 0.5720 | -129.0 | -87.9 | |
| 9.13 | 24.32 | 5.47 | 14.58 | -7.83 | 234.17 | 31.40 | 246.37 | 0.5655 | 907.3 | 459.2 | |
| 2.08 | 8.23 | 1.25 | 4.95 | -8.34 | 234.21 | 31.44 | 245.58 | 0.5690 | 851.3 | 674.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.45 | 233.99 | 31.22 | 248.54 | 0.5555 | 725.0 | 524.2 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -11.63 | 234.38 | 31.61 | 240.58 | 0.5916 | 569.0 | 506.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.34 | 233.73 | 30.96 | 248.56 | 0.5515 | 520.0 | 460.8 | |
| 2.08 | -13.00 | 1.24 | -13.00 | -7.94 | 233.82 | 31.05 | 245.95 | 0.5615 | 863.0 | 999999 | |
| 0.36 | 1.63 | 0.22 | 0.97 | -8.21 | 233.70 | 30.93 | 245.42 | 0.5615 | 822.5 | 745.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -9.70 | 233.30 | 30.53 | 242.72 | 0.5655 | 644.0 | 514.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -6.57 | 232.36 | 29.59 | 247.21 | 0.5342 | -632.0 | -514.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -10.32 | 232.50 | 29.73 | 241.10 | 0.5594 | 668.0 | 602.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -9.26 | 231.76 | 28.99 | 242.19 | 0.5429 | 619.0 | 484.1 | |
| 0.72 | 2.80 | 0.42 | 1.62 | -6.58 | 231.31 | 28.54 | 246.42 | 0.5199 | -718.9 | -566.7 | |
| 0.63 | 4.43 | 0.37 | 2.57 | -7.36 | 231.33 | 28.56 | 245.07 | 0.5249 | 830.0 | 712.1 | |
| 0.00 | 4.25 | 0.00 | 2.46 | -7.73 | 230.73 | 27.96 | 243.93 | 0.5192 | 516.0 | 683.5 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -5.98 | 229.38 | 26.61 | 245.97 | 0.4897 | 743.0 | 616.0 | |
| 0.00 | 2.53 | 0.00 | 1.44 | -7.56 | 229.19 | 26.43 | 242.91 | 0.4975 | 974.0 | 782.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -0.13 | 228.75 | 25.98 | 257.36 | 0.4508 | -678.0 | -562.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -5.47 | 228.43 | 25.66 | 246.15 | 0.4733 | 751.0 | 548.6 | |
| 3.07 | 17.72 | 1.72 | 9.93 | -7.74 | 227.10 | 24.33 | 240.56 | 0.4707 | 753.9 | 449.1 | |
| 7.69 | -31.00 | 4.30 | -31.00 | -7.80 | 226.90 | 24.13 | 240.25 | 0.4684 | 949.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.09 | 226.41 | 23.64 | 243.04 | 0.4491 | 904.0 | 770.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -10.80 | 226.54 | 23.77 | 234.50 | 0.4883 | -468.0 | -412.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.61 | 226.23 | 23.46 | 241.83 | 0.4505 | 717.0 | 602.9 | |
| 1.81 | 10.22 | 1.00 | 5.66 | -6.79 | 226.11 | 23.34 | 241.34 | 0.4501 | 936.2 | 724.4 | |
| 0.00 | 3.07 | 0.00 | 1.70 | -6.04 | 226.00 | 23.23 | 242.73 | 0.4432 | 717.0 | 606.7 | |
| 1.45 | -36.00 | 0.80 | -36.00 | -6.97 | 225.95 | 23.18 | 240.82 | 0.4493 | 831.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -14.49 | 226.49 | 23.73 | 228.60 | 0.5214 | -530.0 | -458.4 | |
| 0.00 | 2.89 | 0.00 | 1.60 | -6.65 | 225.83 | 23.06 | 241.32 | 0.4453 | 972.0 | 898.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -14.84 | 226.26 | 23.49 | 227.80 | 0.5221 | -713.0 | -582.2 | |
| 0.00 | 2.35 | 0.00 | 1.35 | -14.45 | 225.57 | 22.80 | 227.53 | 0.5107 | -820.0 | -696.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -12.71 | 221.69 | 18.92 | 224.90 | 0.4499 | -752.0 | -595.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -11.84 | 221.59 | 18.82 | 226.18 | 0.4394 | -843.0 | -766.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -1.41 | 220.58 | 17.81 | 247.58 | 0.3323 | -672.0 | -523.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -3.02 | 219.87 | 17.10 | 242.27 | 0.3331 | -812.0 | -742.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -4.37 | 219.73 | 16.96 | 238.59 | 0.3423 | -660.0 | -488.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -4.85 | 219.36 | 16.59 | 236.81 | 0.3415 | -791.0 | -615.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -3.14 | 219.01 | 16.24 | 240.66 | 0.3217 | -846.0 | -702.8 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -3.01 | 218.82 | 16.05 | 240.72 | 0.3179 | -923.0 | -701.7 | |
| 0.00 | 2.80 | 0.00 | 1.55 | -14.79 | 219.28 | 16.51 | 217.91 | 0.4491 | -844.0 | -602.9 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -3.42 | 218.06 | 15.29 | 238.36 | 0.3106 | -883.0 | -737.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -11.44 | 218.15 | 15.38 | 221.09 | 0.3972 | -639.0 | -577.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -3.44 | 217.68 | 14.92 | 237.65 | 0.3055 | -834.0 | -692.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.11 | 218.12 | 15.35 | 212.90 | 0.4677 | -714.0 | -571.9 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -15.79 | 217.88 | 15.11 | 214.16 | 0.4487 | -377.0 | -422.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -17.21 | 217.96 | 15.19 | 212.52 | 0.4676 | -660.0 | -462.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.74 | 217.84 | 15.07 | 211.70 | 0.4734 | -530.0 | -431.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.17 | 217.76 | 14.99 | 212.23 | 0.4654 | -670.0 | -574.9 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -13.94 | 214.43 | 11.67 | 209.92 | 0.3951 | -686.0 | -607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
