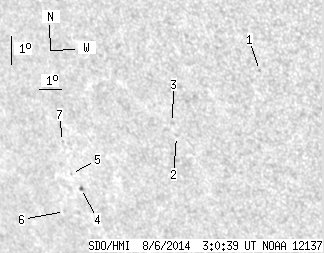

SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 7.14 | 0.51 | 5.54 | -20.15 | 159.23 | -43.54 | 122.76 | 0.7691 | 389.5 | 311.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.61 | -16.70 | 166.24 | -36.53 | 122.84 | 0.6808 | 493.0 | 415.0 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -19.17 | 162.19 | -40.58 | 123.27 | 0.7371 | 495.0 | 412.6 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -18.70 | 162.16 | -40.61 | 122.69 | 0.7348 | 197.0 | 254.5 | |
| 0.63 | 1.90 | 0.51 | 1.54 | -21.30 | 157.22 | -45.55 | 122.93 | 0.7947 | 491.0 | 380.4 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -20.81 | 156.94 | -45.82 | 122.24 | 0.7948 | 378.0 | 402.3 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -22.17 | 156.04 | -46.72 | 123.31 | 0.8089 | 283.0 | 154.5 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -19.74 | 156.94 | -45.83 | 121.01 | 0.7900 | 439.0 | 367.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
