SDO HMI 2014-08-06 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.05 | 0.00 | 5.45 | -19.12 | 237.36 | 35.14 | 233.02 | 0.6822 | -206.6 | -118.0 | |
|
previous
or next observation for the same group /

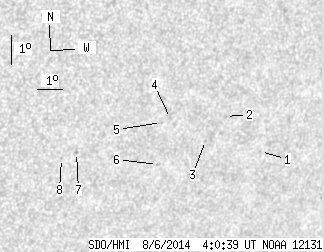

back to the solar disc SDO HMI 2014-08-06 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.78 | -19.80 | 240.98 | 38.75 | 234.82 | 0.7229 | 459.0 | 330.1 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -18.50 | 239.19 | 36.97 | 235.19 | 0.6969 | 419.0 | 446.1 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -19.26 | 238.58 | 36.36 | 233.83 | 0.6957 | 446.0 | 463.5 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -18.42 | 236.99 | 34.77 | 233.70 | 0.6737 | -685.0 | -492.2 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -18.53 | 236.67 | 34.45 | 233.31 | 0.6711 | -556.0 | -461.3 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -19.95 | 236.85 | 34.63 | 231.69 | 0.6830 | -313.0 | -373.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -19.34 | 233.58 | 31.36 | 229.77 | 0.6455 | -729.0 | -633.1 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -19.51 | 233.05 | 30.83 | 229.09 | 0.6415 | -694.0 | -579.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
