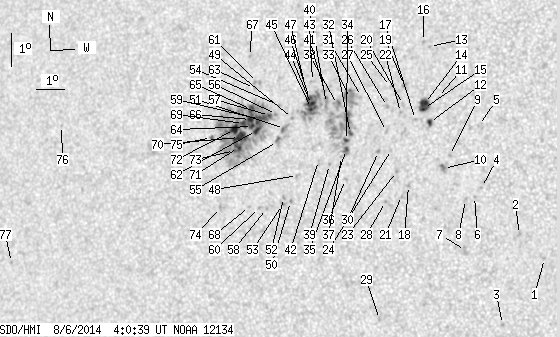

SDO HMI 2014-08-06 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.46 | 440.73 | 39.65 | 250.74 | 9.40 | 172.88 | -29.34 | 81.68 | 0.4903 | 264.4 | 295.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 5.86 | 181.52 | -20.70 | 89.68 | 0.3531 | -772.0 | -559.9 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 6.55 | 180.67 | -21.55 | 87.69 | 0.3667 | -895.0 | -712.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 3.80 | 180.21 | -22.01 | 95.05 | 0.3770 | -836.0 | -681.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 7.93 | 179.35 | -22.87 | 84.11 | 0.3887 | -851.0 | -589.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 9.81 | 179.12 | -23.10 | 79.36 | 0.3950 | 537.0 | 512.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 7.65 | 179.13 | -23.09 | 84.87 | 0.3919 | -852.0 | -730.5 | |
| 0.00 | 4.07 | 0.00 | 2.19 | 6.00 | 178.91 | -23.31 | 89.09 | 0.3952 | -488.0 | -499.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 7.55 | 178.83 | -23.39 | 85.16 | 0.3966 | -869.0 | -652.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 8.86 | 178.21 | -24.01 | 81.97 | 0.4077 | -868.0 | -727.7 | |
| 0.00 | 3.80 | 0.00 | 2.06 | 8.46 | 178.04 | -24.18 | 82.99 | 0.4099 | -1131.0 | -898.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 10.61 | 177.67 | -24.55 | 77.90 | 0.4193 | -595.0 | -480.0 | |
| 1.99 | 3.98 | 1.09 | 2.17 | 9.84 | 177.47 | -24.75 | 79.80 | 0.4210 | -987.4 | -634.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 12.15 | 177.26 | -24.96 | 74.48 | 0.4299 | -666.0 | -595.6 | |
| 5.34 | 10.76 | 2.92 | 5.89 | 10.41 | 177.25 | -24.97 | 78.52 | 0.4255 | -1028.4 | -794.1 | |
| 2.71 | -14.00 | 1.48 | -14.00 | 10.25 | 177.23 | -24.99 | 78.89 | 0.4255 | -1121.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 12.30 | 177.04 | -25.18 | 74.25 | 0.4337 | -591.0 | -477.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 9.91 | 176.98 | -25.24 | 79.76 | 0.4286 | -815.0 | -609.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.89 | 176.89 | -25.33 | 84.50 | 0.4275 | -871.0 | -684.2 | |
| 0.00 | 2.35 | 0.00 | 1.29 | 10.93 | 176.52 | -25.70 | 77.57 | 0.4379 | -926.0 | -725.6 | |
| 0.00 | 2.08 | 0.00 | 1.14 | 10.35 | 176.53 | -25.69 | 78.88 | 0.4363 | -552.0 | -466.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 7.58 | 176.67 | -25.55 | 85.25 | 0.4308 | -732.0 | -580.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.10 | 176.45 | -25.77 | 79.47 | 0.4371 | -794.0 | -647.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 8.30 | 176.45 | -25.77 | 83.60 | 0.4346 | -843.0 | -717.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 8.96 | 176.24 | -25.98 | 82.12 | 0.4387 | -111.0 | -121.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 10.87 | 176.04 | -26.18 | 77.84 | 0.4451 | -567.0 | -529.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 10.26 | 175.99 | -26.23 | 79.22 | 0.4445 | -700.0 | -520.5 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 9.50 | 176.02 | -26.20 | 80.93 | 0.4428 | -680.0 | -523.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 7.37 | 176.14 | -26.08 | 85.76 | 0.4390 | -656.0 | -515.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 3.77 | 176.10 | -26.12 | 93.95 | 0.4421 | -745.0 | -629.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 8.88 | 175.80 | -26.42 | 82.37 | 0.4454 | -794.0 | -651.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.52 | 175.07 | -27.15 | 78.89 | 0.4591 | 152.0 | 165.0 | |
| 1.18 | 48.11 | 0.66 | 26.93 | 9.38 | 174.79 | -27.43 | 81.44 | 0.4616 | -674.2 | 168.5 | |
| 0.00 | 18.90 | 0.00 | 10.56 | 10.44 | 174.69 | -27.53 | 79.16 | 0.4647 | 600.0 | 598.8 | |
| 1.09 | 9.49 | 0.61 | 5.30 | 9.16 | 174.67 | -27.55 | 81.93 | 0.4631 | -797.9 | -596.6 | |
| 0.99 | -34.00 | 0.56 | -34.00 | 8.89 | 174.69 | -27.53 | 82.52 | 0.4625 | -925.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 7.97 | 174.72 | -27.50 | 84.50 | 0.4612 | -613.0 | -463.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 8.67 | 174.53 | -27.69 | 83.02 | 0.4647 | -328.0 | -349.7 | |
| 0.00 | 6.69 | 0.00 | 3.75 | 10.24 | 174.26 | -27.96 | 79.70 | 0.4709 | 928.0 | 747.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 8.40 | 174.13 | -28.09 | 83.63 | 0.4705 | 730.0 | 559.0 | |
| 0.00 | 6.42 | 0.00 | 3.61 | 10.25 | 173.87 | -28.35 | 79.76 | 0.4768 | 987.0 | 772.2 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 10.64 | 173.76 | -28.46 | 78.97 | 0.4791 | 939.0 | 752.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 8.51 | 173.74 | -28.48 | 83.45 | 0.4766 | 736.0 | 615.6 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 10.90 | 173.31 | -28.91 | 78.56 | 0.4863 | 785.0 | 571.8 | |
| 4.61 | 38.88 | 2.61 | 21.99 | 10.20 | 173.35 | -28.87 | 79.99 | 0.4846 | 1142.3 | 753.2 | |
| 2.53 | -44.00 | 1.43 | -44.00 | 10.07 | 173.36 | -28.86 | 80.24 | 0.4842 | 1113.3 | 999999 | |
| 2.71 | -44.00 | 1.54 | -44.00 | 10.37 | 173.26 | -28.96 | 79.64 | 0.4862 | 992.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 10.70 | 173.08 | -29.14 | 79.01 | 0.4893 | 674.0 | 513.8 | |
| 0.00 | 2.26 | 0.00 | 1.28 | 8.01 | 173.04 | -29.18 | 84.53 | 0.4869 | -595.0 | -507.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 9.74 | 172.72 | -29.50 | 81.05 | 0.4933 | 842.0 | 683.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 7.21 | 172.86 | -29.36 | 86.19 | 0.4895 | 850.0 | 728.0 | |
| 0.00 | 4.97 | 0.00 | 2.83 | 9.42 | 172.46 | -29.76 | 81.73 | 0.4968 | 933.0 | 821.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 7.32 | 172.60 | -29.62 | 85.97 | 0.4934 | 929.0 | 715.3 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 7.11 | 172.58 | -29.64 | 86.41 | 0.4937 | 849.0 | 570.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 10.11 | 172.22 | -30.00 | 80.39 | 0.5013 | 671.0 | 579.7 | |
| 0.00 | 3.89 | 0.00 | 2.22 | 9.01 | 172.25 | -29.97 | 82.58 | 0.4995 | 883.0 | 733.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 9.83 | 172.14 | -30.08 | 80.96 | 0.5021 | 861.0 | 760.1 | |
| 1.27 | 211.69 | 0.73 | 122.51 | 9.78 | 171.89 | -30.33 | 81.08 | 0.5057 | 1047.8 | 396.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 6.95 | 172.02 | -30.20 | 86.71 | 0.5021 | 866.0 | 613.5 | |
| 7.60 | -57.00 | 4.37 | -57.00 | 9.65 | 171.58 | -30.64 | 81.40 | 0.5101 | 1044.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 6.97 | 171.77 | -30.45 | 86.67 | 0.5058 | 854.0 | 711.2 | |
| 0.00 | 3.80 | 0.00 | 2.19 | 10.77 | 171.36 | -30.86 | 79.26 | 0.5150 | 684.0 | 643.3 | |
| 3.62 | -57.00 | 2.08 | -57.00 | 9.30 | 171.47 | -30.75 | 82.09 | 0.5114 | 1133.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 10.58 | 171.27 | -30.95 | 79.64 | 0.5160 | 665.0 | 511.9 | |
| 1.90 | -57.00 | 1.10 | -57.00 | 9.42 | 171.32 | -30.90 | 81.88 | 0.5138 | 1101.6 | 999999 | |
| 3.80 | -57.00 | 2.19 | -57.00 | 9.93 | 171.23 | -30.99 | 80.90 | 0.5157 | 731.2 | 999999 | |
| 3.07 | -57.00 | 1.77 | -57.00 | 9.63 | 171.23 | -30.99 | 81.49 | 0.5154 | 976.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 11.54 | 170.98 | -31.24 | 77.85 | 0.5219 | 710.0 | 536.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 6.98 | 171.42 | -30.80 | 86.65 | 0.5112 | 807.0 | 639.6 | |
| 3.35 | -57.00 | 1.94 | -57.00 | 9.49 | 170.99 | -31.23 | 81.78 | 0.5188 | 877.3 | 999999 | |
| 10.49 | -57.00 | 6.07 | -57.00 | 9.06 | 170.88 | -31.34 | 82.63 | 0.5199 | 1049.5 | 999999 | |
| 3.62 | -57.00 | 2.09 | -57.00 | 8.75 | 170.88 | -31.34 | 83.22 | 0.5198 | 941.9 | 999999 | |
| 6.15 | -57.00 | 3.57 | -57.00 | 9.29 | 170.68 | -31.54 | 82.20 | 0.5231 | 853.1 | 999999 | |
| 0.72 | -57.00 | 0.42 | -57.00 | 8.66 | 170.74 | -31.48 | 83.42 | 0.5217 | 710.9 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 6.90 | 170.38 | -31.84 | 86.80 | 0.5266 | 729.0 | 617.1 | |
| 0.72 | 2.89 | 0.42 | 1.69 | 9.00 | 169.87 | -32.35 | 82.83 | 0.5347 | 654.6 | 479.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 9.03 | 164.20 | -38.02 | 83.16 | 0.6148 | 557.0 | 358.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 4.75 | 162.64 | -39.58 | 89.98 | 0.6372 | 631.0 | 521.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
