SDO HMI 2014-08-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.86 | 27.95 | 8.80 | 24.67 | -20.48 | 251.13 | 50.01 | 240.12 | 0.8298 | 421.3 | 217.9 | |
|
previous
or next observation for the same group /

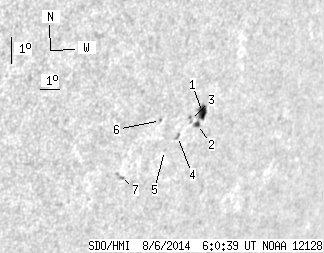

back to the solar disc SDO HMI 2014-08-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.96 | 16.64 | 7.10 | 14.85 | -20.08 | 251.81 | 50.68 | 240.87 | 0.8340 | 575.8 | 406.2 | |
| 1.90 | -1.00 | 1.70 | -1.00 | -20.48 | 251.73 | 50.60 | 240.39 | 0.8348 | 492.1 | 999999 | |
| 0.00 | 2.98 | 0.00 | 2.64 | -20.27 | 251.28 | 50.15 | 240.43 | 0.8302 | 578.0 | 498.7 | |
| 0.00 | 2.44 | 0.00 | 2.15 | -20.80 | 250.86 | 49.73 | 239.65 | 0.8287 | 527.0 | 407.2 | |
| 0.00 | 1.27 | 0.00 | 1.11 | -21.24 | 250.40 | 49.27 | 238.96 | 0.8266 | 144.0 | 97.0 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -20.17 | 249.73 | 48.61 | 239.84 | 0.8166 | 402.0 | 307.0 | |
| 0.00 | 3.26 | 0.00 | 2.76 | -21.96 | 248.54 | 47.42 | 237.27 | 0.8139 | -761.0 | -598.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
