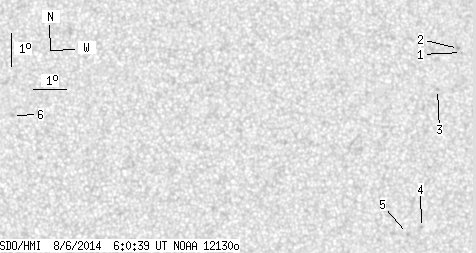

SDO HMI 2014-08-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.97 | 0.00 | 3.54 | 5.08 | 211.67 | 10.55 | 255.55 | 0.1871 | -455.8 | -368.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.37 | 7.61 | 215.24 | 14.12 | 276.81 | 0.2446 | -622.0 | -551.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.73 | 215.15 | 14.03 | 277.35 | 0.2433 | -826.0 | -761.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 6.50 | 214.45 | 13.33 | 272.31 | 0.2302 | -799.0 | -669.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 2.32 | 213.87 | 12.75 | 253.82 | 0.2306 | -747.0 | -533.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 2.15 | 213.43 | 12.31 | 252.50 | 0.2243 | -593.0 | -504.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.89 | 201.32 | 0.20 | 219.14 | 0.0055 | 852.0 | 547.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
