SDO HMI 2014-08-06 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.65 | 414.96 | 44.82 | 232.17 | 9.56 | 173.06 | -27.51 | 81.02 | 0.4630 | 289.4 | 240.0 | |
|
previous
or next observation for the same group /

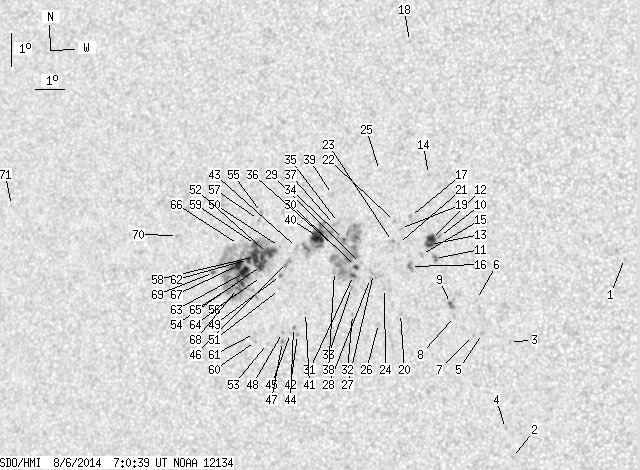

back to the solar disc SDO HMI 2014-08-06 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.04 | 183.68 | -16.90 | 75.78 | 0.2965 | -776.0 | -516.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 3.87 | 180.30 | -20.28 | 95.45 | 0.3489 | -854.0 | -686.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 7.36 | 180.08 | -20.50 | 85.38 | 0.3499 | -696.0 | -537.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 4.74 | 180.05 | -20.53 | 92.88 | 0.3514 | -677.0 | -450.5 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 7.60 | 179.18 | -21.40 | 84.81 | 0.3647 | -947.0 | -718.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.63 | 178.92 | -21.65 | 82.06 | 0.3699 | -726.0 | -596.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 7.53 | 178.89 | -21.69 | 85.04 | 0.3694 | -914.0 | -681.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 8.08 | 178.23 | -22.35 | 83.65 | 0.3804 | -743.0 | -600.3 | |
| 0.63 | 5.16 | 0.34 | 2.76 | 8.47 | 178.07 | -22.51 | 82.66 | 0.3834 | -1009.9 | -872.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 10.50 | 177.56 | -23.01 | 77.62 | 0.3952 | -760.0 | -604.7 | |
| 0.00 | 3.44 | 0.00 | 1.85 | 9.82 | 177.44 | -23.13 | 79.37 | 0.3955 | -1062.0 | -971.1 | |
| 5.61 | 10.85 | 3.03 | 5.86 | 10.39 | 177.30 | -23.28 | 77.98 | 0.3991 | -989.6 | -689.1 | |
| 2.98 | -12.00 | 1.61 | -12.00 | 10.24 | 177.25 | -23.33 | 78.38 | 0.3996 | -1042.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 12.37 | 177.03 | -23.55 | 73.27 | 0.4092 | -676.0 | -564.7 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 9.92 | 177.00 | -23.58 | 79.25 | 0.4027 | -910.0 | -657.6 | |
| 0.00 | 4.07 | 0.00 | 2.21 | 9.54 | 176.66 | -23.92 | 80.29 | 0.4074 | -845.0 | -830.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 11.07 | 176.54 | -24.04 | 76.64 | 0.4127 | -827.0 | -675.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 16.42 | 175.91 | -24.66 | 64.85 | 0.4440 | -719.0 | -538.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 10.69 | 176.23 | -24.35 | 77.66 | 0.4165 | -629.0 | -564.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 8.10 | 176.42 | -24.16 | 83.87 | 0.4092 | -793.0 | -642.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 10.23 | 176.20 | -24.38 | 78.77 | 0.4159 | -708.0 | -631.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 10.89 | 176.01 | -24.57 | 77.26 | 0.4204 | -712.0 | -460.4 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 10.28 | 175.99 | -24.59 | 78.71 | 0.4192 | -749.0 | -528.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 8.84 | 175.83 | -24.75 | 82.18 | 0.4193 | -818.0 | -631.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 12.42 | 175.35 | -25.23 | 73.99 | 0.4349 | -565.0 | -341.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 7.76 | 175.70 | -24.88 | 84.76 | 0.4204 | -729.0 | -551.3 | |
| 0.00 | 4.25 | 0.00 | 2.33 | 9.28 | 175.42 | -25.16 | 81.22 | 0.4263 | -634.0 | -551.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.12 | 175.33 | -25.25 | 81.61 | 0.4274 | -588.0 | -514.2 | |
| 0.00 | 2.53 | 0.00 | 1.39 | 9.56 | 174.96 | -25.62 | 80.67 | 0.4339 | -408.0 | -277.1 | |
| 1.36 | 88.09 | 0.75 | 48.59 | 9.46 | 174.79 | -25.78 | 80.93 | 0.4363 | -645.1 | 263.0 | |
| 0.99 | -30.00 | 0.55 | -30.00 | 9.19 | 174.75 | -25.83 | 81.57 | 0.4366 | -825.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 8.00 | 174.80 | -25.78 | 84.30 | 0.4346 | -614.0 | -512.7 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 8.82 | 174.70 | -25.87 | 82.43 | 0.4368 | -801.0 | -613.9 | |
| 0.54 | -30.00 | 0.30 | -30.00 | 10.27 | 174.31 | -26.26 | 79.23 | 0.4451 | 1050.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 10.77 | 174.09 | -26.48 | 78.16 | 0.4495 | 789.0 | 595.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 10.01 | 174.06 | -26.52 | 79.87 | 0.4485 | 879.0 | 736.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 10.71 | 173.96 | -26.62 | 78.35 | 0.4513 | 955.0 | 770.5 | |
| 0.00 | 2.62 | 0.00 | 1.45 | 9.28 | 174.09 | -26.49 | 81.49 | 0.4470 | 69.0 | 61.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 11.62 | 173.80 | -26.77 | 76.40 | 0.4558 | 761.0 | 662.5 | |
| 12.48 | 44.23 | 6.95 | 24.63 | 10.31 | 173.41 | -27.17 | 79.35 | 0.4590 | 1128.8 | 702.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 7.98 | 173.18 | -27.40 | 84.47 | 0.4597 | -557.0 | -569.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 7.30 | 172.95 | -27.63 | 85.97 | 0.4630 | 912.0 | 738.7 | |
| 0.00 | 2.35 | 0.00 | 1.32 | 9.95 | 172.71 | -27.87 | 80.31 | 0.4690 | 807.0 | 612.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 7.51 | 172.80 | -27.78 | 85.53 | 0.4654 | 806.0 | 709.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.32 | 172.71 | -27.87 | 85.93 | 0.4667 | 835.0 | 668.3 | |
| 0.00 | 4.79 | 0.00 | 2.69 | 9.47 | 172.44 | -28.14 | 81.36 | 0.4725 | 809.0 | 807.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 7.07 | 172.45 | -28.13 | 86.49 | 0.4707 | 586.0 | 434.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.34 | 172.43 | -28.15 | 85.90 | 0.4710 | 855.0 | 723.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.07 | 172.23 | -28.35 | 82.26 | 0.4752 | 824.0 | 736.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.95 | 172.11 | -28.46 | 80.43 | 0.4780 | 864.0 | 727.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 8.64 | 172.23 | -28.35 | 83.16 | 0.4748 | 735.0 | 583.8 | |
| 11.12 | 183.78 | 6.29 | 104.64 | 9.71 | 171.71 | -28.87 | 80.99 | 0.4837 | 1048.0 | 361.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 6.98 | 171.93 | -28.65 | 86.67 | 0.4786 | 715.0 | 620.3 | |
| 6.06 | -52.00 | 3.43 | -52.00 | 9.34 | 171.53 | -29.04 | 81.79 | 0.4859 | 1100.9 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.44 | 10.95 | 171.38 | -29.20 | 78.53 | 0.4907 | 845.0 | 604.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.00 | 171.56 | -29.01 | 82.48 | 0.4851 | 224.0 | 217.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 10.73 | 171.29 | -29.28 | 78.99 | 0.4916 | 696.0 | 657.6 | |
| 9.86 | -52.00 | 5.60 | -52.00 | 9.60 | 171.30 | -29.28 | 81.29 | 0.4898 | 998.7 | 999999 | |
| 3.53 | -52.00 | 2.00 | -52.00 | 9.97 | 171.26 | -29.31 | 80.55 | 0.4908 | 691.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.02 | 171.51 | -29.07 | 86.59 | 0.4851 | 721.0 | 503.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 7.26 | 171.45 | -29.12 | 86.09 | 0.4859 | 674.0 | 537.9 | |
| 2.80 | -52.00 | 1.59 | -52.00 | 9.50 | 171.06 | -29.52 | 81.54 | 0.4933 | 896.7 | 999999 | |
| 8.77 | -52.00 | 4.99 | -52.00 | 9.09 | 170.95 | -29.62 | 82.37 | 0.4944 | 1099.2 | 999999 | |
| 0.54 | -52.00 | 0.31 | -52.00 | 8.54 | 170.86 | -29.72 | 83.50 | 0.4953 | 835.2 | 999999 | |
| 3.89 | -52.00 | 2.22 | -52.00 | 8.81 | 170.80 | -29.77 | 82.96 | 0.4964 | 854.1 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.94 | 170.66 | -29.92 | 80.72 | 0.4997 | 141.0 | 94.9 | |
| 6.69 | -52.00 | 3.82 | -52.00 | 9.29 | 170.69 | -29.89 | 82.00 | 0.4986 | 864.9 | 999999 | |
| 0.99 | -52.00 | 0.57 | -52.00 | 8.60 | 170.75 | -29.83 | 83.40 | 0.4971 | 665.4 | 999999 | |
| 0.81 | 2.17 | 0.47 | 1.25 | 9.04 | 169.85 | -30.72 | 82.61 | 0.5108 | 677.7 | 548.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 10.09 | 168.44 | -32.13 | 80.77 | 0.5326 | 702.0 | 574.3 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 10.63 | 162.07 | -38.51 | 80.62 | 0.6225 | 528.0 | 478.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
