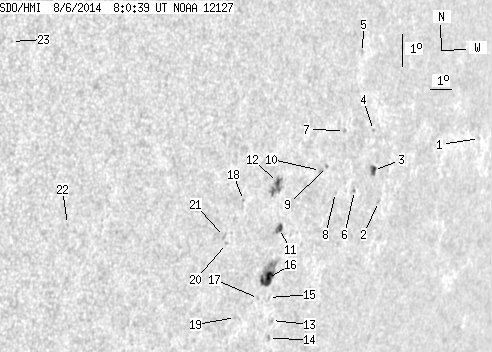

SDO HMI 2014-08-06 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.53 | 76.70 | 17.41 | 61.89 | -8.20 | 250.20 | 50.17 | 254.54 | 0.7904 | 23.1 | 201.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.12 | -6.27 | 260.07 | 60.04 | 259.37 | 0.8782 | 441.0 | 370.8 | |
| 0.00 | 1.63 | 0.00 | 1.45 | -7.72 | 254.57 | 54.54 | 256.41 | 0.8325 | 549.0 | 405.8 | |
| 3.44 | 5.34 | 3.00 | 4.67 | -6.72 | 254.13 | 54.10 | 257.49 | 0.8262 | 637.1 | 449.0 | |
| 0.00 | 0.99 | 0.00 | 0.86 | -5.46 | 253.94 | 53.91 | 258.94 | 0.8219 | -219.0 | -102.5 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -2.98 | 253.13 | 53.10 | 261.75 | 0.8091 | 571.0 | 464.4 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -7.26 | 253.23 | 53.20 | 256.60 | 0.8187 | 520.0 | 415.5 | |
| 0.00 | 1.72 | 0.00 | 1.43 | -5.33 | 252.44 | 52.41 | 258.73 | 0.8067 | 473.0 | 376.7 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -7.24 | 252.26 | 52.23 | 256.37 | 0.8091 | 400.0 | 488.8 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -6.38 | 251.73 | 51.70 | 257.26 | 0.8018 | 521.0 | 453.7 | |
| 0.00 | 2.17 | 0.00 | 1.78 | -6.48 | 251.39 | 51.37 | 257.05 | 0.7986 | 664.0 | 544.9 | |
| 3.44 | 6.33 | 2.74 | 5.04 | -8.14 | 249.66 | 49.64 | 254.49 | 0.7850 | 593.2 | 283.9 | |
| 2.26 | 12.93 | 1.78 | 10.16 | -6.68 | 249.35 | 49.32 | 256.21 | 0.7778 | 782.6 | 655.4 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -11.05 | 249.86 | 49.83 | 251.00 | 0.7954 | -414.0 | -363.6 | |
| 0.00 | 2.17 | 0.00 | 1.77 | -11.62 | 249.85 | 49.82 | 250.31 | 0.7971 | -443.0 | -374.8 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -10.29 | 249.55 | 49.52 | 251.81 | 0.7900 | -303.0 | -313.7 | |
| 12.39 | 28.31 | 9.89 | 22.59 | -9.68 | 249.38 | 49.35 | 252.50 | 0.7864 | -667.1 | -103.7 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -10.28 | 249.07 | 49.04 | 251.65 | 0.7851 | -600.0 | -481.5 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -7.11 | 247.82 | 47.80 | 255.19 | 0.7626 | 629.0 | 506.2 | |
| 0.00 | 1.72 | 0.00 | 1.35 | -10.80 | 248.10 | 48.07 | 250.66 | 0.7768 | -614.0 | -481.7 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -8.41 | 247.24 | 47.21 | 253.34 | 0.7600 | 611.0 | 525.9 | |
| 0.00 | 2.26 | 0.00 | 1.71 | -8.18 | 247.11 | 47.08 | 253.59 | 0.7580 | 673.0 | 536.6 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -7.28 | 240.30 | 40.27 | 252.12 | 0.6761 | -472.0 | -397.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -1.44 | 237.74 | 37.71 | 259.84 | 0.6235 | -478.0 | -456.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
