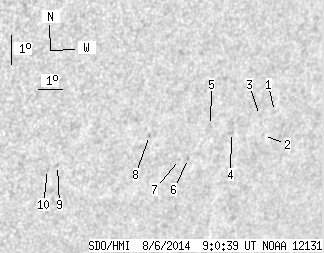

SDO HMI 2014-08-06 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.94 | 0.00 | 7.11 | -18.67 | 238.86 | 39.38 | 236.47 | 0.7223 | 183.8 | 166.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.00 | 242.32 | 42.83 | 239.44 | 0.7532 | 436.0 | 483.7 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -18.78 | 242.07 | 42.59 | 238.37 | 0.7548 | 376.0 | 257.3 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -18.09 | 241.69 | 42.21 | 238.98 | 0.7474 | 636.0 | 570.2 | |
| 0.00 | 2.17 | 0.00 | 1.59 | -18.57 | 240.62 | 41.14 | 237.79 | 0.7394 | 461.0 | 447.3 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -18.26 | 239.65 | 40.17 | 237.57 | 0.7280 | 576.0 | 493.4 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -19.32 | 239.02 | 39.54 | 235.90 | 0.7278 | 652.0 | 578.8 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -19.32 | 238.65 | 39.17 | 235.66 | 0.7241 | 570.0 | 552.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -18.42 | 237.17 | 37.69 | 235.78 | 0.7037 | -704.0 | -560.7 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -19.19 | 233.69 | 34.21 | 232.31 | 0.6733 | -589.0 | -453.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -19.30 | 233.33 | 33.85 | 231.89 | 0.6704 | -576.0 | -551.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
