SDO HMI 2014-08-06 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 18.00 | 0.55 | 13.65 | -20.57 | 157.58 | -41.90 | 124.18 | 0.7569 | 269.2 | 145.3 | |
|
previous
or next observation for the same group /

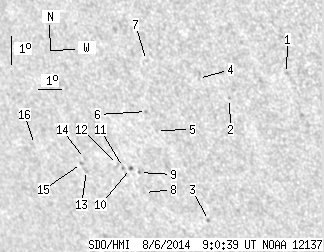

back to the solar disc SDO HMI 2014-08-06 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.72 | -17.55 | 164.65 | -34.84 | 125.15 | 0.6684 | 765.0 | 522.6 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -18.54 | 162.14 | -37.34 | 124.60 | 0.7009 | 591.0 | 448.3 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -22.82 | 159.97 | -39.51 | 128.21 | 0.7486 | 564.0 | 483.0 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -17.95 | 161.04 | -38.44 | 123.13 | 0.7087 | 528.0 | 390.1 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -19.85 | 158.73 | -40.75 | 123.98 | 0.7426 | 586.0 | 487.1 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -19.23 | 158.50 | -40.98 | 123.10 | 0.7415 | 582.0 | 535.6 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -17.50 | 159.00 | -40.48 | 121.31 | 0.7270 | 572.0 | 519.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.04 | 157.46 | -42.02 | 125.76 | 0.7668 | 288.0 | 414.0 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -21.36 | 157.49 | -41.99 | 124.99 | 0.7628 | 616.0 | 545.1 | |
| 0.72 | 1.81 | 0.55 | 1.39 | -21.25 | 157.13 | -42.35 | 124.65 | 0.7655 | 509.9 | 391.2 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -21.24 | 156.82 | -42.66 | 124.46 | 0.7683 | 106.0 | 252.3 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -21.15 | 156.59 | -42.89 | 124.23 | 0.7700 | 189.0 | 22.8 | |
| 0.00 | 2.26 | 0.00 | 1.80 | -21.48 | 155.06 | -44.42 | 123.74 | 0.7855 | -306.0 | -364.2 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -21.06 | 155.13 | -44.35 | 123.31 | 0.7829 | -593.0 | -578.6 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -21.25 | 154.92 | -44.56 | 123.41 | 0.7857 | -658.0 | -580.9 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -20.77 | 152.91 | -46.57 | 121.82 | 0.8013 | 75.0 | 61.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
