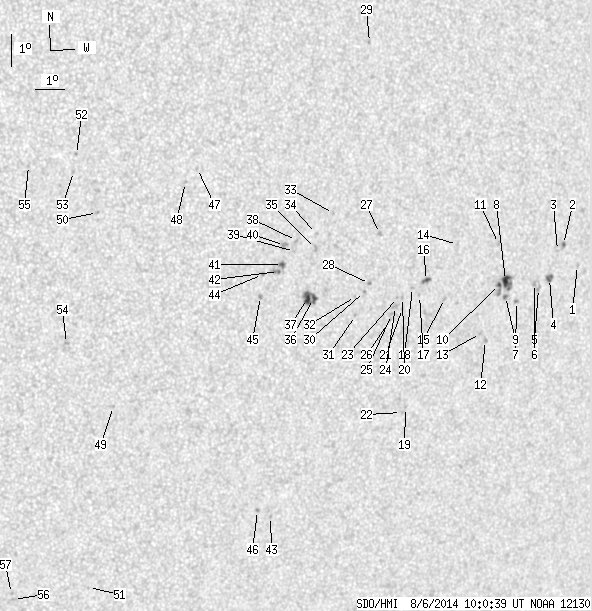

SDO HMI 2014-08-06 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.52 | 125.44 | 13.64 | 75.08 | -7.86 | 229.68 | 30.75 | 245.50 | 0.5578 | 395.9 | 419.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.65 | -7.43 | 236.92 | 37.99 | 250.83 | 0.6485 | 516.0 | 410.0 | |
| 0.63 | 1.90 | 0.41 | 1.22 | -6.74 | 236.31 | 37.38 | 251.56 | 0.6378 | 606.3 | 520.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -6.91 | 236.10 | 37.17 | 251.20 | 0.6358 | 656.0 | 535.0 | |
| 2.62 | 5.52 | 1.68 | 3.54 | -7.77 | 235.87 | 36.94 | 249.80 | 0.6368 | 741.0 | 498.5 | |
| 0.00 | 3.17 | 0.00 | 2.02 | -8.06 | 235.48 | 36.55 | 249.17 | 0.6331 | 606.0 | 482.3 | |
| 0.00 | 2.44 | 0.00 | 1.55 | -7.89 | 235.31 | 36.38 | 249.32 | 0.6302 | 809.0 | 645.2 | |
| 0.00 | 1.99 | 0.00 | 1.26 | -8.41 | 234.68 | 35.75 | 248.19 | 0.6247 | 699.0 | 566.3 | |
| 5.25 | 17.72 | 3.29 | 11.12 | -7.72 | 234.19 | 35.26 | 248.96 | 0.6152 | 905.5 | 681.2 | |
| 0.63 | 2.17 | 0.40 | 1.37 | -8.22 | 234.24 | 35.31 | 248.22 | 0.6183 | 826.6 | 700.8 | |
| 1.27 | -8.00 | 0.79 | -8.00 | -7.83 | 233.98 | 35.05 | 248.66 | 0.6129 | 978.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -6.54 | 233.83 | 34.90 | 250.58 | 0.6049 | 795.0 | 635.7 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -9.57 | 233.64 | 34.70 | 245.83 | 0.6176 | 661.0 | 586.1 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -9.33 | 233.42 | 34.49 | 246.05 | 0.6136 | 694.0 | 578.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -6.48 | 232.30 | 33.37 | 249.82 | 0.5845 | -509.0 | -460.0 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -8.14 | 231.96 | 33.03 | 246.95 | 0.5886 | 540.0 | 495.3 | |
| 1.99 | 4.88 | 1.20 | 2.95 | -7.54 | 231.25 | 32.32 | 247.46 | 0.5760 | 821.9 | 670.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -7.99 | 231.04 | 32.11 | 246.58 | 0.5757 | 764.0 | 567.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -7.73 | 230.76 | 31.83 | 246.83 | 0.5706 | 755.0 | 554.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -11.52 | 230.90 | 31.97 | 241.01 | 0.5953 | 716.0 | 598.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.02 | 230.42 | 31.49 | 246.12 | 0.5678 | 760.0 | 665.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.37 | 230.45 | 31.52 | 245.58 | 0.5702 | 578.0 | 576.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -11.67 | 230.78 | 31.84 | 240.69 | 0.5948 | 532.0 | 467.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.01 | 230.24 | 31.31 | 246.01 | 0.5654 | 833.0 | 627.7 | |
| 0.00 | 4.07 | 0.00 | 2.44 | -8.29 | 230.20 | 31.26 | 245.52 | 0.5664 | 760.0 | 666.6 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -8.53 | 230.07 | 31.14 | 245.04 | 0.5662 | 711.0 | 479.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -8.69 | 230.05 | 31.12 | 244.77 | 0.5669 | 571.0 | 432.0 | |
| 0.00 | 2.53 | 0.00 | 1.49 | -5.97 | 229.45 | 30.52 | 248.89 | 0.5435 | 746.0 | 605.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.51 | 229.20 | 30.27 | 246.09 | 0.5487 | 867.0 | 682.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -0.06 | 228.92 | 29.99 | 259.40 | 0.5105 | -795.0 | -622.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.75 | 229.04 | 30.11 | 245.57 | 0.5480 | 846.0 | 693.6 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -8.49 | 228.78 | 29.85 | 244.15 | 0.5491 | -617.0 | -461.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.89 | 228.73 | 29.80 | 245.11 | 0.5448 | 594.0 | 369.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -5.26 | 227.79 | 28.86 | 249.02 | 0.5168 | 596.0 | 409.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -5.85 | 227.23 | 28.30 | 247.54 | 0.5123 | 691.0 | 544.1 | |
| 0.00 | 2.62 | 0.00 | 1.51 | -6.31 | 227.22 | 28.29 | 246.70 | 0.5149 | 736.0 | 667.2 | |
| 2.71 | 14.92 | 1.58 | 8.66 | -7.87 | 227.25 | 28.32 | 243.98 | 0.5250 | 684.7 | 659.7 | |
| 5.79 | -36.00 | 3.36 | -36.00 | -7.86 | 227.04 | 28.11 | 243.82 | 0.5221 | 936.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -6.03 | 226.55 | 27.61 | 246.69 | 0.5039 | 651.0 | 580.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -6.37 | 226.49 | 27.56 | 246.03 | 0.5053 | 650.0 | 575.8 | |
| 0.00 | 4.34 | 0.00 | 2.48 | -6.16 | 226.14 | 27.21 | 246.12 | 0.4991 | 863.0 | 730.3 | |
| 1.27 | 3.35 | 0.72 | 1.91 | -6.75 | 226.10 | 27.17 | 245.01 | 0.5023 | 963.0 | 775.0 | |
| 0.36 | 3.80 | 0.21 | 2.17 | -6.96 | 225.98 | 27.05 | 244.52 | 0.5020 | 785.5 | 731.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -14.77 | 226.47 | 27.54 | 232.32 | 0.5670 | -653.0 | -563.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -7.03 | 225.43 | 26.50 | 243.93 | 0.4950 | 766.0 | 696.2 | |
| 0.00 | 2.08 | 0.00 | 1.19 | -7.72 | 225.41 | 26.48 | 242.67 | 0.4993 | 810.0 | 680.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -14.55 | 225.98 | 27.05 | 232.15 | 0.5595 | -802.0 | -681.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -3.63 | 223.09 | 24.15 | 248.56 | 0.4405 | -774.0 | -514.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -4.05 | 222.70 | 23.76 | 247.35 | 0.4374 | -654.0 | -484.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -10.97 | 220.67 | 21.74 | 231.75 | 0.4649 | -755.0 | -583.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -4.85 | 219.82 | 20.88 | 242.67 | 0.4015 | -729.0 | -583.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -16.81 | 220.40 | 21.46 | 222.47 | 0.5209 | -522.0 | -448.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -3.03 | 219.09 | 20.16 | 246.06 | 0.3781 | -845.0 | -689.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -3.55 | 219.00 | 20.07 | 244.71 | 0.3804 | -814.0 | -617.8 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -8.90 | 218.98 | 20.05 | 233.23 | 0.4246 | -753.0 | -551.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -3.31 | 217.54 | 18.61 | 243.54 | 0.3574 | -699.0 | -533.2 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -17.10 | 217.89 | 18.95 | 218.59 | 0.4997 | -61.0 | -145.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -16.90 | 217.80 | 18.87 | 218.72 | 0.4966 | -465.0 | -504.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
