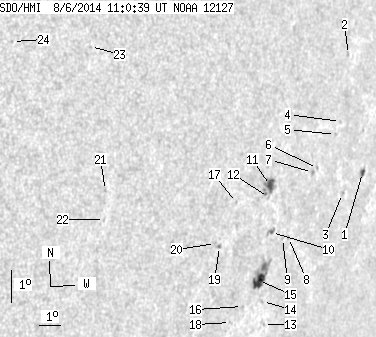

SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.08 | 71.54 | 15.86 | 58.90 | -8.09 | 249.52 | 51.14 | 255.01 | 0.7998 | 10.2 | 198.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 3.44 | 1.57 | 3.14 | -6.72 | 254.20 | 55.82 | 257.91 | 0.8423 | 603.8 | 429.6 | |
| 0.00 | 0.90 | 0.00 | 0.79 | -2.96 | 252.99 | 54.60 | 262.08 | 0.8241 | 650.0 | 559.0 | |
| 0.00 | 1.99 | 0.00 | 1.78 | -7.28 | 253.21 | 54.83 | 257.01 | 0.8343 | 237.0 | 235.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -5.01 | 252.76 | 54.38 | 259.59 | 0.8255 | 326.0 | 265.3 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -5.39 | 252.55 | 54.17 | 259.08 | 0.8242 | 453.0 | 400.7 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -6.37 | 251.75 | 53.37 | 257.71 | 0.8184 | 451.0 | 398.8 | |
| 0.00 | 1.90 | 0.00 | 1.62 | -6.48 | 251.51 | 53.12 | 257.52 | 0.8162 | 637.0 | 572.0 | |
| 0.00 | 1.54 | 0.00 | 1.30 | -8.42 | 250.62 | 52.24 | 254.94 | 0.8120 | 353.0 | 265.8 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -8.43 | 250.32 | 51.93 | 254.84 | 0.8091 | 400.0 | 342.0 | |
| 0.63 | 4.34 | 0.52 | 3.58 | -8.19 | 249.73 | 51.34 | 254.95 | 0.8026 | 619.9 | 402.1 | |
| 5.61 | 14.47 | 4.57 | 11.77 | -6.70 | 249.43 | 51.05 | 256.69 | 0.7959 | 717.7 | 631.2 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -7.07 | 249.39 | 51.01 | 256.22 | 0.7964 | 461.0 | 414.7 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -11.10 | 249.95 | 51.57 | 251.54 | 0.8126 | -448.0 | -370.7 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -10.36 | 249.72 | 51.34 | 252.35 | 0.8083 | -365.0 | -347.9 | |
| 11.12 | 27.85 | 9.20 | 23.06 | -9.66 | 249.37 | 50.99 | 253.06 | 0.8029 | -661.4 | -14.9 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -10.43 | 248.75 | 50.37 | 251.93 | 0.7989 | -207.0 | -360.4 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -7.10 | 247.85 | 49.47 | 255.74 | 0.7805 | 501.0 | 418.1 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -10.89 | 248.27 | 49.89 | 251.21 | 0.7956 | -588.0 | -456.4 | |
| 0.00 | 1.81 | 0.00 | 1.42 | -8.42 | 247.26 | 48.88 | 253.90 | 0.7779 | 564.0 | 496.2 | |
| 0.00 | 0.99 | 0.00 | 0.78 | -8.31 | 247.05 | 48.67 | 253.97 | 0.7754 | 672.0 | 516.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -6.25 | 241.89 | 43.51 | 254.86 | 0.7113 | -617.0 | -521.8 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -7.15 | 241.95 | 43.57 | 253.65 | 0.7150 | -479.0 | -420.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -1.73 | 240.97 | 42.59 | 260.87 | 0.6874 | -445.0 | -363.7 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -1.35 | 237.81 | 39.43 | 260.52 | 0.6460 | -657.0 | -474.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
