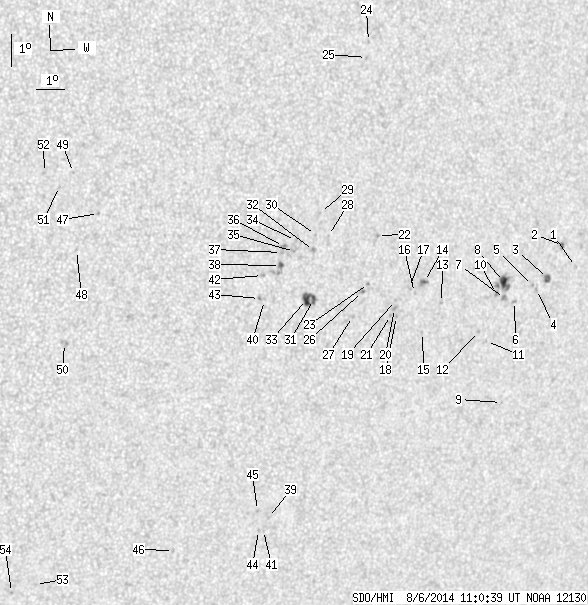

SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.07 | 116.38 | 12.23 | 69.85 | -7.86 | 229.42 | 31.04 | 245.69 | 0.5614 | 376.1 | 401.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.77 | -7.44 | 236.96 | 38.58 | 251.10 | 0.6558 | 592.0 | 426.5 | |
| 0.90 | 2.89 | 0.59 | 1.87 | -6.75 | 236.38 | 38.00 | 251.84 | 0.6457 | 612.1 | 458.4 | |
| 2.80 | 4.97 | 1.81 | 3.21 | -7.74 | 235.90 | 37.52 | 250.14 | 0.6439 | 714.3 | 499.3 | |
| 0.00 | 1.72 | 0.00 | 1.11 | -8.06 | 235.51 | 37.12 | 249.46 | 0.6404 | 636.0 | 511.2 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -7.93 | 235.34 | 36.95 | 249.58 | 0.6376 | 799.0 | 693.5 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -8.38 | 234.69 | 36.31 | 248.55 | 0.6317 | 708.0 | 535.0 | |
| 0.00 | 3.44 | 0.00 | 2.18 | -8.26 | 234.30 | 35.92 | 248.51 | 0.6262 | 805.0 | 682.1 | |
| 5.43 | 15.64 | 3.43 | 9.88 | -7.73 | 234.21 | 35.83 | 249.27 | 0.6224 | 914.9 | 665.6 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -11.57 | 234.60 | 36.22 | 243.88 | 0.6470 | 248.0 | 332.0 | |
| 0.00 | 2.62 | 0.00 | 1.65 | -8.09 | 233.98 | 35.60 | 248.59 | 0.6212 | 847.0 | 729.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -9.58 | 233.76 | 35.38 | 246.23 | 0.6261 | 697.0 | 587.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -9.24 | 233.42 | 35.04 | 246.53 | 0.6201 | 757.0 | 665.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -8.24 | 231.94 | 33.55 | 247.14 | 0.5959 | 578.0 | 477.6 | |
| 0.63 | 4.88 | 0.39 | 2.97 | -7.54 | 231.25 | 32.87 | 247.81 | 0.5832 | 854.3 | 707.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -9.14 | 231.33 | 32.94 | 245.33 | 0.5930 | 560.0 | 572.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -7.86 | 230.91 | 32.53 | 247.07 | 0.5805 | 413.0 | 534.8 | |
| 0.00 | 2.17 | 0.00 | 1.31 | -7.69 | 230.71 | 32.33 | 247.21 | 0.5770 | 318.0 | 329.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.58 | 230.32 | 31.94 | 245.53 | 0.5769 | 653.0 | 595.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.07 | 230.24 | 31.86 | 246.29 | 0.5729 | 809.0 | 641.8 | |
| 0.00 | 2.08 | 0.00 | 1.26 | -8.32 | 230.22 | 31.84 | 245.87 | 0.5741 | 880.0 | 795.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.54 | 230.10 | 31.72 | 245.45 | 0.5737 | 784.0 | 602.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -6.00 | 229.44 | 31.05 | 249.19 | 0.5509 | 815.0 | 673.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -7.48 | 229.22 | 30.83 | 246.55 | 0.5561 | 791.0 | 675.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 0.00 | 228.93 | 30.55 | 259.74 | 0.5186 | -703.0 | -622.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -0.48 | 228.86 | 30.48 | 258.80 | 0.5191 | -433.0 | -338.6 | |
| 0.00 | 2.53 | 0.00 | 1.51 | -7.72 | 229.02 | 30.64 | 246.01 | 0.5549 | 878.0 | 747.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -8.49 | 228.73 | 30.35 | 244.53 | 0.5556 | -510.0 | -492.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.90 | 227.69 | 29.31 | 248.18 | 0.5266 | 492.0 | 380.0 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -5.17 | 227.37 | 28.99 | 249.27 | 0.5182 | 564.0 | 519.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -5.85 | 227.23 | 28.85 | 247.95 | 0.5200 | 710.0 | 609.5 | |
| 2.44 | 14.02 | 1.43 | 8.18 | -7.88 | 227.30 | 28.92 | 244.45 | 0.5329 | 664.2 | 626.8 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -6.34 | 227.19 | 28.81 | 247.04 | 0.5222 | 823.0 | 695.0 | |
| 6.51 | -31.00 | 3.80 | -31.00 | -7.86 | 227.05 | 28.67 | 244.28 | 0.5296 | 936.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -6.00 | 226.55 | 28.16 | 247.17 | 0.5113 | 666.0 | 625.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -6.34 | 226.53 | 28.15 | 246.55 | 0.5131 | 696.0 | 500.1 | |
| 0.00 | 2.62 | 0.00 | 1.50 | -6.16 | 226.14 | 27.76 | 246.56 | 0.5067 | 886.0 | 796.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -6.34 | 226.08 | 27.70 | 246.18 | 0.5070 | 778.0 | 672.3 | |
| 1.36 | 7.96 | 0.78 | 4.57 | -6.75 | 226.07 | 27.69 | 245.44 | 0.5093 | 945.1 | 678.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -14.77 | 226.45 | 28.07 | 232.85 | 0.5730 | -661.0 | -563.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -7.82 | 225.59 | 27.20 | 243.14 | 0.5097 | 346.0 | 448.7 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -15.19 | 226.33 | 27.95 | 232.14 | 0.5750 | -376.0 | -429.8 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -7.03 | 225.47 | 27.08 | 244.44 | 0.5029 | 741.0 | 627.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -7.74 | 225.41 | 27.03 | 243.11 | 0.5068 | 775.0 | 676.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -15.18 | 226.15 | 27.77 | 231.98 | 0.5729 | -565.0 | -415.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -14.52 | 226.02 | 27.64 | 232.80 | 0.5660 | -789.0 | -702.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.68 | 223.22 | 24.84 | 228.16 | 0.5450 | -597.0 | -467.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -4.84 | 219.86 | 21.47 | 243.35 | 0.4098 | -762.0 | -678.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -5.96 | 219.17 | 20.79 | 240.14 | 0.4088 | -675.0 | -481.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -3.54 | 219.00 | 20.62 | 245.35 | 0.3884 | -725.0 | -603.4 | |
| 0.00 | 4.79 | 0.00 | 2.63 | -8.86 | 218.92 | 20.54 | 233.98 | 0.4304 | -250.0 | -371.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -3.96 | 218.56 | 20.17 | 243.88 | 0.3848 | -505.0 | -445.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -3.51 | 218.06 | 19.68 | 244.37 | 0.3744 | -823.0 | -682.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.59 | 218.60 | 20.21 | 221.07 | 0.5061 | -613.0 | -503.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -16.82 | 217.81 | 19.43 | 219.65 | 0.5010 | -626.0 | -555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
