SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 22.49 | 1.69 | 16.90 | -20.38 | 156.97 | -41.41 | 124.21 | 0.7520 | 235.9 | 123.3 | |
|
previous
or next observation for the same group /

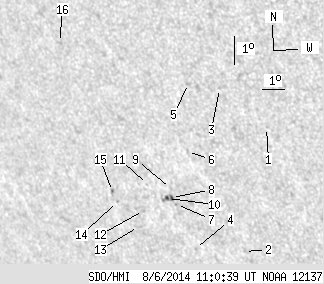

back to the solar disc SDO HMI 2014-08-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.43 | -18.50 | 162.15 | -36.24 | 125.32 | 0.6893 | 556.0 | 521.9 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -22.84 | 159.98 | -38.40 | 128.98 | 0.7387 | 592.0 | 506.6 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -17.31 | 160.55 | -37.83 | 122.74 | 0.6984 | 633.0 | 447.9 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -22.89 | 157.86 | -40.52 | 127.64 | 0.7582 | 452.0 | 335.9 | |
| 0.00 | 1.81 | 0.00 | 1.27 | -17.23 | 159.31 | -39.08 | 121.84 | 0.7110 | 278.0 | 315.7 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -19.54 | 158.63 | -39.75 | 124.23 | 0.7312 | 612.0 | 458.6 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -21.41 | 157.56 | -40.82 | 125.75 | 0.7522 | 638.0 | 556.9 | |
| 1.09 | 6.15 | 0.81 | 4.62 | -21.18 | 157.42 | -40.96 | 125.41 | 0.7522 | 587.8 | 393.3 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -20.87 | 157.48 | -40.90 | 125.08 | 0.7499 | 560.0 | 426.9 | |
| 1.18 | -8.00 | 0.88 | -8.00 | -21.23 | 157.23 | -41.15 | 125.34 | 0.7543 | 434.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -20.81 | 156.50 | -41.88 | 124.42 | 0.7587 | 260.0 | 289.7 | |
| 0.00 | 1.63 | 0.00 | 1.26 | -21.73 | 156.00 | -42.38 | 125.18 | 0.7684 | -260.0 | -258.7 | |
| 0.00 | 1.99 | 0.00 | 1.55 | -22.31 | 155.56 | -42.83 | 125.58 | 0.7755 | -223.0 | -236.5 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -21.50 | 154.92 | -43.47 | 124.30 | 0.7771 | -607.0 | -541.6 | |
| 0.00 | 1.81 | 0.00 | 1.42 | -21.17 | 154.81 | -43.57 | 123.87 | 0.7763 | -702.0 | -576.1 | |
| 0.00 | 2.35 | 0.00 | 1.78 | -16.28 | 154.06 | -44.32 | 117.70 | 0.7598 | 53.0 | 108.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
