SDO HMI 2014-08-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.06 | 0.00 | 3.11 | 6.09 | 211.20 | 13.36 | 271.48 | 0.2329 | -369.8 | -315.7 | |
|
previous
or next observation for the same group /

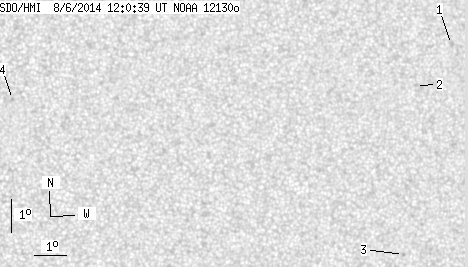

back to the solar disc SDO HMI 2014-08-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.22 | 7.88 | 214.93 | 17.09 | 276.88 | 0.2946 | -663.0 | -564.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 6.67 | 213.73 | 15.89 | 272.82 | 0.2735 | -799.0 | -647.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 1.54 | 213.24 | 15.40 | 253.98 | 0.2775 | -853.0 | -659.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.48 | 201.19 | 3.36 | 276.13 | 0.0588 | 836.0 | 654.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
