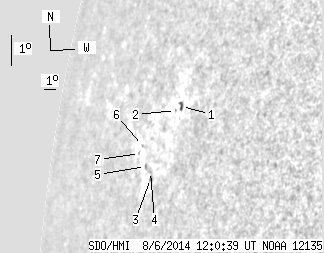

SDO HMI 2014-08-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 10.57 | 1.89 | 15.78 | 10.75 | 126.48 | -71.35 | 80.72 | 0.9444 | 117.6 | 135.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 3.25 | 1.89 | 4.53 | 12.09 | 127.91 | -69.92 | 79.37 | 0.9359 | -339.7 | -297.9 | |
| 0.00 | 0.81 | 0.00 | 1.15 | 11.92 | 127.45 | -70.38 | 79.53 | 0.9387 | 7.0 | -28.4 | |
| 0.00 | 1.99 | 0.00 | 3.00 | 9.70 | 126.28 | -71.55 | 81.84 | 0.9460 | 385.0 | 273.6 | |
| 0.00 | 1.45 | 0.00 | 2.20 | 9.90 | 126.17 | -71.66 | 81.61 | 0.9466 | 288.0 | 255.9 | |
| 0.00 | 1.36 | 0.00 | 2.12 | 10.00 | 125.62 | -72.22 | 81.48 | 0.9496 | 294.0 | 264.8 | |
| 0.00 | 0.99 | 0.00 | 1.60 | 10.59 | 124.96 | -72.87 | 80.83 | 0.9529 | 392.0 | 357.0 | |
| 0.00 | 0.72 | 0.00 | 1.18 | 10.32 | 124.80 | -73.03 | 81.09 | 0.9538 | 204.0 | 155.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
