SDO HMI 2014-08-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.07 | 69.78 | 17.08 | 58.75 | -8.15 | 249.37 | 52.09 | 255.22 | 0.8094 | -7.2 | 178.0 | |
|
previous
or next observation for the same group /

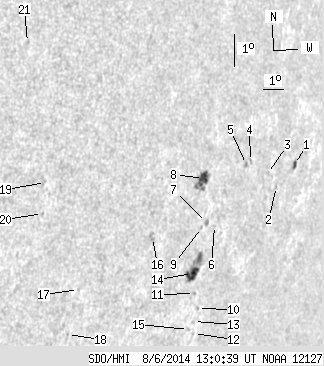

back to the solar disc SDO HMI 2014-08-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 3.25 | 1.70 | 3.07 | -6.70 | 254.25 | 56.97 | 258.20 | 0.8527 | 569.0 | 413.5 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -7.30 | 253.36 | 56.08 | 257.29 | 0.8458 | 386.0 | 247.5 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -6.85 | 252.78 | 55.50 | 257.68 | 0.8396 | 186.0 | 268.5 | |
| 0.00 | 1.72 | 0.00 | 1.52 | -6.38 | 251.79 | 54.51 | 257.98 | 0.8294 | 401.0 | 366.2 | |
| 0.00 | 2.17 | 0.00 | 1.90 | -6.46 | 251.59 | 54.31 | 257.84 | 0.8277 | 624.0 | 488.5 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -8.24 | 250.24 | 52.96 | 255.37 | 0.8186 | 227.0 | 229.0 | |
| 0.00 | 2.89 | 0.00 | 2.46 | -8.11 | 249.80 | 52.52 | 255.40 | 0.8140 | 689.0 | 449.8 | |
| 8.59 | 17.36 | 7.17 | 14.47 | -6.70 | 249.41 | 52.13 | 256.99 | 0.8069 | 712.6 | 569.7 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -8.24 | 249.57 | 52.29 | 255.17 | 0.8121 | 356.0 | 364.8 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -10.82 | 249.93 | 52.65 | 252.22 | 0.8222 | -279.0 | -232.1 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -10.32 | 249.66 | 52.38 | 252.72 | 0.8182 | -493.0 | -374.1 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -11.61 | 249.94 | 52.65 | 251.30 | 0.8243 | -277.0 | -222.5 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -11.22 | 249.83 | 52.55 | 251.72 | 0.8223 | -518.0 | -433.5 | |
| 9.67 | 22.42 | 8.21 | 19.04 | -9.67 | 249.41 | 52.13 | 253.42 | 0.8141 | -661.6 | 3.8 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -11.46 | 249.64 | 52.36 | 251.38 | 0.8211 | -537.0 | -514.1 | |
| 0.00 | 4.61 | 0.00 | 3.69 | -8.35 | 247.18 | 49.90 | 254.31 | 0.7883 | 581.0 | 542.7 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -9.72 | 243.98 | 46.70 | 251.50 | 0.7587 | -368.0 | -305.3 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -11.12 | 243.76 | 46.48 | 249.64 | 0.7611 | -418.0 | -374.0 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -6.22 | 242.02 | 44.74 | 255.33 | 0.7256 | -428.0 | -467.1 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -7.18 | 242.00 | 44.72 | 254.04 | 0.7284 | -496.0 | -425.6 | |
| 0.00 | 1.81 | 0.00 | 1.25 | -1.81 | 240.96 | 43.67 | 261.04 | 0.7010 | -533.0 | -381.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
