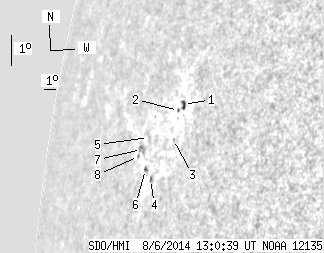

SDO HMI 2014-08-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 15.19 | 3.02 | 22.42 | 10.82 | 126.13 | -71.16 | 80.66 | 0.9433 | 41.9 | 150.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 3.62 | 2.20 | 4.90 | 12.18 | 127.96 | -69.32 | 79.30 | 0.9323 | -379.9 | -331.3 | |
| 0.00 | 1.08 | 0.00 | 1.49 | 11.96 | 127.63 | -69.65 | 79.52 | 0.9343 | -44.0 | -102.3 | |
| 0.00 | 0.63 | 0.00 | 0.87 | 11.07 | 127.67 | -69.61 | 80.48 | 0.9343 | -172.0 | -103.9 | |
| 0.00 | 1.81 | 0.00 | 2.66 | 9.68 | 126.24 | -71.04 | 81.88 | 0.9431 | 345.0 | 277.5 | |
| 0.00 | 1.08 | 0.00 | 1.66 | 10.90 | 125.38 | -71.90 | 80.55 | 0.9476 | 324.0 | 275.7 | |
| 0.54 | 1.72 | 0.82 | 2.60 | 9.93 | 125.63 | -71.66 | 81.58 | 0.9465 | 325.0 | 258.1 | |
| 0.00 | 3.98 | 0.00 | 6.23 | 10.48 | 124.91 | -72.37 | 80.97 | 0.9503 | 295.0 | 334.0 | |
| 0.00 | 1.27 | 0.00 | 2.01 | 10.24 | 124.74 | -72.54 | 81.20 | 0.9513 | 199.0 | 160.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
