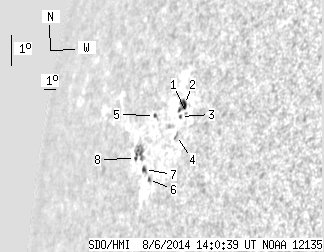

SDO HMI 2014-08-06 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.42 | 31.18 | 7.60 | 44.65 | 10.89 | 126.14 | -70.59 | 80.61 | 0.9399 | -107.6 | 120.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 1.29 | 11.97 | 128.41 | -68.32 | 79.56 | 0.9260 | -369.0 | -404.0 | |
| 2.53 | 7.95 | 3.33 | 10.52 | 12.22 | 128.10 | -68.63 | 79.28 | 0.9279 | -421.5 | -257.9 | |
| 0.00 | 1.36 | 0.00 | 1.80 | 11.83 | 127.97 | -68.76 | 79.69 | 0.9288 | -228.0 | -137.7 | |
| 0.00 | 2.08 | 0.00 | 2.76 | 11.24 | 127.93 | -68.80 | 80.33 | 0.9292 | -44.0 | -25.3 | |
| 0.54 | 1.81 | 0.79 | 2.64 | 11.64 | 125.69 | -71.03 | 79.81 | 0.9426 | -204.3 | -141.4 | |
| 0.54 | 1.81 | 0.78 | 2.60 | 9.70 | 126.17 | -70.56 | 81.89 | 0.9403 | 395.7 | 325.1 | |
| 1.36 | 2.62 | 2.00 | 3.87 | 9.96 | 125.66 | -71.07 | 81.59 | 0.9432 | 351.5 | 278.9 | |
| 0.45 | 12.56 | 0.70 | 19.17 | 10.20 | 124.64 | -72.09 | 81.28 | 0.9488 | 77.0 | 340.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
