SDO HMI 2014-08-06 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.65 | 402.00 | 31.31 | 216.54 | 9.76 | 173.18 | -23.00 | 79.36 | 0.3934 | 254.5 | 255.1 | |
|
previous
or next observation for the same group /

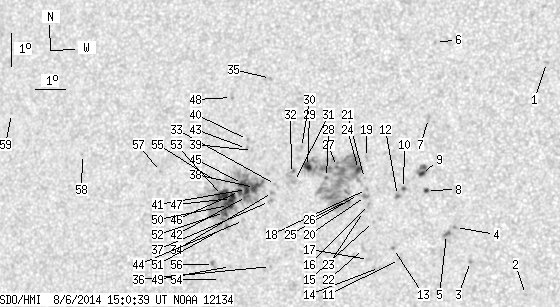

back to the solar disc SDO HMI 2014-08-06 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.93 | 13.78 | 181.11 | -15.07 | 61.59 | 0.2883 | -846.0 | -613.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 6.70 | 180.77 | -15.40 | 87.07 | 0.2653 | -825.0 | -673.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 7.65 | 178.98 | -17.19 | 83.95 | 0.2959 | -872.0 | -730.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.67 | 178.46 | -17.72 | 80.73 | 0.3062 | -945.0 | -782.0 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 8.45 | 178.18 | -18.00 | 81.55 | 0.3104 | -979.0 | -888.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.29 | 177.43 | -18.74 | 64.69 | 0.3459 | -804.0 | -643.2 | |
| 0.00 | 3.07 | 0.00 | 1.61 | 11.96 | 177.38 | -18.79 | 71.26 | 0.3342 | -736.0 | -668.4 | |
| 1.08 | 2.17 | 0.57 | 1.14 | 9.76 | 177.46 | -18.72 | 77.74 | 0.3250 | -880.3 | -750.2 | |
| 1.99 | 8.95 | 1.04 | 4.69 | 10.28 | 177.27 | -18.91 | 76.29 | 0.3297 | -1095.3 | -860.3 | |
| 0.72 | 1.72 | 0.38 | 0.90 | 9.80 | 176.71 | -19.47 | 78.00 | 0.3373 | -1060.6 | -917.6 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 7.64 | 176.69 | -19.49 | 84.44 | 0.3336 | -694.0 | -590.4 | |
| 0.00 | 3.34 | 0.00 | 1.76 | 9.58 | 176.52 | -19.65 | 78.73 | 0.3396 | -1031.0 | -860.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 7.96 | 176.48 | -19.70 | 83.51 | 0.3374 | -865.0 | -772.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 7.37 | 176.05 | -20.13 | 85.32 | 0.3439 | -729.0 | -542.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.76 | 175.78 | -20.39 | 81.36 | 0.3499 | -869.0 | -776.9 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 9.27 | 175.59 | -20.59 | 79.97 | 0.3539 | -842.0 | -727.2 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 7.60 | 175.68 | -20.50 | 84.70 | 0.3501 | -470.0 | -336.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 9.73 | 175.49 | -20.68 | 78.74 | 0.3565 | -721.0 | -559.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 10.70 | 175.43 | -20.75 | 76.08 | 0.3602 | -627.0 | -467.1 | |
| 0.00 | 3.34 | 0.00 | 1.77 | 9.51 | 175.47 | -20.70 | 79.34 | 0.3563 | -833.0 | -716.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.06 | 175.41 | -20.77 | 77.85 | 0.3587 | -778.0 | -656.7 | |
| 0.00 | 2.89 | 0.00 | 1.53 | 7.93 | 175.50 | -20.68 | 83.80 | 0.3533 | -573.0 | -466.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 9.05 | 175.44 | -20.74 | 80.64 | 0.3560 | -692.0 | -563.2 | |
| 2.89 | 172.07 | 1.54 | 91.85 | 10.32 | 175.19 | -20.99 | 77.22 | 0.3628 | -498.1 | 332.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.56 | 175.24 | -20.94 | 79.29 | 0.3601 | -571.0 | -388.9 | |
| 0.90 | -24.00 | 0.48 | -24.00 | 9.37 | 174.89 | -21.29 | 79.95 | 0.3653 | -850.1 | 999999 | |
| 0.36 | -24.00 | 0.19 | -24.00 | 10.39 | 174.46 | -21.72 | 77.37 | 0.3746 | 1139.2 | 999999 | |
| 0.45 | -24.00 | 0.24 | -24.00 | 10.04 | 174.15 | -22.03 | 78.41 | 0.3786 | 890.2 | 999999 | |
| 4.88 | -24.00 | 2.62 | -24.00 | 10.35 | 173.49 | -22.69 | 77.87 | 0.3897 | 1068.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.92 | 173.24 | -22.93 | 76.53 | 0.3951 | 706.0 | 614.1 | |
| 0.00 | 2.89 | 0.00 | 1.56 | 9.88 | 173.09 | -23.09 | 79.21 | 0.3949 | 264.0 | 241.3 | |
| 0.00 | 4.34 | 0.00 | 2.34 | 10.12 | 172.97 | -23.21 | 78.65 | 0.3973 | 721.0 | 851.4 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 9.76 | 172.46 | -23.72 | 79.70 | 0.4046 | 851.0 | 695.2 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 9.51 | 172.38 | -23.80 | 80.33 | 0.4054 | 1064.0 | 831.8 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 12.98 | 172.00 | -24.17 | 72.18 | 0.4209 | 858.0 | 613.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 7.26 | 172.45 | -23.72 | 85.91 | 0.4018 | 543.0 | 406.9 | |
| 0.00 | 2.71 | 0.00 | 1.47 | 9.24 | 172.29 | -23.88 | 81.04 | 0.4063 | 713.0 | 634.4 | |
| 5.42 | 141.44 | 2.95 | 77.39 | 9.64 | 171.76 | -24.42 | 80.19 | 0.4153 | 1088.6 | 467.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 10.76 | 171.60 | -24.58 | 77.57 | 0.4202 | 447.0 | 454.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 11.09 | 171.40 | -24.78 | 76.87 | 0.4241 | 704.0 | 511.2 | |
| 4.52 | -38.00 | 2.46 | -38.00 | 9.57 | 171.49 | -24.68 | 80.43 | 0.4194 | 1100.1 | 999999 | |
| 1.99 | -38.00 | 1.08 | -38.00 | 9.35 | 171.51 | -24.67 | 80.94 | 0.4188 | 1083.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 10.81 | 171.39 | -24.79 | 77.52 | 0.4235 | 688.0 | 561.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 8.62 | 171.46 | -24.72 | 82.70 | 0.4186 | 551.0 | 467.9 | |
| 4.16 | -38.00 | 2.27 | -38.00 | 9.74 | 171.34 | -24.83 | 80.05 | 0.4220 | 896.1 | 999999 | |
| 2.44 | -38.00 | 1.33 | -38.00 | 9.50 | 171.26 | -24.92 | 80.66 | 0.4229 | 972.6 | 999999 | |
| 6.15 | -38.00 | 3.36 | -38.00 | 9.27 | 171.00 | -25.17 | 81.25 | 0.4265 | 1120.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 12.35 | 170.73 | -25.45 | 74.27 | 0.4379 | -725.0 | -483.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 7.20 | 171.11 | -25.07 | 86.11 | 0.4231 | 792.0 | 617.6 | |
| 5.51 | -38.00 | 3.02 | -38.00 | 9.05 | 170.92 | -25.26 | 81.77 | 0.4275 | 978.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 8.41 | 170.90 | -25.28 | 83.28 | 0.4272 | 771.0 | 636.8 | |
| 3.71 | -38.00 | 2.03 | -38.00 | 8.84 | 170.80 | -25.38 | 82.31 | 0.4291 | 833.0 | 999999 | |
| 10.48 | -38.00 | 5.75 | -38.00 | 9.35 | 170.69 | -25.49 | 81.13 | 0.4315 | 832.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 6.79 | 170.79 | -25.38 | 87.09 | 0.4280 | 632.0 | 459.1 | |
| 0.00 | 4.34 | 0.00 | 2.39 | 9.77 | 170.45 | -25.72 | 80.23 | 0.4358 | 26.0 | 86.6 | |
| 0.00 | 3.89 | 0.00 | 2.13 | 7.24 | 170.53 | -25.65 | 86.05 | 0.4322 | 808.0 | 688.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 9.98 | 168.50 | -27.68 | 80.20 | 0.4662 | 722.0 | 607.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 10.36 | 165.70 | -30.48 | 79.99 | 0.5087 | 637.0 | 545.4 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 11.47 | 162.98 | -33.20 | 78.42 | 0.5499 | 459.0 | 344.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
