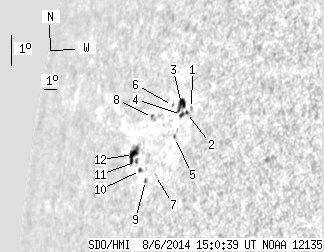

SDO HMI 2014-08-06 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.45 | 34.08 | 20.20 | 47.14 | 11.14 | 126.42 | -69.76 | 80.38 | 0.9349 | 3.0 | 10.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.57 | 12.20 | 128.92 | -67.26 | 79.34 | 0.9190 | -440.0 | -440.6 | |
| 0.54 | 4.25 | 0.68 | 5.40 | 12.04 | 128.59 | -67.59 | 79.50 | 0.9212 | -456.7 | -365.1 | |
| 5.06 | 8.04 | 6.51 | 10.35 | 12.24 | 128.06 | -68.11 | 79.27 | 0.9246 | -365.7 | -233.6 | |
| 0.99 | -2.00 | 1.27 | -2.00 | 11.94 | 128.22 | -67.95 | 79.60 | 0.9236 | -316.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.40 | 11.21 | 128.01 | -68.17 | 80.39 | 0.9252 | 11.0 | -17.8 | |
| 0.00 | 0.99 | 0.00 | 1.32 | 12.14 | 127.35 | -68.83 | 79.36 | 0.9292 | 55.0 | 91.1 | |
| 0.00 | 0.27 | 0.00 | 0.37 | 9.93 | 126.98 | -69.19 | 81.72 | 0.9320 | 293.0 | 267.0 | |
| 0.00 | 2.89 | 0.00 | 4.10 | 11.61 | 125.84 | -70.34 | 79.86 | 0.9385 | -386.0 | -189.7 | |
| 0.00 | 1.36 | 0.00 | 1.90 | 9.70 | 126.19 | -69.98 | 81.93 | 0.9369 | 428.0 | 397.1 | |
| 0.81 | 1.63 | 1.17 | 2.35 | 9.95 | 125.61 | -70.57 | 81.63 | 0.9403 | 383.3 | 304.8 | |
| 0.45 | 1.45 | 0.67 | 2.13 | 10.18 | 125.11 | -71.07 | 81.36 | 0.9432 | 491.0 | 449.7 | |
| 6.60 | 10.85 | 9.90 | 16.25 | 10.36 | 124.72 | -71.45 | 81.15 | 0.9453 | 245.7 | 307.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
