SDO HMI 2014-08-06 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.05 | 28.46 | 4.41 | 20.32 | -20.74 | 157.63 | -38.00 | 126.88 | 0.7207 | 283.5 | 231.6 | |
|
previous
or next observation for the same group /

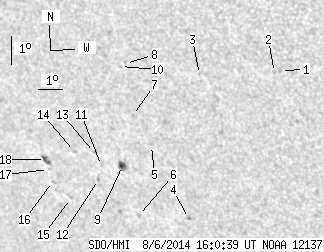

back to the solar disc SDO HMI 2014-08-06 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.09 | -17.52 | 164.88 | -30.74 | 128.45 | 0.6246 | 570.0 | 448.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -17.60 | 164.64 | -30.98 | 128.34 | 0.6278 | 621.0 | 525.2 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -17.84 | 161.75 | -33.87 | 126.26 | 0.6602 | 452.0 | 430.5 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -22.81 | 160.02 | -35.60 | 130.96 | 0.7128 | 645.0 | 577.9 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -20.37 | 159.23 | -36.39 | 127.51 | 0.7034 | 534.0 | 396.4 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -22.85 | 157.95 | -37.67 | 129.49 | 0.7321 | 472.0 | 343.5 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -19.40 | 158.73 | -36.89 | 125.97 | 0.7019 | 697.0 | 535.6 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -17.66 | 158.89 | -36.73 | 123.93 | 0.6891 | 525.0 | 505.2 | |
| 3.61 | 6.60 | 2.58 | 4.71 | -21.14 | 157.83 | -37.80 | 127.43 | 0.7221 | 730.1 | 555.8 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -17.77 | 158.67 | -36.96 | 123.91 | 0.6922 | 537.0 | 451.3 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -21.21 | 156.93 | -38.69 | 126.90 | 0.7310 | 474.0 | 275.9 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -21.70 | 156.65 | -38.98 | 127.29 | 0.7368 | 376.0 | 333.6 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -20.78 | 156.77 | -38.85 | 126.29 | 0.7299 | 574.0 | 472.9 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -20.80 | 155.92 | -39.70 | 125.76 | 0.7382 | 480.0 | 363.7 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -22.46 | 155.19 | -40.43 | 127.21 | 0.7548 | -650.0 | -493.0 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -21.92 | 154.60 | -41.02 | 126.23 | 0.7571 | -477.0 | -393.6 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -21.51 | 154.57 | -41.05 | 125.74 | 0.7550 | -630.0 | -491.7 | |
| 2.44 | 5.06 | 1.83 | 3.80 | -21.17 | 154.56 | -41.07 | 125.34 | 0.7532 | -708.6 | -595.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
