SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.47 | 32.96 | 12.15 | 34.09 | -20.38 | 251.43 | 56.36 | 242.74 | 0.8796 | 214.6 | 126.4 | |
|
previous
or next observation for the same group /

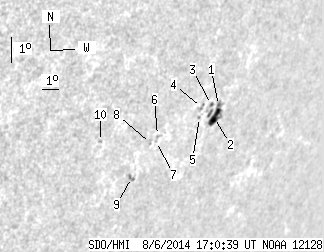

back to the solar disc SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 20.33 | 1.24 | 21.52 | -19.90 | 252.34 | 57.27 | 243.59 | 0.8851 | 337.2 | 163.9 | |
| 9.58 | -1.00 | 10.16 | -1.00 | -20.30 | 252.33 | 57.26 | 243.16 | 0.8861 | 305.8 | 999999 | |
| 0.72 | 1.63 | 0.75 | 1.69 | -19.82 | 251.88 | 56.81 | 243.51 | 0.8815 | 573.9 | 523.5 | |
| 0.00 | 3.43 | 0.00 | 3.52 | -19.87 | 251.31 | 56.25 | 243.26 | 0.8775 | 667.0 | 501.7 | |
| 0.00 | 0.99 | 0.00 | 1.02 | -20.21 | 251.38 | 56.32 | 242.92 | 0.8789 | 604.0 | 531.6 | |
| 0.00 | 0.81 | 0.00 | 0.79 | -20.61 | 249.19 | 54.12 | 241.68 | 0.8635 | -266.0 | -273.3 | |
| 0.00 | 0.99 | 0.00 | 0.97 | -20.81 | 249.25 | 54.18 | 241.48 | 0.8646 | -427.0 | -360.9 | |
| 0.00 | 0.63 | 0.00 | 0.62 | -20.85 | 248.93 | 53.86 | 241.32 | 0.8623 | -352.0 | -371.3 | |
| 0.00 | 2.98 | 0.00 | 2.90 | -21.96 | 248.47 | 53.40 | 239.94 | 0.8623 | -645.0 | -479.0 | |
| 0.00 | 1.17 | 0.00 | 1.06 | -20.53 | 246.09 | 51.02 | 240.51 | 0.8385 | 574.0 | 469.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
