SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.52 | 111.02 | 10.55 | 69.35 | -7.78 | 229.64 | 34.57 | 248.25 | 0.6059 | 421.9 | 366.2 | |
|
previous
or next observation for the same group /

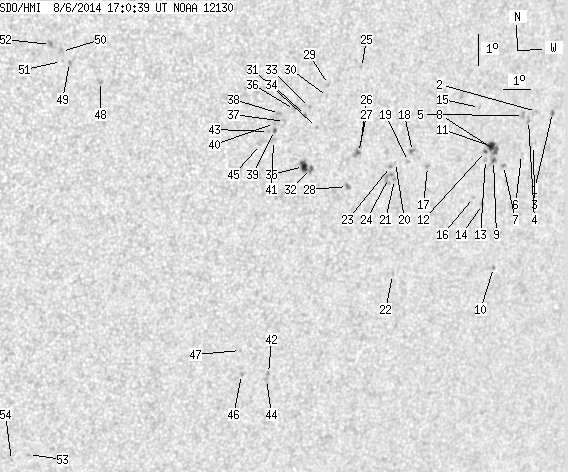

back to the solar disc SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.99 | 0.43 | 1.36 | -6.81 | 236.66 | 41.59 | 253.33 | 0.6904 | 528.7 | 425.5 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -6.73 | 236.00 | 40.93 | 253.17 | 0.6821 | 577.0 | 516.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -7.79 | 235.99 | 40.93 | 251.68 | 0.6860 | 490.0 | 526.7 | |
| 0.00 | 2.53 | 0.00 | 1.70 | -6.98 | 235.70 | 40.63 | 252.68 | 0.6794 | 629.0 | 605.3 | |
| 0.00 | 2.62 | 0.00 | 1.76 | -6.81 | 235.48 | 40.41 | 252.83 | 0.6760 | 832.0 | 617.4 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -8.03 | 235.54 | 40.47 | 251.13 | 0.6814 | 361.0 | 373.2 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -8.33 | 234.85 | 39.78 | 250.40 | 0.6743 | 734.0 | 595.5 | |
| 2.35 | 17.98 | 1.56 | 11.91 | -7.83 | 234.47 | 39.40 | 250.92 | 0.6676 | 688.8 | 581.8 | |
| 1.08 | -8.00 | 0.72 | -8.00 | -8.14 | 234.43 | 39.36 | 250.46 | 0.6684 | 699.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -11.55 | 234.91 | 39.84 | 245.99 | 0.6895 | 699.0 | 598.5 | |
| 4.34 | -8.00 | 2.87 | -8.00 | -7.69 | 234.29 | 39.23 | 251.04 | 0.6649 | 868.5 | 999999 | |
| 0.72 | -8.00 | 0.48 | -8.00 | -7.84 | 234.07 | 39.00 | 250.73 | 0.6628 | 909.6 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.49 | -8.09 | 234.10 | 39.03 | 250.38 | 0.6642 | 685.0 | 568.8 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -9.50 | 234.16 | 39.09 | 248.41 | 0.6711 | 754.0 | 629.5 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -6.44 | 233.70 | 38.63 | 252.58 | 0.6524 | 613.0 | 567.1 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -9.26 | 233.77 | 38.70 | 248.55 | 0.6653 | 721.0 | 618.9 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -8.15 | 231.84 | 36.78 | 249.13 | 0.6365 | 716.0 | 596.0 | |
| 0.00 | 2.71 | 0.00 | 1.72 | -7.64 | 231.22 | 36.15 | 249.56 | 0.6262 | 903.0 | 729.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -7.95 | 231.10 | 36.03 | 249.03 | 0.6261 | 874.0 | 674.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -7.94 | 230.60 | 35.53 | 248.76 | 0.6198 | 660.0 | 536.2 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -8.48 | 230.62 | 35.55 | 247.96 | 0.6226 | 713.0 | 555.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -11.50 | 230.92 | 35.86 | 243.74 | 0.6423 | 628.0 | 528.7 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -8.06 | 230.43 | 35.36 | 248.49 | 0.6181 | 928.0 | 711.4 | |
| 0.00 | 5.96 | 0.00 | 3.75 | -8.43 | 230.39 | 35.32 | 247.90 | 0.6195 | 556.0 | 664.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -4.89 | 229.10 | 34.03 | 252.74 | 0.5860 | -553.0 | -424.1 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -7.36 | 229.24 | 34.17 | 248.88 | 0.5993 | 672.0 | 559.4 | |
| 0.63 | 4.43 | 0.39 | 2.73 | -7.54 | 229.18 | 34.11 | 248.55 | 0.5995 | 852.3 | 734.3 | |
| 0.45 | 2.62 | 0.28 | 1.62 | -8.59 | 228.87 | 33.80 | 246.74 | 0.6009 | -739.4 | -583.9 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -5.35 | 227.91 | 32.84 | 251.35 | 0.5721 | 766.0 | 685.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -5.72 | 227.90 | 32.83 | 250.73 | 0.5737 | 492.0 | 439.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -6.66 | 227.56 | 32.50 | 248.98 | 0.5738 | 629.0 | 512.3 | |
| 0.99 | 10.57 | 0.60 | 6.40 | -7.94 | 227.49 | 32.42 | 246.87 | 0.5795 | 570.3 | 607.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -6.02 | 227.27 | 32.20 | 249.85 | 0.5666 | 768.0 | 660.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -6.26 | 227.14 | 32.07 | 249.37 | 0.5661 | 783.0 | 685.6 | |
| 4.79 | -32.00 | 2.90 | -32.00 | -7.86 | 227.19 | 32.12 | 246.80 | 0.5752 | 919.8 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.83 | -6.05 | 226.73 | 31.66 | 249.47 | 0.5595 | 669.0 | 619.0 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -6.41 | 226.39 | 31.32 | 248.66 | 0.5568 | 531.0 | 485.4 | |
| 0.00 | 2.08 | 0.00 | 1.23 | -6.15 | 226.19 | 31.13 | 248.97 | 0.5527 | 870.0 | 751.5 | |
| 0.54 | 1.81 | 0.32 | 1.07 | -6.67 | 226.05 | 30.98 | 248.00 | 0.5536 | 877.0 | 691.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -6.45 | 226.04 | 30.97 | 248.35 | 0.5522 | 929.0 | 737.5 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -6.98 | 226.04 | 30.97 | 247.46 | 0.5551 | 799.0 | 635.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -14.40 | 226.70 | 31.64 | 236.55 | 0.6111 | -695.0 | -571.1 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -6.69 | 225.84 | 30.77 | 247.82 | 0.5508 | 872.0 | 753.8 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -14.60 | 226.66 | 31.59 | 236.24 | 0.6120 | -663.0 | -609.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -7.08 | 225.58 | 30.51 | 246.98 | 0.5495 | 679.0 | 573.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -14.38 | 225.71 | 30.64 | 235.75 | 0.5995 | -724.0 | -667.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -13.59 | 225.56 | 30.49 | 236.74 | 0.5919 | -567.0 | -455.6 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -4.82 | 219.93 | 24.86 | 246.69 | 0.4579 | -603.0 | -550.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -4.19 | 218.86 | 23.80 | 247.06 | 0.4388 | -792.0 | -640.9 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -3.84 | 218.59 | 23.52 | 247.55 | 0.4326 | -756.0 | -568.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -4.15 | 218.60 | 23.53 | 246.90 | 0.4347 | -507.0 | -437.4 | |
| 0.00 | 3.07 | 0.00 | 1.68 | -3.60 | 218.22 | 23.15 | 247.72 | 0.4258 | -948.0 | -805.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -16.61 | 218.46 | 23.39 | 225.16 | 0.5387 | -571.0 | -513.8 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -16.78 | 217.90 | 22.83 | 224.23 | 0.5346 | -610.0 | -546.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
