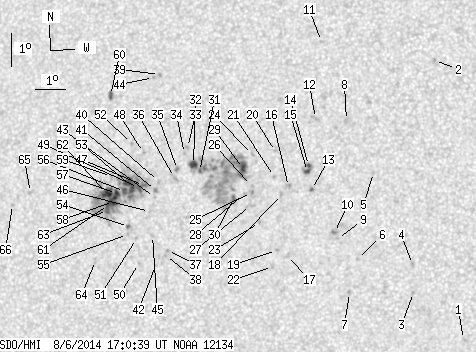

SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.99 | 396.53 | 31.77 | 211.96 | 9.77 | 173.19 | -21.88 | 78.97 | 0.3757 | 223.4 | 282.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.64 | 5.31 | 182.45 | -12.62 | 93.16 | 0.2189 | -733.0 | -537.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.79 | 181.20 | -13.87 | 59.70 | 0.2708 | -986.0 | -775.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.70 | 180.84 | -14.23 | 86.96 | 0.2455 | -945.0 | -718.7 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 7.55 | 180.79 | -14.28 | 83.51 | 0.2473 | -828.0 | -734.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.32 | 179.43 | -15.64 | 73.88 | 0.2773 | -783.0 | -519.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 7.66 | 179.03 | -16.03 | 83.64 | 0.2767 | -982.0 | -776.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.65 | 178.81 | -16.25 | 87.32 | 0.2796 | -962.0 | -769.9 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 11.88 | 178.47 | -16.60 | 69.55 | 0.2996 | -759.0 | -656.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 8.28 | 178.37 | -16.70 | 81.67 | 0.2887 | -838.0 | -715.8 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 8.46 | 178.26 | -16.80 | 81.09 | 0.2907 | -1114.0 | -947.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 14.27 | 177.49 | -17.58 | 63.47 | 0.3286 | -838.0 | -625.1 | |
| 0.00 | 3.79 | 0.00 | 1.98 | 11.91 | 177.46 | -17.61 | 70.41 | 0.3155 | -794.0 | -654.7 | |
| 0.54 | 1.45 | 0.28 | 0.75 | 9.74 | 177.46 | -17.61 | 77.21 | 0.3071 | -959.0 | -685.4 | |
| 1.26 | 7.77 | 0.66 | 4.05 | 10.47 | 177.32 | -17.74 | 74.98 | 0.3117 | -1014.6 | -830.1 | |
| 2.08 | -14.00 | 1.08 | -14.00 | 10.29 | 177.30 | -17.77 | 75.58 | 0.3114 | -1147.0 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.51 | 9.81 | 176.71 | -18.36 | 77.42 | 0.3194 | -941.0 | -833.9 | |
| 0.00 | 2.62 | 0.00 | 1.37 | 7.71 | 176.78 | -18.28 | 84.00 | 0.3140 | -687.0 | -639.4 | |
| 0.00 | 2.26 | 0.00 | 1.18 | 9.56 | 176.50 | -18.57 | 78.30 | 0.3221 | -973.0 | -648.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 7.85 | 176.42 | -18.65 | 83.63 | 0.3201 | -708.0 | -617.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.86 | 176.22 | -18.84 | 74.52 | 0.3306 | -667.0 | -610.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.10 | 176.24 | -18.83 | 76.79 | 0.3278 | -811.0 | -642.5 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 7.36 | 176.31 | -18.76 | 85.19 | 0.3214 | -808.0 | -613.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 8.69 | 175.83 | -19.24 | 81.24 | 0.3310 | -846.0 | -732.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 10.75 | 175.48 | -19.59 | 75.32 | 0.3420 | -590.0 | -450.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 9.59 | 175.52 | -19.55 | 78.67 | 0.3380 | -947.0 | -789.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 9.80 | 175.50 | -19.56 | 78.05 | 0.3387 | -749.0 | -629.6 | |
| 0.00 | 3.79 | 0.00 | 2.00 | 9.19 | 175.51 | -19.56 | 79.84 | 0.3372 | -896.0 | -642.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 9.55 | 175.29 | -19.78 | 78.88 | 0.3415 | -665.0 | -539.1 | |
| 4.07 | 150.71 | 2.14 | 79.83 | 10.31 | 175.21 | -19.86 | 76.72 | 0.3449 | -464.1 | 363.6 | |
| 1.17 | -29.00 | 0.62 | -29.00 | 9.39 | 174.94 | -20.13 | 79.50 | 0.3468 | -866.2 | 999999 | |
| 0.63 | -29.00 | 0.34 | -29.00 | 10.17 | 173.77 | -21.30 | 77.80 | 0.3674 | 957.3 | 999999 | |
| 4.52 | -29.00 | 2.41 | -29.00 | 10.37 | 173.55 | -21.51 | 77.34 | 0.3713 | 1081.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 10.88 | 173.32 | -21.75 | 76.10 | 0.3765 | 949.0 | 760.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.70 | 173.23 | -21.84 | 76.63 | 0.3773 | 845.0 | 622.9 | |
| 0.00 | 2.44 | 0.00 | 1.31 | 10.20 | 173.03 | -22.03 | 78.02 | 0.3791 | 1126.0 | 927.9 | |
| 0.00 | 4.43 | 0.00 | 2.37 | 9.95 | 172.95 | -22.12 | 78.70 | 0.3798 | 502.0 | 480.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 7.73 | 172.86 | -22.21 | 84.60 | 0.3779 | 935.0 | 701.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.57 | 172.80 | -22.27 | 85.02 | 0.3787 | 960.0 | 836.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 13.07 | 172.19 | -22.88 | 71.22 | 0.4017 | 869.0 | 711.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 9.81 | 172.43 | -22.64 | 79.25 | 0.3877 | 980.0 | 795.8 | |
| 0.00 | 2.44 | 0.00 | 1.31 | 9.53 | 172.35 | -22.72 | 79.99 | 0.3885 | 998.0 | 872.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 7.25 | 172.48 | -22.58 | 85.88 | 0.3836 | 796.0 | 638.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 9.32 | 172.33 | -22.74 | 80.54 | 0.3884 | 788.0 | 594.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 12.97 | 171.99 | -23.07 | 71.58 | 0.4043 | 760.0 | 602.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 8.16 | 172.33 | -22.73 | 83.53 | 0.3866 | 778.0 | 604.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 8.89 | 172.19 | -22.88 | 81.69 | 0.3899 | 753.0 | 562.1 | |
| 1.08 | 150.71 | 0.58 | 81.71 | 9.67 | 171.93 | -23.13 | 79.77 | 0.3952 | 1173.0 | 515.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 10.67 | 171.86 | -23.21 | 77.28 | 0.3987 | 765.0 | 601.9 | |
| 3.25 | -47.00 | 1.75 | -47.00 | 9.60 | 171.77 | -23.30 | 79.99 | 0.3977 | 1112.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 7.29 | 171.92 | -23.15 | 85.82 | 0.3927 | 800.0 | 630.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 8.05 | 171.81 | -23.26 | 83.90 | 0.3949 | -480.0 | -400.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 10.93 | 171.43 | -23.64 | 76.82 | 0.4060 | 839.0 | 690.3 | |
| 10.30 | -47.00 | 5.57 | -47.00 | 9.65 | 171.50 | -23.57 | 79.94 | 0.4020 | 1053.4 | 999999 | |
| 0.63 | 1.81 | 0.34 | 0.98 | 8.40 | 171.52 | -23.55 | 83.05 | 0.3999 | 834.1 | 657.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 8.16 | 171.50 | -23.57 | 83.67 | 0.3999 | 413.0 | 242.2 | |
| 2.80 | -47.00 | 1.52 | -47.00 | 9.46 | 171.31 | -23.76 | 80.47 | 0.4047 | 1071.5 | 999999 | |
| 3.07 | -47.00 | 1.67 | -47.00 | 9.39 | 171.05 | -24.02 | 80.71 | 0.4087 | 1124.0 | 999999 | |
| 7.05 | -47.00 | 3.82 | -47.00 | 9.14 | 170.96 | -24.11 | 81.34 | 0.4096 | 1103.0 | 999999 | |
| 0.00 | 4.16 | 0.00 | 2.26 | 9.90 | 170.84 | -24.23 | 79.53 | 0.4129 | 24.0 | 148.7 | |
| 1.90 | 3.70 | 1.04 | 2.02 | 12.36 | 170.59 | -24.48 | 73.79 | 0.4233 | -907.4 | -721.5 | |
| 2.89 | -47.00 | 1.57 | -47.00 | 9.04 | 170.80 | -24.27 | 81.61 | 0.4120 | 871.8 | 999999 | |
| 9.22 | -47.00 | 5.01 | -47.00 | 9.38 | 170.74 | -24.33 | 80.82 | 0.4134 | 899.1 | 999999 | |
| 2.53 | -47.00 | 1.37 | -47.00 | 8.86 | 170.78 | -24.29 | 82.06 | 0.4121 | 864.5 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 7.32 | 170.47 | -24.60 | 85.82 | 0.4157 | 733.0 | 565.8 | |
| 0.00 | 2.53 | 0.00 | 1.41 | 9.29 | 168.12 | -26.95 | 81.57 | 0.4541 | 807.0 | 584.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 8.89 | 167.52 | -27.54 | 82.53 | 0.4627 | 734.0 | 613.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
