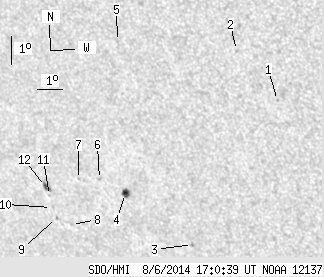

SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 19.59 | 3.96 | 13.98 | -20.80 | 157.25 | -37.82 | 127.07 | 0.7194 | 234.5 | 59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.68 | -17.63 | 164.61 | -30.46 | 128.85 | 0.6226 | 666.0 | 533.6 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -16.06 | 163.38 | -31.69 | 125.68 | 0.6238 | 640.0 | 522.9 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -22.77 | 160.10 | -34.97 | 131.38 | 0.7067 | 638.0 | 544.3 | |
| 4.07 | 5.69 | 2.88 | 4.03 | -21.17 | 157.85 | -37.22 | 127.86 | 0.7168 | 738.3 | 573.9 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -16.04 | 158.83 | -36.24 | 122.20 | 0.6737 | 613.0 | 540.2 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -20.76 | 156.90 | -38.17 | 126.72 | 0.7233 | 589.0 | 514.5 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -20.82 | 156.00 | -39.07 | 126.20 | 0.7323 | 523.0 | 452.4 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -22.41 | 155.18 | -39.89 | 127.51 | 0.7497 | -420.0 | -415.8 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -22.22 | 154.60 | -40.47 | 126.91 | 0.7538 | -491.0 | -451.0 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -21.88 | 154.50 | -40.57 | 126.47 | 0.7527 | -411.0 | -477.2 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -21.47 | 154.55 | -40.51 | 126.03 | 0.7498 | -495.0 | -468.0 | |
| 1.45 | 4.43 | 1.08 | 3.30 | -21.17 | 154.48 | -40.58 | 125.63 | 0.7487 | -652.8 | -620.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
