SDO HMI 2014-08-06 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.27 | 39.38 | 15.24 | 41.41 | -20.41 | 251.42 | 56.91 | 242.90 | 0.8837 | 218.8 | 87.4 | |
|
previous
or next observation for the same group /

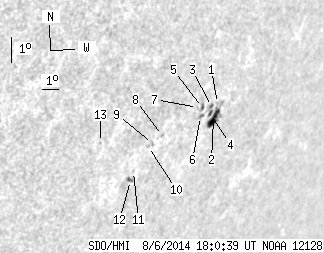

back to the solar disc SDO HMI 2014-08-06 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.87 | -19.78 | 252.32 | 57.80 | 243.89 | 0.8886 | 367.0 | 346.0 | |
| 9.94 | 24.12 | 10.73 | 25.97 | -20.29 | 252.37 | 57.85 | 243.37 | 0.8903 | 277.6 | 94.6 | |
| 0.81 | -2.00 | 0.86 | -2.00 | -19.85 | 251.99 | 57.48 | 243.71 | 0.8865 | 622.4 | 999999 | |
| 1.36 | -2.00 | 1.45 | -2.00 | -20.09 | 252.07 | 57.56 | 243.48 | 0.8877 | 618.7 | 999999 | |
| 0.99 | 3.25 | 1.04 | 3.40 | -19.83 | 251.44 | 56.93 | 243.54 | 0.8824 | 600.2 | 494.2 | |
| 0.00 | 2.26 | 0.00 | 2.37 | -20.14 | 251.49 | 56.98 | 243.23 | 0.8836 | 635.0 | 589.6 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -19.80 | 251.13 | 56.61 | 243.46 | 0.8800 | 599.0 | 564.7 | |
| 0.00 | 1.36 | 0.00 | 1.35 | -20.59 | 249.52 | 55.01 | 242.04 | 0.8703 | -336.0 | -221.3 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -20.81 | 249.08 | 54.56 | 241.62 | 0.8676 | -356.0 | -364.2 | |
| 0.00 | 0.81 | 0.00 | 0.80 | -20.90 | 248.90 | 54.38 | 241.46 | 0.8665 | -355.0 | -263.1 | |
| 0.00 | 0.90 | 0.00 | 0.89 | -21.70 | 248.49 | 53.98 | 240.44 | 0.8659 | -374.0 | -344.7 | |
| 1.17 | 3.43 | 1.16 | 3.39 | -22.01 | 248.49 | 53.98 | 240.11 | 0.8669 | -469.5 | -407.8 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -20.51 | 246.09 | 51.58 | 240.76 | 0.8430 | 415.0 | 433.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
