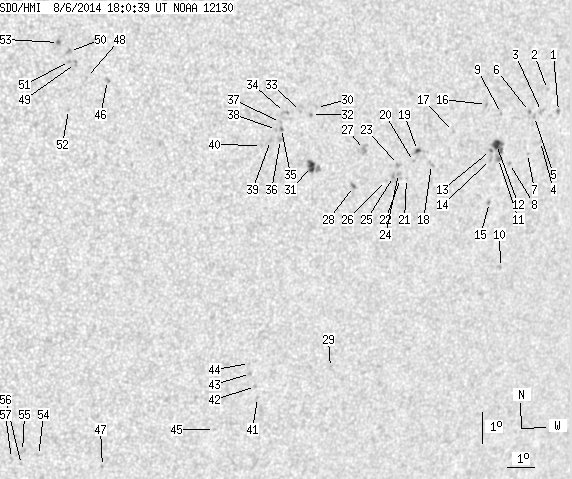

SDO HMI 2014-08-06 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.10 | 111.52 | 7.72 | 69.87 | -8.30 | 228.91 | 34.39 | 247.20 | 0.6076 | 252.8 | 270.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.31 | -6.82 | 236.72 | 42.21 | 253.56 | 0.6978 | 605.0 | 455.6 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -6.10 | 236.20 | 41.68 | 254.36 | 0.6890 | 560.0 | 490.6 | |
| 0.00 | 3.16 | 0.00 | 2.16 | -6.77 | 236.02 | 41.50 | 253.35 | 0.6891 | 547.0 | 509.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -7.71 | 236.08 | 41.57 | 252.07 | 0.6934 | 446.0 | 425.4 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -6.90 | 235.74 | 41.23 | 253.04 | 0.6863 | 736.0 | 587.0 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -6.73 | 235.52 | 41.01 | 253.19 | 0.6830 | 683.0 | 637.9 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -8.04 | 235.59 | 41.07 | 251.39 | 0.6888 | 441.0 | 451.2 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -8.31 | 234.89 | 40.37 | 250.70 | 0.6814 | 725.0 | 599.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -6.71 | 234.39 | 39.88 | 252.74 | 0.6691 | -541.0 | -401.3 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -11.59 | 235.01 | 40.50 | 246.27 | 0.6972 | 639.0 | 517.4 | |
| 0.00 | 3.52 | 0.00 | 2.36 | -8.12 | 234.42 | 39.91 | 250.75 | 0.6750 | 739.0 | 583.0 | |
| 4.88 | 11.11 | 3.25 | 7.42 | -7.67 | 234.29 | 39.78 | 251.32 | 0.6716 | 828.1 | 630.8 | |
| 0.36 | -12.00 | 0.24 | -12.00 | -7.84 | 234.07 | 39.56 | 250.98 | 0.6696 | 926.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -8.12 | 234.10 | 39.59 | 250.59 | 0.6712 | 611.0 | 558.7 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -9.48 | 234.24 | 39.72 | 248.75 | 0.6786 | 814.0 | 626.4 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -6.39 | 233.76 | 39.25 | 252.93 | 0.6600 | 568.0 | 536.3 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -7.14 | 232.54 | 38.02 | 251.26 | 0.6477 | -558.0 | -458.4 | |
| 0.00 | 3.07 | 0.00 | 1.98 | -8.12 | 231.78 | 37.27 | 249.44 | 0.6425 | 740.0 | 569.4 | |
| 1.26 | 2.53 | 0.81 | 1.62 | -7.64 | 231.19 | 36.68 | 249.83 | 0.6329 | 767.6 | 628.9 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -7.98 | 231.07 | 36.56 | 249.27 | 0.6330 | 739.0 | 601.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -8.50 | 230.86 | 36.35 | 248.38 | 0.6328 | 353.0 | 355.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -8.48 | 230.63 | 36.12 | 248.28 | 0.6298 | 691.0 | 577.2 | |
| 0.00 | 2.44 | 0.00 | 1.55 | -8.04 | 230.51 | 35.99 | 248.88 | 0.6261 | 805.0 | 692.0 | |
| 0.00 | 2.08 | 0.00 | 1.32 | -8.32 | 230.54 | 36.02 | 248.47 | 0.6278 | 791.0 | 608.9 | |
| 0.00 | 2.44 | 0.00 | 1.55 | -8.40 | 230.36 | 35.84 | 248.24 | 0.6259 | 818.0 | 695.1 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -8.51 | 230.10 | 35.59 | 247.93 | 0.6233 | 700.0 | 525.6 | |
| 0.00 | 4.88 | 0.00 | 3.03 | -7.48 | 229.17 | 34.66 | 248.97 | 0.6063 | 921.0 | 682.7 | |
| 0.54 | 2.62 | 0.34 | 1.63 | -8.62 | 228.87 | 34.36 | 247.03 | 0.6082 | -737.0 | -573.6 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -14.37 | 228.80 | 34.29 | 238.64 | 0.6413 | -368.0 | -264.6 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -6.06 | 227.29 | 32.78 | 250.14 | 0.5745 | 770.0 | 630.5 | |
| 5.06 | 10.39 | 3.08 | 6.33 | -7.89 | 227.25 | 32.74 | 247.14 | 0.5835 | 873.6 | 594.3 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -6.26 | 227.12 | 32.61 | 249.70 | 0.5733 | 813.0 | 657.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -6.15 | 226.72 | 32.20 | 249.64 | 0.5673 | 757.0 | 611.7 | |
| 0.00 | 3.25 | 0.00 | 1.94 | -6.14 | 226.14 | 31.62 | 249.29 | 0.5595 | 875.0 | 717.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -6.64 | 226.06 | 31.55 | 248.42 | 0.5610 | 899.0 | 778.8 | |
| 0.00 | 2.71 | 0.00 | 1.62 | -6.98 | 226.05 | 31.54 | 247.84 | 0.5627 | 766.0 | 637.0 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -6.45 | 226.01 | 31.50 | 248.70 | 0.5594 | 787.0 | 696.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -6.66 | 225.89 | 31.37 | 248.27 | 0.5588 | 814.0 | 680.1 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -6.99 | 225.69 | 31.18 | 247.59 | 0.5580 | 612.0 | 508.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.13 | 225.38 | 30.87 | 247.14 | 0.5546 | 704.0 | 591.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -15.18 | 226.20 | 31.68 | 235.50 | 0.6173 | -620.0 | -528.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -14.82 | 226.06 | 31.55 | 235.89 | 0.6132 | -660.0 | -506.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -14.38 | 225.81 | 31.30 | 236.29 | 0.6071 | -843.0 | -693.6 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -14.05 | 225.72 | 31.21 | 236.69 | 0.6037 | -708.0 | -547.7 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -16.14 | 224.77 | 30.26 | 232.95 | 0.6087 | -658.0 | -482.5 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -4.82 | 219.91 | 25.39 | 247.16 | 0.4655 | -720.0 | -635.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -17.15 | 220.89 | 26.38 | 227.80 | 0.5752 | -751.0 | -567.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -4.69 | 219.19 | 24.68 | 246.80 | 0.4546 | -533.0 | -409.2 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -4.24 | 218.81 | 24.30 | 247.39 | 0.4463 | -684.0 | -668.7 | |
| 0.00 | 2.80 | 0.00 | 1.54 | -3.86 | 218.60 | 24.08 | 247.99 | 0.4409 | -737.0 | -622.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -4.17 | 218.61 | 24.09 | 247.35 | 0.4430 | -830.0 | -601.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -5.66 | 218.63 | 24.11 | 244.34 | 0.4529 | -513.0 | -396.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -3.57 | 218.22 | 23.71 | 248.29 | 0.4337 | -980.0 | -861.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -16.67 | 218.57 | 24.06 | 225.86 | 0.5463 | -602.0 | -533.9 | |
| 0.00 | 2.89 | 0.00 | 1.70 | -16.51 | 218.00 | 23.48 | 225.39 | 0.5387 | -656.0 | -528.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -16.94 | 218.02 | 23.50 | 224.83 | 0.5432 | -366.0 | -314.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -16.73 | 217.64 | 23.13 | 224.67 | 0.5372 | -700.0 | -533.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
