SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.63 | 36.14 | 17.02 | 38.74 | -20.42 | 251.51 | 57.55 | 243.11 | 0.8884 | 216.4 | 10.5 | |
|
previous
or next observation for the same group /

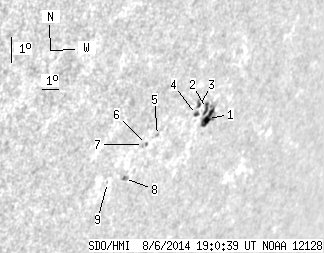

back to the solar disc SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.67 | 22.77 | 10.63 | 24.97 | -20.34 | 252.40 | 58.44 | 243.51 | 0.8946 | 271.1 | 85.4 | |
| 3.16 | -1.00 | 3.43 | -1.00 | -19.98 | 252.12 | 58.16 | 243.80 | 0.8917 | 610.3 | 999999 | |
| 0.99 | 2.80 | 1.06 | 2.98 | -19.83 | 251.61 | 57.65 | 243.79 | 0.8877 | 633.9 | 521.8 | |
| 1.36 | 2.71 | 1.45 | 2.90 | -20.13 | 251.60 | 57.64 | 243.46 | 0.8884 | 623.8 | 563.5 | |
| 0.00 | 1.54 | 0.00 | 1.56 | -20.64 | 249.57 | 55.61 | 242.20 | 0.8750 | -289.0 | -224.1 | |
| 0.00 | 1.26 | 0.00 | 1.27 | -20.90 | 249.08 | 55.12 | 241.74 | 0.8720 | -540.0 | -478.6 | |
| 0.00 | 1.81 | 0.00 | 1.81 | -20.88 | 248.90 | 54.94 | 241.69 | 0.8706 | -470.0 | -317.4 | |
| 0.45 | 2.98 | 0.45 | 2.99 | -21.98 | 248.43 | 54.47 | 240.33 | 0.8705 | -566.2 | -427.8 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -22.03 | 247.50 | 53.54 | 239.91 | 0.8637 | 334.0 | 346.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
