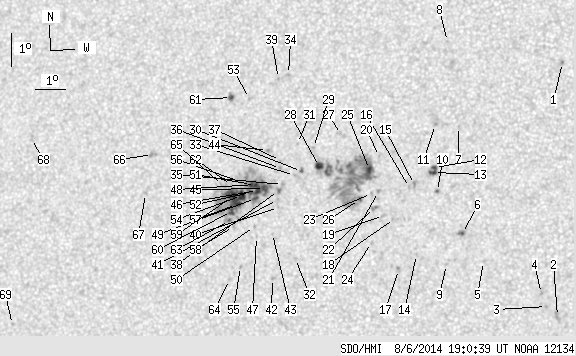

SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.44 | 381.26 | 32.85 | 202.45 | 9.69 | 173.36 | -20.60 | 78.72 | 0.3552 | 332.6 | 274.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.76 | 181.28 | -12.68 | 57.68 | 0.2534 | -1042.0 | -887.2 | |
| 0.00 | 4.52 | 0.00 | 2.29 | 6.02 | 181.42 | -12.54 | 89.96 | 0.2170 | -834.0 | -781.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 6.32 | 181.06 | -12.90 | 88.59 | 0.2229 | -906.0 | -764.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 6.71 | 180.90 | -13.06 | 86.84 | 0.2258 | -1031.0 | -859.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 7.64 | 179.04 | -14.92 | 83.43 | 0.2580 | -939.0 | -686.7 | |
| 0.72 | 2.53 | 0.37 | 1.30 | 8.47 | 178.34 | -15.62 | 80.57 | 0.2712 | -1117.1 | -912.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 11.72 | 178.05 | -15.91 | 69.38 | 0.2880 | -766.0 | -636.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 14.31 | 177.52 | -16.44 | 61.95 | 0.3120 | -799.0 | -632.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 7.51 | 177.87 | -16.09 | 84.22 | 0.2775 | -768.0 | -636.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 9.72 | 177.48 | -16.48 | 76.61 | 0.2887 | -1149.0 | -920.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 11.76 | 177.30 | -16.66 | 70.01 | 0.2999 | -897.0 | -748.5 | |
| 1.45 | 6.50 | 0.75 | 3.37 | 10.45 | 177.35 | -16.61 | 74.25 | 0.2934 | -1048.6 | -838.8 | |
| 2.44 | -12.00 | 1.26 | -12.00 | 10.30 | 177.32 | -16.64 | 74.78 | 0.2932 | -1110.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.79 | 176.89 | -17.07 | 83.50 | 0.2939 | -868.0 | -732.9 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 9.91 | 176.73 | -17.23 | 76.46 | 0.3014 | -1133.0 | -883.7 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 9.82 | 176.57 | -17.39 | 76.87 | 0.3037 | -782.0 | -684.2 | |
| 0.00 | 2.44 | 0.00 | 1.27 | 7.31 | 176.34 | -17.62 | 85.20 | 0.3027 | -768.0 | -684.6 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 8.86 | 176.14 | -17.82 | 80.20 | 0.3082 | -234.0 | -405.9 | |
| 0.00 | 2.62 | 0.00 | 1.37 | 8.94 | 175.78 | -18.18 | 80.09 | 0.3143 | -743.0 | -552.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 10.73 | 175.55 | -18.41 | 74.66 | 0.3232 | -523.0 | -444.6 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 9.67 | 175.58 | -18.38 | 77.91 | 0.3193 | -955.0 | -784.4 | |
| 0.00 | 3.88 | 0.00 | 2.03 | 9.17 | 175.47 | -18.49 | 79.48 | 0.3197 | -958.0 | -684.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.60 | 175.35 | -18.61 | 78.23 | 0.3227 | -707.0 | -534.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 8.11 | 175.43 | -18.53 | 82.84 | 0.3185 | -615.0 | -443.6 | |
| 2.98 | 134.06 | 1.56 | 70.44 | 10.33 | 175.25 | -18.71 | 76.07 | 0.3266 | -621.4 | 263.1 | |
| 0.72 | -25.00 | 0.38 | -25.00 | 9.40 | 174.97 | -18.99 | 79.01 | 0.3284 | -949.6 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.48 | 11.36 | 174.26 | -19.70 | 73.67 | 0.3459 | 774.0 | 638.7 | |
| 4.25 | 19.69 | 2.25 | 10.41 | 10.36 | 173.60 | -20.36 | 76.86 | 0.3529 | 1135.9 | 841.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.93 | 173.37 | -20.59 | 75.40 | 0.3584 | 896.0 | 698.9 | |
| 0.45 | 2.26 | 0.24 | 1.20 | 10.19 | 173.02 | -20.94 | 77.61 | 0.3617 | 1048.2 | 886.8 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 11.03 | 172.83 | -21.13 | 75.41 | 0.3672 | 786.0 | 571.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 7.54 | 172.98 | -20.98 | 84.99 | 0.3579 | 857.0 | 690.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.06 | 172.80 | -21.16 | 78.07 | 0.3649 | 981.0 | 777.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 13.13 | 172.36 | -21.60 | 70.25 | 0.3826 | 926.0 | 625.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 9.77 | 172.42 | -21.54 | 78.99 | 0.3702 | 1054.0 | 833.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.25 | 172.32 | -21.64 | 77.74 | 0.3729 | 930.0 | 820.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.50 | 172.30 | -21.66 | 77.10 | 0.3739 | 700.0 | 620.2 | |
| 0.54 | 2.17 | 0.29 | 1.16 | 9.58 | 172.30 | -21.66 | 79.54 | 0.3717 | 1036.8 | 884.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.99 | 172.03 | -21.93 | 70.82 | 0.3869 | 795.0 | 657.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 9.06 | 172.33 | -21.63 | 80.92 | 0.3702 | 667.0 | 549.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 9.31 | 172.28 | -21.68 | 80.28 | 0.3714 | 785.0 | 639.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.90 | 172.25 | -21.71 | 86.80 | 0.3693 | 821.0 | 654.4 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 8.27 | 172.18 | -21.78 | 83.11 | 0.3714 | 875.0 | 840.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 10.78 | 171.85 | -22.11 | 76.55 | 0.3818 | 911.0 | 599.5 | |
| 4.52 | 131.26 | 2.42 | 70.61 | 9.62 | 171.83 | -22.13 | 79.59 | 0.3792 | 1142.8 | 489.0 | |
| 4.25 | -45.00 | 2.28 | -45.00 | 9.55 | 171.60 | -22.36 | 79.84 | 0.3827 | 1223.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 8.15 | 171.66 | -22.30 | 83.50 | 0.3797 | 773.0 | 555.1 | |
| 3.07 | -45.00 | 1.65 | -45.00 | 9.73 | 171.52 | -22.44 | 79.40 | 0.3843 | 1033.1 | 999999 | |
| 1.90 | -45.00 | 1.02 | -45.00 | 9.31 | 171.55 | -22.41 | 80.50 | 0.3830 | 1127.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 8.46 | 171.57 | -22.39 | 82.72 | 0.3814 | 701.0 | 462.8 | |
| 2.80 | -45.00 | 1.50 | -45.00 | 9.73 | 171.39 | -22.57 | 79.46 | 0.3864 | 984.5 | 999999 | |
| 2.98 | -45.00 | 1.60 | -45.00 | 9.48 | 171.37 | -22.59 | 80.10 | 0.3862 | 1128.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.35 | 171.11 | -22.85 | 72.99 | 0.3983 | 630.0 | 378.4 | |
| 6.14 | -45.00 | 3.30 | -45.00 | 9.38 | 171.08 | -22.88 | 80.45 | 0.3906 | 1177.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.22 | 171.18 | -22.78 | 86.00 | 0.3867 | 834.0 | 717.3 | |
| 0.00 | 2.80 | 0.00 | 1.51 | 9.80 | 170.98 | -22.98 | 79.40 | 0.3930 | 377.0 | 305.1 | |
| 4.70 | -45.00 | 2.53 | -45.00 | 9.10 | 170.93 | -23.03 | 81.20 | 0.3925 | 1048.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.43 | 170.87 | -23.09 | 82.93 | 0.3925 | 708.0 | 509.6 | |
| 12.20 | -45.00 | 6.57 | -45.00 | 9.34 | 170.78 | -23.18 | 80.64 | 0.3953 | 923.9 | 999999 | |
| 2.98 | -45.00 | 1.61 | -45.00 | 8.88 | 170.78 | -23.18 | 81.79 | 0.3946 | 864.0 | 999999 | |
| 1.72 | 3.16 | 0.93 | 1.71 | 12.35 | 170.50 | -23.46 | 73.31 | 0.4077 | -962.5 | -801.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 9.67 | 170.72 | -23.24 | 79.81 | 0.3968 | 411.0 | 360.6 | |
| 0.63 | -45.00 | 0.34 | -45.00 | 8.60 | 170.73 | -23.23 | 82.51 | 0.3950 | 681.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 6.81 | 170.83 | -23.13 | 87.06 | 0.3922 | 839.0 | 675.7 | |
| 0.00 | 4.61 | 0.00 | 2.49 | 9.66 | 170.42 | -23.54 | 79.93 | 0.4015 | 524.0 | 327.3 | |
| 0.00 | 3.52 | 0.00 | 1.94 | 10.50 | 167.97 | -25.99 | 78.66 | 0.4412 | 818.0 | 677.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 9.30 | 167.83 | -26.13 | 81.40 | 0.4413 | 779.0 | 521.5 | |
| 0.00 | 2.89 | 0.00 | 1.66 | 10.78 | 163.70 | -30.26 | 79.14 | 0.5061 | 607.0 | 502.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 5.10 | 163.48 | -30.48 | 90.42 | 0.5073 | 639.0 | 496.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
