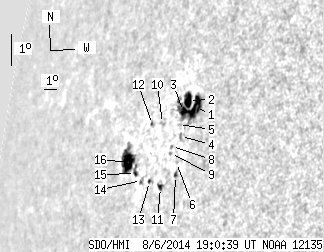

SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.98 | 104.99 | 54.81 | 129.03 | 11.20 | 127.14 | -66.82 | 80.43 | 0.9158 | -34.7 | 111.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.45 | 49.15 | 16.42 | 56.75 | 12.31 | 129.15 | -64.81 | 79.28 | 0.9016 | -522.3 | -104.3 | |
| 8.31 | -1.00 | 9.65 | -1.00 | 12.47 | 128.55 | -65.41 | 79.09 | 0.9060 | -420.0 | 999999 | |
| 4.43 | -1.00 | 5.17 | -1.00 | 12.11 | 128.34 | -65.62 | 79.49 | 0.9075 | -125.6 | 999999 | |
| 0.00 | 2.53 | 0.00 | 2.94 | 11.35 | 128.46 | -65.50 | 80.33 | 0.9068 | -206.0 | -102.5 | |
| 0.00 | 0.99 | 0.00 | 1.17 | 11.69 | 128.16 | -65.80 | 79.95 | 0.9089 | 333.0 | 328.0 | |
| 0.00 | 1.17 | 0.00 | 1.37 | 10.55 | 128.50 | -65.46 | 81.22 | 0.9067 | 188.0 | 159.5 | |
| 0.81 | 2.44 | 0.94 | 2.83 | 10.15 | 128.58 | -65.38 | 81.65 | 0.9062 | 401.2 | 385.7 | |
| 0.00 | 1.36 | 0.00 | 1.61 | 10.99 | 127.94 | -66.02 | 80.71 | 0.9106 | -182.0 | -129.8 | |
| 0.00 | 1.36 | 0.00 | 1.61 | 10.77 | 127.95 | -66.01 | 80.95 | 0.9106 | -191.0 | -110.9 | |
| 0.00 | 2.53 | 0.00 | 3.12 | 11.60 | 126.94 | -67.02 | 80.00 | 0.9174 | 253.0 | 241.4 | |
| 1.54 | 3.61 | 1.85 | 4.36 | 9.69 | 127.62 | -66.34 | 82.12 | 0.9132 | 522.6 | 450.0 | |
| 0.00 | 1.54 | 0.00 | 1.95 | 11.50 | 126.18 | -67.78 | 80.09 | 0.9225 | -131.0 | -89.0 | |
| 0.72 | 2.08 | 0.90 | 2.59 | 9.79 | 126.71 | -67.25 | 81.98 | 0.9194 | 489.5 | 478.0 | |
| 0.00 | 2.80 | 0.00 | 3.59 | 9.75 | 126.07 | -67.89 | 81.98 | 0.9237 | 508.0 | 446.6 | |
| 1.26 | 33.43 | 1.66 | 45.14 | 9.91 | 125.50 | -68.46 | 81.78 | 0.9274 | 455.4 | 245.5 | |
| 13.46 | -15.00 | 18.22 | -15.00 | 10.18 | 124.77 | -69.19 | 81.45 | 0.9320 | 438.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
