SDO HMI 2014-08-06 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.53 | 378.19 | 31.13 | 199.97 | 9.69 | 173.33 | -20.08 | 78.48 | 0.3469 | 226.7 | 288.9 | |
|
previous
or next observation for the same group /

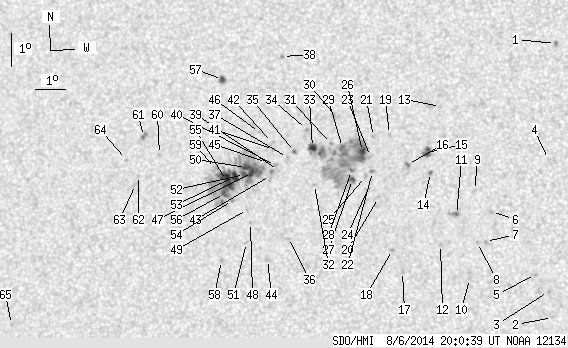

back to the solar disc SDO HMI 2014-08-06 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.11 | 13.78 | 181.27 | -12.13 | 56.55 | 0.2458 | -960.0 | -859.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 5.43 | 181.47 | -11.94 | 92.91 | 0.2071 | -902.0 | -710.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.22 | 181.33 | -12.08 | 89.08 | 0.2090 | -957.0 | -851.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.23 | 181.21 | -12.20 | 70.57 | 0.2215 | -812.0 | -570.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 6.73 | 180.91 | -12.50 | 86.71 | 0.2162 | -1023.0 | -833.1 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 8.61 | 179.47 | -13.94 | 79.12 | 0.2436 | -682.0 | -616.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.69 | 179.31 | -14.10 | 82.94 | 0.2443 | -854.0 | -604.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.65 | 179.06 | -14.35 | 83.18 | 0.2485 | -940.0 | -701.7 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 9.23 | 178.90 | -14.50 | 77.03 | 0.2548 | -714.0 | -531.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 6.55 | 178.84 | -14.57 | 87.64 | 0.2512 | -795.0 | -646.5 | |
| 0.54 | 4.43 | 0.28 | 2.27 | 8.49 | 178.36 | -15.05 | 80.23 | 0.2617 | -1156.7 | -809.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.56 | 177.88 | -15.52 | 83.90 | 0.2680 | -814.0 | -607.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.76 | 177.69 | -15.72 | 69.05 | 0.2852 | -828.0 | -614.7 | |
| 0.54 | 1.99 | 0.28 | 1.03 | 9.74 | 177.47 | -15.93 | 76.19 | 0.2798 | -1005.7 | -768.1 | |
| 3.61 | 6.50 | 1.87 | 3.36 | 10.35 | 177.35 | -16.06 | 74.17 | 0.2841 | -1108.2 | -828.1 | |
| 0.36 | 1.63 | 0.19 | 0.84 | 9.97 | 176.72 | -16.68 | 75.94 | 0.2927 | -1106.0 | -896.7 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 6.71 | 176.70 | -16.70 | 87.19 | 0.2871 | -791.0 | -601.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.37 | 176.36 | -17.05 | 84.95 | 0.2932 | -896.0 | -714.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 10.86 | 176.09 | -17.31 | 73.48 | 0.3062 | -747.0 | -590.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.93 | 175.84 | -17.57 | 79.86 | 0.3042 | -749.0 | -579.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 10.79 | 175.58 | -17.83 | 74.10 | 0.3141 | -520.0 | -393.1 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 9.72 | 175.61 | -17.80 | 77.45 | 0.3100 | -1027.0 | -788.9 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 10.17 | 175.52 | -17.89 | 76.06 | 0.3129 | -819.0 | -679.8 | |
| 0.00 | 2.80 | 0.00 | 1.46 | 9.17 | 175.47 | -17.93 | 79.28 | 0.3107 | -922.0 | -692.6 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 9.56 | 175.39 | -18.02 | 78.07 | 0.3131 | -737.0 | -531.3 | |
| 3.97 | 123.58 | 2.08 | 64.71 | 10.32 | 175.25 | -18.16 | 75.78 | 0.3177 | -494.2 | 251.8 | |
| 1.99 | -26.00 | 1.04 | -26.00 | 9.45 | 174.97 | -18.43 | 78.61 | 0.3196 | -738.5 | 999999 | |
| 0.63 | -26.00 | 0.33 | -26.00 | 9.73 | 174.92 | -18.48 | 77.78 | 0.3211 | -664.7 | 999999 | |
| 1.45 | -26.00 | 0.76 | -26.00 | 10.42 | 174.59 | -18.82 | 75.87 | 0.3285 | 1102.9 | 999999 | |
| 0.00 | 4.61 | 0.00 | 2.42 | 11.39 | 174.30 | -19.11 | 73.21 | 0.3367 | 503.0 | 679.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 10.53 | 174.22 | -19.18 | 75.76 | 0.3347 | 1003.0 | 772.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.26 | 173.74 | -19.66 | 79.72 | 0.3390 | 712.0 | 583.8 | |
| 4.61 | 20.15 | 2.43 | 10.61 | 10.38 | 173.61 | -19.80 | 76.52 | 0.3441 | 1113.7 | 794.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 10.93 | 173.38 | -20.03 | 75.11 | 0.3495 | 967.0 | 809.1 | |
| 0.54 | 1.99 | 0.29 | 1.05 | 10.24 | 173.03 | -20.38 | 77.22 | 0.3529 | 1091.8 | 923.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 7.62 | 172.98 | -20.43 | 84.69 | 0.3489 | 614.0 | 588.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 10.05 | 172.81 | -20.60 | 77.85 | 0.3559 | 894.0 | 690.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.12 | 172.41 | -21.00 | 69.84 | 0.3734 | 1008.0 | 815.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 9.65 | 172.54 | -20.87 | 79.09 | 0.3592 | 795.0 | 758.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 9.79 | 172.43 | -20.98 | 78.72 | 0.3613 | 1099.0 | 854.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.28 | 172.33 | -21.08 | 77.44 | 0.3641 | 899.0 | 760.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 10.49 | 172.28 | -21.12 | 76.89 | 0.3654 | 718.0 | 617.2 | |
| 0.00 | 4.07 | 0.00 | 2.16 | 9.48 | 172.28 | -21.12 | 79.63 | 0.3629 | 731.0 | 797.2 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 6.93 | 172.32 | -21.08 | 86.72 | 0.3592 | 825.0 | 667.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 9.87 | 172.13 | -21.28 | 78.62 | 0.3663 | 938.0 | 764.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 10.78 | 171.83 | -21.58 | 76.33 | 0.3734 | 833.0 | 609.0 | |
| 7.59 | 133.43 | 4.05 | 71.48 | 9.55 | 171.68 | -21.72 | 79.65 | 0.3726 | 1201.8 | 505.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 8.03 | 171.71 | -21.70 | 83.74 | 0.3699 | 771.0 | 624.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.42 | 171.59 | -21.82 | 82.71 | 0.3723 | 299.0 | 346.1 | |
| 4.61 | -47.00 | 2.46 | -47.00 | 9.70 | 171.47 | -21.93 | 79.34 | 0.3762 | 1062.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 7.42 | 171.61 | -21.80 | 85.42 | 0.3710 | 776.0 | 590.5 | |
| 2.53 | -47.00 | 1.35 | -47.00 | 9.48 | 171.42 | -21.98 | 79.93 | 0.3766 | 1175.9 | 999999 | |
| 5.60 | -47.00 | 3.00 | -47.00 | 9.41 | 171.09 | -22.31 | 80.22 | 0.3817 | 1181.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 8.68 | 171.07 | -22.33 | 82.15 | 0.3808 | 791.0 | 753.2 | |
| 14.27 | -47.00 | 7.66 | -47.00 | 9.28 | 170.84 | -22.57 | 80.64 | 0.3855 | 996.5 | 999999 | |
| 3.07 | -47.00 | 1.65 | -47.00 | 8.88 | 170.79 | -22.61 | 81.68 | 0.3855 | 885.6 | 999999 | |
| 2.62 | 4.16 | 1.41 | 2.24 | 12.35 | 170.46 | -22.95 | 73.06 | 0.3998 | -971.0 | -717.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 6.84 | 170.81 | -22.60 | 87.00 | 0.3837 | 800.0 | 677.9 | |
| 0.00 | 3.88 | 0.00 | 2.09 | 9.63 | 170.44 | -22.96 | 79.86 | 0.3924 | 547.0 | 405.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 9.97 | 168.53 | -24.88 | 79.57 | 0.4231 | 731.0 | 529.2 | |
| 0.00 | 3.70 | 0.00 | 2.03 | 10.50 | 167.94 | -25.47 | 78.53 | 0.4333 | 875.0 | 709.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 9.30 | 167.86 | -25.54 | 81.30 | 0.4323 | 641.0 | 475.4 | |
| 0.00 | 3.16 | 0.00 | 1.74 | 9.02 | 167.78 | -25.62 | 81.96 | 0.4332 | 295.0 | 359.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 9.77 | 167.41 | -25.99 | 80.32 | 0.4399 | 594.0 | 463.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 4.57 | 163.76 | -29.65 | 91.61 | 0.4952 | 448.0 | 327.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
