SDO HMI 2014-08-06 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.33 | 399.04 | 32.93 | 210.39 | 9.76 | 173.32 | -19.53 | 78.04 | 0.3383 | 214.0 | 285.7 | |
|
previous
or next observation for the same group /

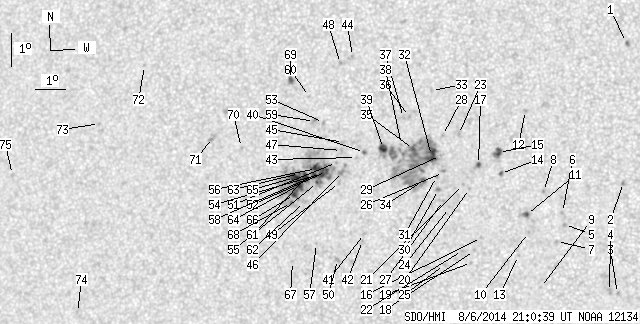

back to the solar disc SDO HMI 2014-08-06 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 2.17 | 0.18 | 1.11 | 13.83 | 181.29 | -11.56 | 55.16 | 0.2381 | -1003.8 | -858.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 9.55 | 181.37 | -11.48 | 72.69 | 0.2065 | -822.0 | -695.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 6.18 | 181.28 | -11.57 | 89.34 | 0.2004 | -976.0 | -864.5 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 6.23 | 181.03 | -11.83 | 89.05 | 0.2047 | -883.0 | -835.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.24 | 179.56 | -13.29 | 80.29 | 0.2319 | -880.0 | -686.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.60 | 179.48 | -13.37 | 78.79 | 0.2341 | -829.0 | -791.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.71 | 179.32 | -13.53 | 82.65 | 0.2348 | -864.0 | -619.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 9.22 | 178.86 | -13.99 | 76.69 | 0.2464 | -816.0 | -654.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.30 | 178.86 | -13.99 | 88.68 | 0.2415 | -749.0 | -498.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 7.96 | 178.43 | -14.42 | 81.99 | 0.2502 | -811.0 | -591.2 | |
| 1.26 | 3.52 | 0.65 | 1.80 | 8.51 | 178.35 | -14.51 | 79.87 | 0.2528 | -1134.9 | -875.8 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 11.68 | 178.17 | -14.68 | 68.17 | 0.2685 | -983.0 | -653.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 7.26 | 178.14 | -14.72 | 84.89 | 0.2541 | -783.0 | -549.2 | |
| 0.54 | 1.81 | 0.28 | 0.93 | 9.74 | 177.47 | -15.38 | 75.83 | 0.2709 | -992.2 | -743.6 | |
| 2.62 | 6.78 | 1.35 | 3.49 | 10.37 | 177.37 | -15.48 | 73.62 | 0.2748 | -1155.1 | -868.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 7.77 | 176.94 | -15.91 | 83.26 | 0.2747 | -832.0 | -687.5 | |
| 1.17 | 3.43 | 0.61 | 1.77 | 9.99 | 176.75 | -16.10 | 75.47 | 0.2834 | -1011.2 | -739.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 7.37 | 176.73 | -16.12 | 84.77 | 0.2777 | -764.0 | -644.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 7.00 | 176.65 | -16.20 | 86.11 | 0.2788 | -719.0 | -616.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.25 | 176.50 | -16.36 | 78.20 | 0.2852 | -846.0 | -660.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.37 | 176.30 | -16.55 | 77.91 | 0.2888 | -876.0 | -666.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 7.36 | 176.35 | -16.50 | 84.89 | 0.2841 | -735.0 | -614.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.89 | 176.06 | -16.79 | 73.00 | 0.2980 | -779.0 | -528.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.66 | 175.88 | -16.97 | 80.55 | 0.2938 | -856.0 | -655.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 6.92 | 175.79 | -17.06 | 86.50 | 0.2931 | -733.0 | -592.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 9.71 | 175.64 | -17.22 | 77.14 | 0.3005 | -848.0 | -758.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.86 | 175.68 | -17.17 | 79.94 | 0.2976 | -797.0 | -636.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 10.84 | 175.54 | -17.31 | 73.56 | 0.3060 | -606.0 | -492.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.23 | 175.51 | -17.34 | 75.54 | 0.3042 | -833.0 | -654.7 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 9.19 | 175.50 | -17.35 | 78.93 | 0.3013 | -1013.0 | -741.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.59 | 175.42 | -17.43 | 77.69 | 0.3037 | -718.0 | -618.9 | |
| 9.85 | 152.31 | 5.13 | 79.56 | 10.22 | 175.22 | -17.63 | 75.77 | 0.3089 | -169.0 | 318.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 12.20 | 175.10 | -17.75 | 69.73 | 0.3191 | -685.0 | -500.2 | |
| 1.45 | -32.00 | 0.75 | -32.00 | 9.45 | 175.00 | -17.85 | 78.35 | 0.3101 | -889.6 | 999999 | |
| 1.72 | -32.00 | 0.90 | -32.00 | 10.38 | 174.63 | -18.22 | 75.63 | 0.3189 | 1131.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.38 | 174.43 | -18.42 | 72.73 | 0.3258 | 857.0 | 630.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 11.35 | 174.24 | -18.61 | 72.98 | 0.3287 | 838.0 | 714.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 10.52 | 174.23 | -18.62 | 75.45 | 0.3258 | 871.0 | 731.7 | |
| 4.52 | -32.00 | 2.37 | -32.00 | 10.38 | 173.65 | -19.20 | 76.22 | 0.3346 | 1143.6 | 999999 | |
| 0.54 | 2.08 | 0.29 | 1.10 | 10.24 | 173.03 | -19.82 | 76.96 | 0.3439 | 1113.3 | 906.5 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 7.78 | 173.17 | -19.68 | 84.13 | 0.3369 | 828.0 | 526.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.56 | 173.12 | -19.74 | 84.78 | 0.3376 | 937.0 | 713.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.08 | 172.78 | -20.07 | 77.55 | 0.3475 | 1007.0 | 743.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 13.15 | 172.42 | -20.43 | 69.34 | 0.3649 | 851.0 | 800.9 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 10.52 | 172.32 | -20.53 | 76.53 | 0.3560 | 714.0 | 594.8 | |
| 0.00 | 6.05 | 0.00 | 3.20 | 9.64 | 172.35 | -20.50 | 78.99 | 0.3533 | 1054.0 | 875.4 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 10.27 | 172.27 | -20.58 | 77.24 | 0.3561 | 913.0 | 761.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 12.92 | 172.04 | -20.81 | 70.23 | 0.3696 | 909.0 | 679.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 9.30 | 172.27 | -20.58 | 79.97 | 0.3538 | 713.0 | 634.7 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 6.96 | 172.33 | -20.52 | 86.63 | 0.3501 | 955.0 | 696.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 9.90 | 172.13 | -20.72 | 78.33 | 0.3574 | 916.0 | 753.0 | |
| 2.62 | 144.36 | 1.39 | 77.04 | 9.62 | 171.82 | -21.03 | 79.25 | 0.3617 | 1155.4 | 504.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 11.10 | 171.62 | -21.23 | 75.30 | 0.3690 | 751.0 | 531.1 | |
| 4.61 | -52.00 | 2.45 | -52.00 | 9.55 | 171.69 | -21.16 | 79.47 | 0.3636 | 1229.0 | 999999 | |
| 0.63 | -52.00 | 0.34 | -52.00 | 9.27 | 171.55 | -21.31 | 80.29 | 0.3654 | 1084.4 | 999999 | |
| 5.60 | -52.00 | 2.98 | -52.00 | 9.70 | 171.49 | -21.37 | 79.15 | 0.3672 | 1034.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.42 | 171.62 | -21.23 | 85.38 | 0.3619 | 718.0 | 588.0 | |
| 2.53 | -52.00 | 1.35 | -52.00 | 9.48 | 171.43 | -21.42 | 79.76 | 0.3676 | 1162.8 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 11.12 | 171.32 | -21.53 | 75.41 | 0.3737 | 473.0 | 618.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 11.88 | 171.09 | -21.76 | 73.57 | 0.3799 | 600.0 | 466.2 | |
| 4.88 | -52.00 | 2.60 | -52.00 | 9.41 | 171.14 | -21.71 | 80.05 | 0.3721 | 1181.2 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.49 | 8.68 | 171.15 | -21.70 | 82.01 | 0.3707 | 866.0 | 663.5 | |
| 0.27 | -52.00 | 0.14 | -52.00 | 9.52 | 170.93 | -21.92 | 79.81 | 0.3756 | 857.3 | 999999 | |
| 6.59 | -52.00 | 3.52 | -52.00 | 9.16 | 170.92 | -21.93 | 80.79 | 0.3751 | 1060.4 | 999999 | |
| 6.32 | -52.00 | 3.38 | -52.00 | 9.39 | 170.78 | -22.08 | 80.20 | 0.3779 | 962.1 | 999999 | |
| 1.90 | -52.00 | 1.01 | -52.00 | 8.88 | 170.81 | -22.04 | 81.56 | 0.3765 | 923.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 6.84 | 170.85 | -22.00 | 87.00 | 0.3740 | 766.0 | 629.5 | |
| 0.54 | -52.00 | 0.29 | -52.00 | 8.63 | 170.72 | -22.13 | 82.23 | 0.3775 | 668.3 | 999999 | |
| 1.81 | 3.79 | 0.97 | 2.04 | 12.37 | 170.41 | -22.44 | 72.71 | 0.3922 | -977.9 | -799.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 10.23 | 168.94 | -23.91 | 78.66 | 0.4086 | 780.0 | 537.1 | |
| 0.00 | 4.43 | 0.00 | 2.42 | 10.50 | 167.93 | -24.92 | 78.36 | 0.4248 | 744.0 | 663.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 12.58 | 165.37 | -27.48 | 74.66 | 0.4689 | 757.0 | 599.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 10.74 | 163.99 | -28.87 | 78.93 | 0.4853 | 802.0 | 590.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 4.96 | 163.65 | -29.21 | 90.88 | 0.4881 | 641.0 | 583.9 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 9.03 | 161.04 | -31.81 | 82.79 | 0.5268 | 590.0 | 405.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
