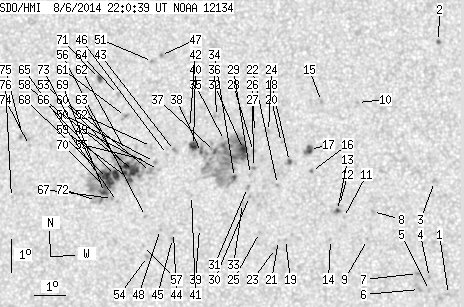

SDO HMI 2014-08-06 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.64 | 365.88 | 29.87 | 191.82 | 9.76 | 173.53 | -18.77 | 77.78 | 0.3260 | 218.0 | 259.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.91 | 6.08 | 181.91 | -10.39 | 89.96 | 0.1802 | -805.0 | -660.8 | |
| 0.45 | 1.72 | 0.23 | 0.87 | 13.78 | 181.35 | -10.95 | 53.95 | 0.2292 | -1091.0 | -899.1 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 9.51 | 181.39 | -10.91 | 72.17 | 0.1970 | -834.0 | -711.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 6.59 | 181.31 | -10.99 | 87.24 | 0.1905 | -842.0 | -701.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 6.19 | 181.32 | -10.98 | 89.32 | 0.1903 | -836.0 | -732.2 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 6.21 | 181.00 | -11.30 | 89.18 | 0.1956 | -944.0 | -806.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 6.70 | 180.93 | -11.37 | 86.70 | 0.1970 | -1083.0 | -892.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.55 | 179.47 | -12.83 | 78.62 | 0.2250 | -965.0 | -763.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.70 | 179.34 | -12.96 | 82.48 | 0.2252 | -808.0 | -608.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.86 | 178.86 | -13.44 | 65.85 | 0.2504 | -895.0 | -682.2 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 8.35 | 178.56 | -13.74 | 80.10 | 0.2396 | -957.0 | -740.6 | |
| 0.00 | 2.89 | 0.00 | 1.48 | 8.71 | 178.42 | -13.88 | 78.70 | 0.2429 | -788.0 | -616.2 | |
| 0.99 | 2.80 | 0.51 | 1.43 | 8.56 | 178.36 | -13.94 | 79.36 | 0.2434 | -1112.2 | -894.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 7.67 | 178.17 | -14.13 | 83.08 | 0.2448 | -803.0 | -652.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.87 | 177.70 | -14.59 | 67.42 | 0.2683 | -848.0 | -667.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.72 | 177.49 | -14.81 | 75.44 | 0.2615 | -1027.0 | -860.9 | |
| 2.89 | 6.32 | 1.49 | 3.25 | 10.39 | 177.39 | -14.90 | 73.05 | 0.2657 | -1137.3 | -863.9 | |
| 0.99 | 3.25 | 0.51 | 1.68 | 10.01 | 176.77 | -15.53 | 74.97 | 0.2742 | -1081.5 | -836.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 7.63 | 176.74 | -15.55 | 83.69 | 0.2686 | -846.0 | -621.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 10.58 | 176.49 | -15.81 | 73.20 | 0.2810 | -718.0 | -501.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 7.60 | 176.52 | -15.78 | 83.89 | 0.2722 | -641.0 | -490.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.30 | 176.42 | -15.88 | 77.76 | 0.2775 | -867.0 | -676.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.35 | 176.44 | -15.86 | 84.81 | 0.2734 | -819.0 | -571.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.90 | 176.05 | -16.25 | 72.49 | 0.2894 | -736.0 | -555.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 7.82 | 175.91 | -16.39 | 83.24 | 0.2828 | -679.0 | -536.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.86 | 175.60 | -16.70 | 73.02 | 0.2963 | -542.0 | -441.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 9.79 | 175.63 | -16.67 | 76.55 | 0.2920 | -932.0 | -765.6 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 10.28 | 175.60 | -16.70 | 74.93 | 0.2941 | -731.0 | -611.8 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 9.58 | 175.54 | -16.76 | 77.33 | 0.2927 | -701.0 | -532.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 8.91 | 175.54 | -16.76 | 79.61 | 0.2909 | -792.0 | -593.3 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 9.18 | 175.46 | -16.84 | 78.72 | 0.2928 | -956.0 | -763.2 | |
| 4.07 | 143.29 | 2.11 | 74.61 | 10.33 | 175.28 | -17.02 | 75.00 | 0.2995 | -423.3 | 330.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 8.69 | 175.33 | -16.97 | 80.46 | 0.2939 | -668.0 | -561.9 | |
| 0.81 | -32.00 | 0.42 | -32.00 | 9.47 | 175.03 | -17.27 | 77.99 | 0.3007 | -849.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 10.59 | 174.65 | -17.65 | 74.63 | 0.3105 | 559.0 | 591.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 11.31 | 174.34 | -17.96 | 72.61 | 0.3182 | 656.0 | 687.7 | |
| 0.99 | -32.00 | 0.52 | -32.00 | 10.24 | 174.34 | -17.96 | 75.92 | 0.3142 | 1163.1 | 999999 | |
| 0.72 | -32.00 | 0.38 | -32.00 | 10.20 | 173.92 | -18.38 | 76.31 | 0.3208 | 1084.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 7.89 | 173.98 | -18.32 | 83.53 | 0.3148 | -630.0 | -383.9 | |
| 4.61 | -32.00 | 2.41 | -32.00 | 10.40 | 173.65 | -18.65 | 75.85 | 0.3258 | 1128.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.88 | 173.67 | -18.63 | 80.50 | 0.3214 | 704.0 | 478.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.92 | 173.49 | -18.81 | 74.41 | 0.3302 | 927.0 | 710.9 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 10.23 | 173.04 | -19.26 | 76.71 | 0.3350 | 1142.0 | 896.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 7.74 | 173.14 | -19.16 | 84.17 | 0.3283 | 953.0 | 681.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 7.55 | 173.12 | -19.18 | 84.74 | 0.3285 | 944.0 | 798.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.10 | 172.82 | -19.48 | 77.21 | 0.3382 | 891.0 | 685.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.11 | 172.37 | -19.93 | 69.05 | 0.3570 | 1028.0 | 913.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 7.81 | 172.71 | -19.59 | 84.02 | 0.3354 | 865.0 | 633.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 9.64 | 172.55 | -19.75 | 78.69 | 0.3412 | 935.0 | 728.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 9.87 | 172.40 | -19.89 | 78.07 | 0.3441 | 919.0 | 821.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 12.92 | 172.12 | -20.18 | 69.77 | 0.3599 | 917.0 | 797.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 10.33 | 172.28 | -20.02 | 76.83 | 0.3474 | 807.0 | 767.7 | |
| 0.00 | 4.97 | 0.00 | 2.62 | 9.57 | 172.29 | -20.01 | 79.00 | 0.3452 | 960.0 | 805.2 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 6.98 | 172.33 | -19.97 | 86.54 | 0.3411 | 804.0 | 683.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 9.90 | 172.14 | -20.16 | 78.12 | 0.3484 | 863.0 | 756.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 8.19 | 172.20 | -20.09 | 83.01 | 0.3441 | 894.0 | 723.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.31 | 172.18 | -20.12 | 85.59 | 0.3436 | 756.0 | 564.0 | |
| 7.32 | 51.32 | 3.87 | 27.20 | 9.58 | 171.73 | -20.57 | 79.20 | 0.3542 | 1215.8 | 662.1 | |
| 2.17 | -58.00 | 1.15 | -58.00 | 9.30 | 171.62 | -20.68 | 80.02 | 0.3554 | 1078.4 | 999999 | |
| 6.05 | -58.00 | 3.21 | -58.00 | 9.69 | 171.53 | -20.77 | 78.96 | 0.3577 | 1042.9 | 999999 | |
| 0.00 | 3.43 | 0.00 | 1.83 | 11.21 | 171.36 | -20.94 | 74.88 | 0.3648 | 833.0 | 556.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.17 | 171.43 | -20.87 | 77.66 | 0.3605 | 65.0 | 76.3 | |
| 1.72 | -58.00 | 0.91 | -58.00 | 9.47 | 171.44 | -20.86 | 79.59 | 0.3586 | 1201.2 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.35 | 11.87 | 171.07 | -21.23 | 73.28 | 0.3715 | 698.0 | 478.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 8.61 | 171.26 | -21.04 | 82.03 | 0.3599 | 902.0 | 674.2 | |
| 5.24 | 57.10 | 2.78 | 30.42 | 9.40 | 171.15 | -21.15 | 79.89 | 0.3631 | 1170.9 | 467.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 8.70 | 171.09 | -21.21 | 81.84 | 0.3628 | 939.0 | 794.1 | |
| 13.19 | -66.00 | 7.02 | -66.00 | 9.30 | 170.89 | -21.41 | 80.25 | 0.3670 | 1015.9 | 999999 | |
| 2.17 | -66.00 | 1.15 | -66.00 | 8.87 | 170.82 | -21.48 | 81.44 | 0.3674 | 933.6 | 999999 | |
| 0.81 | -66.00 | 0.43 | -66.00 | 9.05 | 170.81 | -21.49 | 80.95 | 0.3679 | 952.8 | 999999 | |
| 1.45 | 3.61 | 0.77 | 1.94 | 12.34 | 170.40 | -21.90 | 72.49 | 0.3837 | -1038.8 | -820.5 | |
| 0.00 | 6.69 | 0.00 | 3.56 | 8.62 | 170.57 | -21.73 | 82.19 | 0.3711 | 7.0 | 163.6 | |
| 0.00 | 3.98 | 0.00 | 2.12 | 9.65 | 170.44 | -21.86 | 79.47 | 0.3750 | 540.0 | 516.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 10.20 | 168.22 | -24.08 | 78.81 | 0.4111 | 809.0 | 547.4 | |
| 0.00 | 3.16 | 0.00 | 1.72 | 10.50 | 167.96 | -24.34 | 78.19 | 0.4158 | 813.0 | 673.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 8.59 | 167.73 | -24.57 | 82.81 | 0.4162 | 613.0 | 505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
