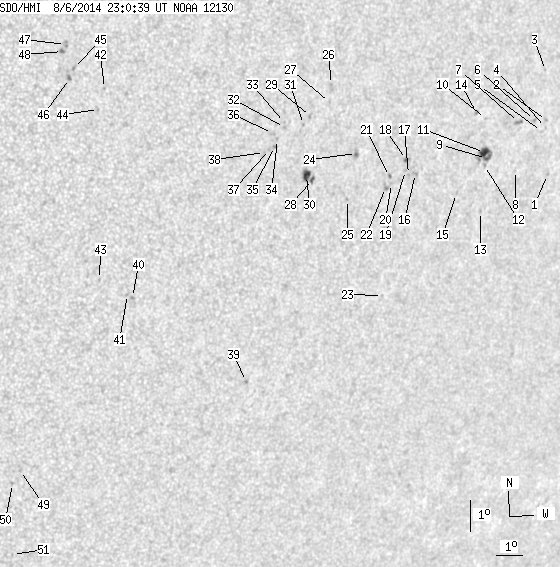

SDO HMI 2014-08-06 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.92 | 91.18 | 9.29 | 59.31 | -7.81 | 229.20 | 37.45 | 249.62 | 0.6429 | 301.3 | 251.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-06 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.66 | -8.58 | 237.22 | 45.47 | 252.45 | 0.7417 | 575.0 | 495.7 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -6.87 | 236.94 | 45.20 | 254.58 | 0.7330 | 578.0 | 435.4 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -5.30 | 236.73 | 44.98 | 256.60 | 0.7259 | 503.0 | 410.7 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -7.09 | 236.93 | 45.18 | 254.29 | 0.7335 | 410.0 | 391.9 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -7.20 | 236.76 | 45.02 | 254.08 | 0.7320 | 357.0 | 278.9 | |
| 0.00 | 1.72 | 0.00 | 1.23 | -6.83 | 236.42 | 44.67 | 254.45 | 0.7268 | 580.0 | 538.1 | |
| 0.00 | 3.07 | 0.00 | 2.18 | -6.84 | 235.73 | 43.98 | 254.18 | 0.7189 | 801.0 | 674.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -8.34 | 235.79 | 44.05 | 252.20 | 0.7248 | 434.0 | 442.0 | |
| 1.36 | 15.81 | 0.95 | 11.03 | -7.87 | 234.50 | 42.75 | 252.32 | 0.7081 | 703.3 | 540.4 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -6.61 | 234.31 | 42.56 | 253.96 | 0.7014 | -420.0 | -372.0 | |
| 5.96 | -9.00 | 4.16 | -9.00 | -7.67 | 234.39 | 42.64 | 252.54 | 0.7061 | 759.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -8.08 | 234.44 | 42.70 | 252.00 | 0.7082 | 622.0 | 572.3 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -9.53 | 234.48 | 42.73 | 250.08 | 0.7141 | 593.0 | 490.0 | |
| 0.00 | 2.08 | 0.00 | 1.43 | -6.39 | 233.91 | 42.17 | 254.11 | 0.6959 | 640.0 | 507.8 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -8.88 | 233.39 | 41.64 | 250.46 | 0.6989 | 416.0 | 404.4 | |
| 0.00 | 1.99 | 0.00 | 1.33 | -8.12 | 231.62 | 39.87 | 250.70 | 0.6747 | 624.0 | 598.3 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -8.14 | 231.34 | 39.59 | 250.55 | 0.6714 | 557.0 | 461.9 | |
| 0.63 | 1.36 | 0.42 | 0.90 | -7.66 | 231.21 | 39.46 | 251.17 | 0.6678 | 725.1 | 567.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -8.00 | 231.20 | 39.46 | 250.68 | 0.6692 | 457.0 | 484.2 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -8.37 | 230.69 | 38.94 | 249.90 | 0.6645 | 714.0 | 606.5 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -8.15 | 230.58 | 38.84 | 250.17 | 0.6622 | 793.0 | 660.1 | |
| 0.00 | 3.43 | 0.00 | 2.26 | -8.48 | 230.47 | 38.72 | 249.63 | 0.6622 | 775.0 | 603.8 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -11.92 | 230.85 | 39.10 | 245.05 | 0.6829 | 450.0 | 352.2 | |
| 0.00 | 3.25 | 0.00 | 2.10 | -7.33 | 229.21 | 37.46 | 250.67 | 0.6415 | 774.0 | 649.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -8.76 | 229.01 | 37.27 | 248.48 | 0.6456 | -629.0 | -519.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -5.11 | 228.07 | 36.32 | 253.48 | 0.6176 | 751.0 | 566.6 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -5.67 | 228.03 | 36.28 | 252.60 | 0.6194 | 455.0 | 445.2 | |
| 1.36 | 10.03 | 0.86 | 6.33 | -8.04 | 227.59 | 35.84 | 248.76 | 0.6243 | 538.2 | 535.2 | |
| 0.00 | 1.90 | 0.00 | 1.19 | -6.06 | 227.34 | 35.59 | 251.66 | 0.6120 | 749.0 | 595.0 | |
| 4.61 | -28.00 | 2.90 | -28.00 | -7.89 | 227.35 | 35.60 | 248.84 | 0.6206 | 853.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -6.29 | 227.09 | 35.35 | 251.17 | 0.6098 | 561.0 | 520.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -6.34 | 226.39 | 34.64 | 250.71 | 0.6008 | 321.0 | 378.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -6.18 | 226.38 | 34.63 | 250.95 | 0.5999 | 773.0 | 648.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -6.69 | 226.15 | 34.41 | 250.02 | 0.5994 | 766.0 | 588.7 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -6.91 | 226.06 | 34.31 | 249.63 | 0.5992 | 804.0 | 616.3 | |
| 0.00 | 2.26 | 0.00 | 1.39 | -6.49 | 225.95 | 34.21 | 250.22 | 0.5958 | 574.0 | 474.8 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -6.99 | 225.88 | 34.13 | 249.40 | 0.5972 | 760.0 | 634.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -7.07 | 225.70 | 33.96 | 249.16 | 0.5953 | 727.0 | 613.6 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -14.35 | 225.96 | 34.21 | 238.59 | 0.6405 | -839.0 | -716.6 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -11.37 | 221.34 | 29.59 | 239.27 | 0.5653 | -857.0 | -658.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -11.27 | 221.15 | 29.40 | 239.27 | 0.5622 | -670.0 | -538.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -4.74 | 219.84 | 28.09 | 249.35 | 0.5035 | -511.0 | -306.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -10.73 | 220.10 | 28.35 | 239.19 | 0.5453 | -527.0 | -457.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.38 | 219.66 | 27.92 | 248.03 | 0.5046 | -656.0 | -581.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -4.07 | 218.75 | 27.00 | 249.84 | 0.4843 | -801.0 | -663.9 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -4.37 | 218.62 | 26.87 | 249.17 | 0.4842 | -835.0 | -772.7 | |
| 0.00 | 2.89 | 0.00 | 1.63 | -3.31 | 218.45 | 26.70 | 251.11 | 0.4760 | -531.0 | -646.2 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -3.52 | 218.35 | 26.61 | 250.63 | 0.4757 | -839.0 | -747.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -16.79 | 218.07 | 26.33 | 228.20 | 0.5717 | -538.0 | -440.7 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -17.21 | 217.85 | 26.10 | 227.40 | 0.5731 | -530.0 | -439.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.60 | 218.24 | 26.50 | 224.73 | 0.5994 | -546.0 | -463.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
