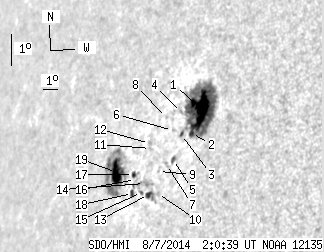

SDO HMI 2014-08-07 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.66 | 242.31 | 61.69 | 256.63 | 11.46 | 127.43 | -62.66 | 80.26 | 0.8847 | -154.1 | -25.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.27 | 132.86 | 32.03 | 132.15 | 12.66 | 129.43 | -60.66 | 78.94 | 0.8687 | -821.5 | -217.8 | |
| 2.26 | -1.00 | 2.26 | -1.00 | 11.86 | 129.16 | -60.93 | 79.86 | 0.8709 | -357.2 | 999999 | |
| 0.81 | -1.00 | 0.83 | -1.00 | 11.77 | 128.54 | -61.55 | 79.95 | 0.8761 | 27.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.39 | 12.43 | 128.28 | -61.81 | 79.20 | 0.8782 | 462.0 | 420.0 | |
| 1.08 | 2.44 | 1.12 | 2.51 | 10.98 | 128.31 | -61.78 | 80.86 | 0.8781 | -340.3 | -182.5 | |
| 0.00 | 0.63 | 0.00 | 0.66 | 11.84 | 127.92 | -62.17 | 79.87 | 0.8812 | 410.0 | 416.9 | |
| 0.00 | 2.17 | 0.00 | 2.26 | 10.79 | 127.92 | -62.18 | 81.07 | 0.8814 | 452.0 | 206.5 | |
| 0.00 | 1.08 | 0.00 | 1.15 | 12.19 | 127.37 | -62.72 | 79.46 | 0.8856 | 373.0 | 287.6 | |
| 0.00 | 0.72 | 0.00 | 0.76 | 10.53 | 127.47 | -62.62 | 81.35 | 0.8850 | 303.0 | 273.0 | |
| 0.00 | 1.72 | 0.00 | 1.80 | 9.86 | 127.63 | -62.46 | 82.10 | 0.8839 | 317.0 | 264.7 | |
| 0.00 | 1.08 | 0.00 | 1.17 | 11.16 | 126.68 | -63.41 | 80.61 | 0.8911 | 317.0 | 203.8 | |
| 0.00 | 1.81 | 0.00 | 1.96 | 11.31 | 126.55 | -63.54 | 80.44 | 0.8921 | 372.0 | 276.6 | |
| 2.71 | 6.87 | 2.90 | 7.32 | 9.78 | 127.05 | -63.05 | 82.18 | 0.8885 | 651.6 | 560.6 | |
| 0.00 | 7.86 | 0.00 | 8.52 | 10.08 | 126.67 | -63.43 | 81.82 | 0.8915 | 532.0 | 529.5 | |
| 0.54 | 1.72 | 0.59 | 1.87 | 9.79 | 126.56 | -63.54 | 82.14 | 0.8924 | 579.0 | 552.0 | |
| 0.00 | 2.17 | 0.00 | 2.40 | 10.14 | 126.01 | -64.08 | 81.73 | 0.8965 | 538.0 | 483.8 | |
| 1.72 | 3.25 | 1.91 | 3.62 | 10.28 | 125.82 | -64.28 | 81.57 | 0.8980 | 478.2 | 482.5 | |
| 1.63 | 4.34 | 1.81 | 4.83 | 9.70 | 125.95 | -64.14 | 82.22 | 0.8971 | 459.8 | 456.3 | |
| 15.64 | 70.23 | 18.24 | 82.26 | 10.22 | 124.59 | -65.51 | 81.59 | 0.9071 | 459.5 | 35.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
