SDO HMI 2014-08-07 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.41 | 0.00 | 21.79 | -7.60 | 249.93 | 60.93 | 258.03 | 0.8869 | 54.7 | 222.0 | |
|
previous
or next observation for the same group /

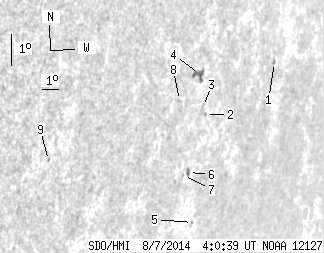

back to the solar disc SDO HMI 2014-08-07 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 2.17 | -6.71 | 254.76 | 65.76 | 259.97 | 0.9213 | 376.0 | 309.1 | |
| 0.00 | 1.08 | 0.00 | 1.17 | -7.89 | 250.26 | 61.27 | 257.80 | 0.8905 | 475.0 | 399.4 | |
| 0.00 | 2.53 | 0.00 | 2.71 | -7.62 | 250.07 | 61.07 | 258.05 | 0.8886 | 468.0 | 348.0 | |
| 0.00 | 8.95 | 0.00 | 9.37 | -6.58 | 249.58 | 60.59 | 259.11 | 0.8831 | 636.0 | 482.3 | |
| 0.00 | 0.81 | 0.00 | 0.91 | -11.29 | 250.48 | 61.48 | 254.11 | 0.8977 | -283.0 | -196.2 | |
| 0.00 | 2.80 | 0.00 | 3.00 | -9.64 | 249.67 | 60.67 | 255.73 | 0.8887 | -523.0 | -417.9 | |
| 0.00 | 0.63 | 0.00 | 0.67 | -9.71 | 249.37 | 60.37 | 255.59 | 0.8865 | -518.0 | -494.7 | |
| 0.00 | 1.08 | 0.00 | 1.10 | -7.28 | 248.49 | 59.50 | 258.09 | 0.8754 | 243.0 | 202.8 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -8.50 | 241.49 | 52.50 | 254.88 | 0.8149 | -382.0 | -318.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
