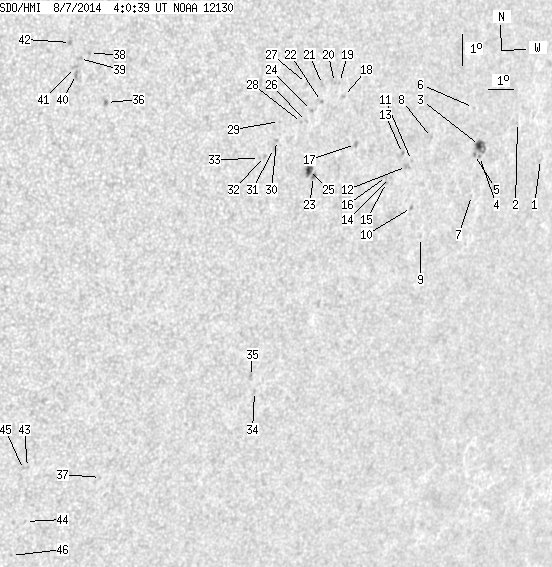

SDO HMI 2014-08-07 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.86 | 79.37 | 6.13 | 52.78 | -7.93 | 228.08 | 39.08 | 250.41 | 0.6638 | 253.3 | 195.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.56 | -8.33 | 237.34 | 48.34 | 253.77 | 0.7722 | 558.0 | 554.0 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -7.08 | 236.10 | 47.10 | 254.95 | 0.7551 | 580.0 | 523.7 | |
| 4.07 | 9.94 | 2.98 | 7.29 | -7.66 | 234.48 | 45.49 | 253.63 | 0.7389 | 807.4 | 561.7 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -8.01 | 234.53 | 45.53 | 253.19 | 0.7405 | 601.0 | 508.4 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -7.93 | 234.30 | 45.30 | 253.21 | 0.7377 | 730.0 | 600.1 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -6.45 | 234.07 | 45.07 | 255.08 | 0.7303 | 235.0 | 282.2 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -9.22 | 234.36 | 45.37 | 251.56 | 0.7427 | 542.0 | 493.2 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -7.25 | 232.36 | 43.36 | 253.38 | 0.7131 | -393.0 | -388.2 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -10.38 | 232.35 | 43.35 | 249.21 | 0.7246 | 504.0 | 482.1 | |
| 0.00 | 1.81 | 0.00 | 1.28 | -9.40 | 231.81 | 42.81 | 250.27 | 0.7146 | -398.0 | -230.4 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -7.91 | 231.60 | 42.60 | 252.18 | 0.7065 | 425.0 | 377.5 | |
| 0.00 | 3.71 | 0.00 | 2.58 | -8.08 | 231.41 | 42.42 | 251.87 | 0.7050 | 774.0 | 636.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -7.66 | 231.19 | 42.20 | 252.35 | 0.7008 | 628.0 | 573.1 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -8.38 | 230.79 | 41.79 | 251.19 | 0.6988 | 579.0 | 576.2 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -8.52 | 230.64 | 41.64 | 250.93 | 0.6976 | 576.0 | 485.8 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -8.33 | 230.62 | 41.62 | 251.18 | 0.6966 | 714.0 | 624.2 | |
| 0.00 | 2.53 | 0.00 | 1.70 | -7.23 | 229.22 | 40.22 | 252.10 | 0.6755 | 747.0 | 617.5 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -5.69 | 228.60 | 39.60 | 254.04 | 0.6620 | 471.0 | 319.0 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -5.25 | 228.40 | 39.41 | 254.61 | 0.6579 | 598.0 | 549.3 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -5.23 | 228.20 | 39.21 | 254.55 | 0.6554 | 660.0 | 652.5 | |
| 0.00 | 1.90 | 0.00 | 1.23 | -5.26 | 227.73 | 38.74 | 254.31 | 0.6495 | 611.0 | 532.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -5.79 | 227.73 | 38.74 | 253.53 | 0.6515 | 573.0 | 476.5 | |
| 0.81 | 2.53 | 0.54 | 1.66 | -8.12 | 227.65 | 38.65 | 250.09 | 0.6598 | 531.0 | 393.0 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -6.04 | 227.36 | 38.37 | 252.99 | 0.6477 | 741.0 | 671.3 | |
| 3.98 | 6.42 | 2.61 | 4.20 | -7.92 | 227.43 | 38.43 | 250.28 | 0.6563 | 779.8 | 552.6 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -6.37 | 227.20 | 38.20 | 252.42 | 0.6469 | 640.0 | 496.0 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -5.19 | 227.10 | 38.10 | 254.15 | 0.6411 | 543.0 | 502.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -6.39 | 227.00 | 38.00 | 252.31 | 0.6445 | 594.0 | 513.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -6.30 | 226.14 | 37.15 | 252.03 | 0.6332 | 553.0 | 587.1 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -6.89 | 226.08 | 37.08 | 251.12 | 0.6349 | 850.0 | 669.4 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -7.13 | 225.98 | 36.99 | 250.71 | 0.6348 | 467.0 | 433.8 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -7.36 | 225.66 | 36.66 | 250.20 | 0.6317 | 560.0 | 551.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -7.41 | 225.47 | 36.48 | 250.03 | 0.6295 | 537.0 | 453.7 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -14.87 | 226.38 | 37.39 | 240.06 | 0.6795 | -686.0 | -592.1 | |
| 0.00 | 3.53 | 0.00 | 2.36 | -14.37 | 226.13 | 37.13 | 240.55 | 0.6737 | -735.0 | -616.3 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -5.31 | 219.69 | 30.69 | 250.06 | 0.5427 | -724.0 | -642.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -17.33 | 220.93 | 31.93 | 232.78 | 0.6363 | -376.0 | -415.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -3.75 | 219.01 | 30.02 | 252.40 | 0.5257 | -735.0 | -630.8 | |
| 0.00 | 2.17 | 0.00 | 1.26 | -3.89 | 218.67 | 29.67 | 251.94 | 0.5215 | -256.0 | -419.0 | |
| 0.00 | 3.07 | 0.00 | 1.78 | -4.38 | 218.58 | 29.58 | 251.00 | 0.5227 | -774.0 | -664.0 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -4.16 | 218.50 | 29.50 | 251.35 | 0.5204 | -749.0 | -604.3 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -3.37 | 218.33 | 29.34 | 252.68 | 0.5143 | -909.0 | -746.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -16.83 | 218.14 | 29.14 | 230.95 | 0.6024 | -506.0 | -428.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -18.64 | 218.39 | 29.39 | 228.82 | 0.6201 | -521.0 | -374.9 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -16.89 | 218.00 | 29.01 | 230.74 | 0.6014 | -519.0 | -528.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.76 | 218.09 | 29.09 | 227.12 | 0.6267 | -593.0 | -494.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
