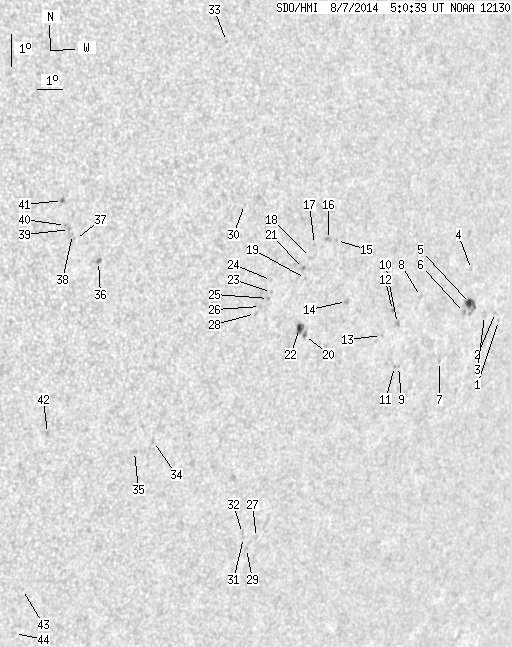

SDO HMI 2014-08-07 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.85 | 78.32 | 7.66 | 52.68 | -7.93 | 228.22 | 39.77 | 250.66 | 0.6720 | 159.2 | 155.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.55 | -8.32 | 235.92 | 47.47 | 253.49 | 0.7628 | 461.0 | 410.6 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -8.06 | 235.74 | 47.29 | 253.76 | 0.7600 | 577.0 | 513.0 | |
| 0.00 | 2.17 | 0.00 | 1.63 | -8.11 | 235.25 | 46.80 | 253.52 | 0.7548 | 147.0 | 238.9 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -6.61 | 234.46 | 46.02 | 255.19 | 0.7416 | -466.0 | -328.8 | |
| 6.06 | 11.75 | 4.49 | 8.71 | -7.68 | 234.56 | 46.11 | 253.83 | 0.7459 | 735.6 | 518.5 | |
| 0.00 | 1.72 | 0.00 | 1.27 | -7.94 | 234.33 | 45.88 | 253.41 | 0.7442 | 723.0 | 638.4 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -9.41 | 233.46 | 45.01 | 251.18 | 0.7394 | 498.0 | 438.4 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -7.28 | 232.33 | 43.88 | 253.53 | 0.7193 | -327.0 | -336.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -9.43 | 231.69 | 43.24 | 250.42 | 0.7196 | -121.0 | -136.6 | |
| 0.00 | 2.89 | 0.00 | 2.03 | -8.06 | 231.45 | 43.00 | 252.14 | 0.7118 | 736.0 | 663.9 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -9.41 | 231.52 | 43.07 | 250.36 | 0.7176 | 215.0 | 302.2 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -7.63 | 231.19 | 42.74 | 252.61 | 0.7072 | 634.0 | 578.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -8.39 | 230.82 | 42.37 | 251.43 | 0.7057 | 607.0 | 577.1 | |
| 0.00 | 3.25 | 0.00 | 2.20 | -7.21 | 229.24 | 40.79 | 252.38 | 0.6823 | 733.0 | 564.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -5.27 | 228.66 | 40.21 | 254.90 | 0.6681 | 568.0 | 510.8 | |
| 0.00 | 3.07 | 0.00 | 2.03 | -5.21 | 228.33 | 39.88 | 254.85 | 0.6638 | 662.0 | 618.3 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -5.33 | 227.78 | 39.33 | 254.46 | 0.6573 | 677.0 | 603.0 | |
| 0.00 | 1.81 | 0.00 | 1.19 | -5.72 | 227.66 | 39.21 | 253.83 | 0.6572 | 656.0 | 557.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -6.37 | 227.51 | 39.06 | 252.82 | 0.6578 | 611.0 | 444.6 | |
| 0.63 | 2.71 | 0.42 | 1.80 | -8.15 | 227.66 | 39.21 | 250.32 | 0.6669 | 538.3 | 429.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -6.05 | 227.41 | 38.96 | 253.24 | 0.6552 | 811.0 | 702.9 | |
| 4.16 | 6.69 | 2.75 | 4.42 | -7.92 | 227.43 | 38.98 | 250.54 | 0.6631 | 786.5 | 524.4 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -6.71 | 226.21 | 37.76 | 251.71 | 0.6428 | 630.0 | 571.1 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -6.34 | 226.18 | 37.73 | 252.26 | 0.6408 | 827.0 | 734.8 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -6.89 | 226.11 | 37.66 | 251.40 | 0.6423 | 873.0 | 738.5 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -7.12 | 225.82 | 37.37 | 250.91 | 0.6396 | 712.0 | 558.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -14.51 | 226.76 | 38.31 | 241.11 | 0.6878 | -639.0 | -537.1 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -7.33 | 225.65 | 37.20 | 250.52 | 0.6383 | 582.0 | 517.9 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -14.84 | 226.43 | 37.98 | 240.47 | 0.6860 | -614.0 | -542.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -3.90 | 224.98 | 36.53 | 255.44 | 0.6158 | -382.0 | -344.2 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -14.47 | 226.24 | 37.79 | 240.83 | 0.6817 | -701.0 | -588.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -14.34 | 226.17 | 37.72 | 240.97 | 0.6802 | -773.0 | -627.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 1.15 | 224.22 | 35.77 | 263.40 | 0.5904 | -584.0 | -482.3 | |
| 0.00 | 1.72 | 0.00 | 1.08 | -11.13 | 222.22 | 33.77 | 242.82 | 0.6153 | -645.0 | -488.1 | |
| 0.00 | 2.44 | 0.00 | 1.52 | -11.41 | 221.55 | 33.10 | 241.94 | 0.6088 | -531.0 | -421.5 | |
| 0.00 | 2.62 | 0.00 | 1.55 | -5.33 | 219.68 | 31.23 | 250.35 | 0.5502 | -771.0 | -620.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -4.60 | 218.82 | 30.37 | 251.09 | 0.5348 | -452.0 | -432.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -4.44 | 218.71 | 30.26 | 251.31 | 0.5324 | -676.0 | -575.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -4.28 | 218.59 | 30.14 | 251.52 | 0.5301 | -806.0 | -687.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -4.15 | 218.45 | 30.00 | 251.67 | 0.5274 | -775.0 | -624.4 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -3.37 | 218.31 | 29.86 | 253.00 | 0.5218 | -901.0 | -755.7 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -10.64 | 218.29 | 29.84 | 240.59 | 0.5635 | -74.0 | -53.6 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -15.64 | 218.05 | 29.60 | 233.00 | 0.5979 | -410.0 | -353.8 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -17.08 | 218.00 | 29.55 | 230.99 | 0.6089 | -616.0 | -455.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
