SDO HMI 2014-08-07 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.45 | 301.60 | 64.72 | 297.13 | 11.66 | 127.60 | -60.30 | 80.05 | 0.8651 | -119.5 | -66.1 | |
|
previous
or next observation for the same group /

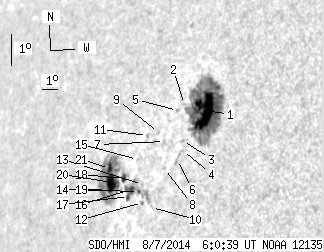

back to the solar disc SDO HMI 2014-08-07 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.16 | 171.97 | 34.52 | 159.82 | 12.82 | 129.63 | -58.27 | 78.73 | 0.8477 | -842.8 | -254.4 | |
| 0.00 | 0.99 | 0.00 | 0.96 | 12.89 | 128.32 | -59.58 | 78.67 | 0.8593 | 379.0 | 313.9 | |
| 0.00 | 1.45 | 0.00 | 1.38 | 11.80 | 128.60 | -59.30 | 79.94 | 0.8568 | -206.0 | -67.4 | |
| 0.00 | 1.27 | 0.00 | 1.20 | 11.50 | 128.71 | -59.19 | 80.29 | 0.8559 | -402.0 | -273.3 | |
| 0.00 | 0.99 | 0.00 | 0.97 | 12.67 | 127.97 | -59.93 | 78.93 | 0.8624 | 9.0 | -24.8 | |
| 0.00 | 3.71 | 0.00 | 3.55 | 11.20 | 128.50 | -59.40 | 80.64 | 0.8578 | -144.0 | -267.2 | |
| 0.00 | 0.72 | 0.00 | 0.71 | 11.67 | 127.53 | -60.37 | 80.09 | 0.8662 | 318.0 | 312.5 | |
| 0.00 | 1.08 | 0.00 | 1.06 | 10.86 | 127.81 | -60.09 | 81.03 | 0.8638 | 301.0 | 268.3 | |
| 0.00 | 0.90 | 0.00 | 0.90 | 11.90 | 127.06 | -60.84 | 79.81 | 0.8702 | 246.0 | 215.1 | |
| 0.00 | 0.72 | 0.00 | 0.72 | 9.62 | 127.38 | -60.52 | 82.45 | 0.8677 | 691.0 | 591.1 | |
| 0.00 | 1.54 | 0.00 | 1.57 | 11.75 | 126.40 | -61.50 | 79.98 | 0.8757 | 616.0 | 502.6 | |
| 0.00 | 1.36 | 0.00 | 1.37 | 9.72 | 126.78 | -61.12 | 82.32 | 0.8729 | 545.0 | 476.4 | |
| 0.00 | 1.08 | 0.00 | 1.10 | 10.26 | 126.61 | -61.29 | 81.70 | 0.8742 | 546.0 | 539.7 | |
| 0.90 | 25.68 | 0.92 | 26.29 | 10.02 | 126.42 | -61.48 | 81.96 | 0.8758 | 761.4 | 592.7 | |
| 0.00 | 0.81 | 0.00 | 0.84 | 10.97 | 126.03 | -61.87 | 80.86 | 0.8788 | 386.0 | 340.6 | |
| 5.24 | -14.00 | 5.44 | -14.00 | 10.03 | 125.89 | -62.01 | 81.93 | 0.8801 | 679.8 | 999999 | |
| 2.08 | -14.00 | 2.16 | -14.00 | 9.81 | 125.83 | -62.07 | 82.18 | 0.8807 | 553.9 | 999999 | |
| 2.53 | 86.34 | 2.67 | 93.64 | 10.32 | 125.33 | -62.58 | 81.59 | 0.8847 | 587.3 | 45.9 | |
| 0.00 | 0.99 | 0.00 | 1.05 | 9.95 | 125.32 | -62.58 | 82.01 | 0.8848 | 333.0 | 320.6 | |
| 13.56 | -18.00 | 14.67 | -18.00 | 10.13 | 124.57 | -63.33 | 81.78 | 0.8907 | 499.7 | 999999 | |
| 3.98 | -18.00 | 4.34 | -18.00 | 10.53 | 124.28 | -63.62 | 81.32 | 0.8928 | 361.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
