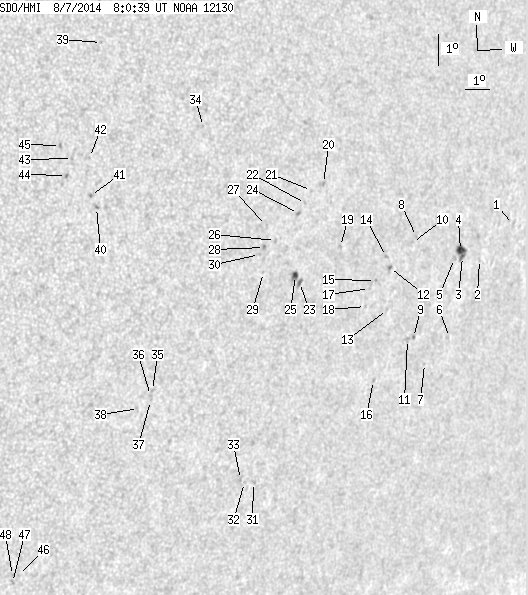

SDO HMI 2014-08-07 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.67 | 74.57 | 6.42 | 52.02 | -8.39 | 228.79 | 41.98 | 251.06 | 0.7001 | 114.1 | 158.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 2.10 | -7.08 | 236.99 | 50.19 | 255.92 | 0.7881 | 404.0 | 314.1 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -8.05 | 235.53 | 48.72 | 254.25 | 0.7754 | 604.0 | 503.7 | |
| 0.99 | 10.67 | 0.76 | 8.17 | -7.89 | 234.71 | 47.91 | 254.19 | 0.7662 | 592.2 | 487.7 | |
| 4.97 | -3.00 | 3.81 | -3.00 | -7.69 | 234.59 | 47.79 | 254.40 | 0.7643 | 728.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.45 | -7.92 | 234.35 | 47.55 | 254.02 | 0.7624 | 685.0 | 626.5 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -10.42 | 234.56 | 47.76 | 250.96 | 0.7725 | 445.0 | 413.0 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -11.16 | 233.57 | 46.77 | 249.66 | 0.7646 | 505.0 | 426.4 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -7.09 | 232.53 | 45.72 | 254.47 | 0.7397 | -551.0 | -462.9 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -10.28 | 232.90 | 46.09 | 250.49 | 0.7544 | 507.0 | 457.5 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -7.26 | 232.38 | 45.57 | 254.18 | 0.7386 | -527.0 | -366.9 | |
| 0.00 | 2.80 | 0.00 | 2.10 | -10.33 | 232.64 | 45.83 | 250.33 | 0.7517 | 612.0 | 525.9 | |
| 0.36 | 2.62 | 0.26 | 1.90 | -7.97 | 231.47 | 44.66 | 252.92 | 0.7305 | 661.0 | 510.4 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -9.30 | 231.58 | 44.77 | 251.23 | 0.7364 | -413.0 | -291.2 | |
| 0.00 | 1.72 | 0.00 | 1.24 | -7.61 | 231.29 | 44.48 | 253.32 | 0.7273 | 672.0 | 548.8 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -8.33 | 230.91 | 44.11 | 252.22 | 0.7255 | 646.0 | 572.2 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -11.52 | 231.37 | 44.57 | 248.27 | 0.7425 | 454.0 | 397.2 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -8.57 | 230.69 | 43.88 | 251.82 | 0.7238 | 482.0 | 435.9 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -9.12 | 230.60 | 43.80 | 251.05 | 0.7248 | 506.0 | 367.1 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -7.15 | 229.28 | 42.47 | 253.17 | 0.7023 | 669.0 | 539.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -5.12 | 228.38 | 41.58 | 255.64 | 0.6846 | 697.0 | 630.4 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -5.30 | 227.91 | 41.10 | 255.20 | 0.6793 | 679.0 | 527.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -5.69 | 227.70 | 40.89 | 254.57 | 0.6780 | 641.0 | 486.1 | |
| 0.00 | 2.80 | 0.00 | 1.91 | -8.15 | 227.71 | 40.90 | 251.11 | 0.6874 | 569.0 | 402.2 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -5.98 | 227.44 | 40.63 | 254.05 | 0.6759 | 741.0 | 647.6 | |
| 2.35 | 5.24 | 1.59 | 3.55 | -7.92 | 227.52 | 40.71 | 251.35 | 0.6841 | 830.5 | 589.4 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -6.76 | 226.59 | 39.78 | 252.57 | 0.6683 | 437.0 | 378.6 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -6.26 | 226.18 | 39.37 | 253.11 | 0.6613 | 436.0 | 455.8 | |
| 0.00 | 1.81 | 0.00 | 1.19 | -6.95 | 226.17 | 39.36 | 252.11 | 0.6638 | 778.0 | 690.0 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -7.73 | 226.21 | 39.40 | 251.01 | 0.6675 | 552.0 | 392.6 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -7.15 | 225.99 | 39.18 | 251.74 | 0.6624 | 634.0 | 588.4 | |
| 0.00 | 1.81 | 0.00 | 1.26 | -14.45 | 226.90 | 40.09 | 242.26 | 0.7070 | -682.0 | -583.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -14.42 | 226.52 | 39.72 | 242.07 | 0.7027 | -663.0 | -601.3 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -14.31 | 226.34 | 39.53 | 242.11 | 0.7001 | -585.0 | -580.6 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -3.02 | 223.53 | 36.72 | 256.91 | 0.6153 | -598.0 | -509.2 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -11.18 | 222.32 | 35.52 | 243.91 | 0.6368 | -717.0 | -522.1 | |
| 0.00 | 1.99 | 0.00 | 1.28 | -11.34 | 222.27 | 35.46 | 243.66 | 0.6370 | -485.0 | -369.0 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -11.50 | 222.29 | 35.48 | 243.44 | 0.6382 | -332.0 | -357.5 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -11.72 | 221.87 | 35.06 | 242.84 | 0.6344 | -556.0 | -546.3 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -0.20 | 219.69 | 32.88 | 260.16 | 0.5531 | -514.0 | -328.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -5.27 | 219.66 | 32.85 | 251.40 | 0.5721 | -797.0 | -671.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -4.89 | 219.42 | 32.61 | 251.91 | 0.5670 | -862.0 | -716.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -3.71 | 219.32 | 32.52 | 253.86 | 0.5606 | -537.0 | -436.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -3.70 | 218.71 | 31.90 | 253.55 | 0.5520 | -701.0 | -529.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -4.22 | 218.52 | 31.71 | 252.55 | 0.5516 | -895.0 | -756.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -3.28 | 218.26 | 31.46 | 254.06 | 0.5440 | -858.0 | -748.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -16.90 | 218.21 | 31.41 | 232.89 | 0.6274 | -640.0 | -458.8 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -17.12 | 218.03 | 31.22 | 232.45 | 0.6271 | -507.0 | -478.9 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -16.88 | 217.99 | 31.18 | 232.72 | 0.6249 | -447.0 | -443.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
