SDO HMI 2014-08-07 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.67 | 299.99 | 20.79 | 152.92 | 9.63 | 173.90 | -12.91 | 73.89 | 0.2310 | 95.2 | 220.9 | |
|
previous
or next observation for the same group /

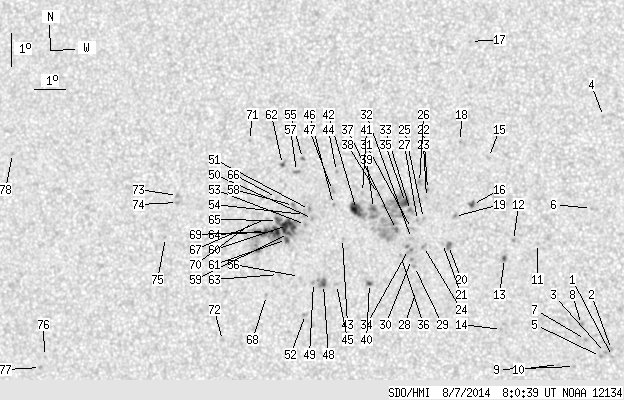

back to the solar disc SDO HMI 2014-08-07 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.22 | 5.82 | 181.96 | -4.84 | 94.30 | 0.0846 | -799.0 | -553.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.03 | 181.93 | -4.87 | 91.76 | 0.0849 | -993.0 | -801.7 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 5.94 | 181.75 | -5.06 | 92.73 | 0.0882 | -1056.0 | -900.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.13 | 181.59 | -5.22 | 36.20 | 0.1507 | -689.0 | -503.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.82 | 181.60 | -5.21 | 93.99 | 0.0910 | -948.0 | -821.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.31 | 181.26 | -5.54 | 52.76 | 0.1199 | -802.0 | -643.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.33 | 181.13 | -5.68 | 88.41 | 0.0988 | -1173.0 | -993.9 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 6.78 | 181.00 | -5.80 | 83.92 | 0.1014 | -1202.0 | -868.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.50 | 180.80 | -6.01 | 96.35 | 0.1053 | -938.0 | -697.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 5.56 | 180.31 | -6.50 | 95.33 | 0.1136 | -758.0 | -585.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.23 | 179.61 | -7.20 | 66.54 | 0.1355 | -815.0 | -655.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.31 | 178.86 | -7.95 | 67.93 | 0.1479 | -1040.0 | -857.9 | |
| 0.90 | 1.90 | 0.45 | 0.95 | 8.76 | 178.59 | -8.21 | 72.05 | 0.1491 | -1171.2 | -972.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.60 | 178.54 | -8.27 | 86.76 | 0.1437 | -703.0 | -463.9 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 11.83 | 178.01 | -8.79 | 56.42 | 0.1804 | -829.0 | -659.6 | |
| 1.36 | 3.07 | 0.68 | 1.55 | 10.39 | 177.55 | -9.25 | 64.80 | 0.1756 | -1085.5 | -806.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.38 | 177.31 | -9.50 | 44.68 | 0.2273 | -768.0 | -666.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.31 | 177.11 | -9.69 | 56.74 | 0.1976 | -819.0 | -651.2 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 10.02 | 177.00 | -9.81 | 67.91 | 0.1818 | -1035.0 | -858.1 | |
| 0.00 | 4.07 | 0.00 | 2.05 | 9.13 | 176.84 | -9.97 | 72.87 | 0.1797 | -1191.0 | -928.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.19 | 176.65 | -10.16 | 72.84 | 0.1830 | -783.0 | -558.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.82 | 176.13 | -10.68 | 65.64 | 0.2007 | -979.0 | -826.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.58 | 176.10 | -10.70 | 66.82 | 0.1995 | -789.0 | -657.6 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 9.09 | 176.06 | -10.75 | 74.18 | 0.1923 | -1141.0 | -883.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.94 | 176.03 | -10.78 | 70.00 | 0.1969 | -915.0 | -723.7 | |
| 0.00 | 3.07 | 0.00 | 1.56 | 11.03 | 175.87 | -10.94 | 65.18 | 0.2061 | -789.0 | -658.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.87 | 175.84 | -10.96 | 70.60 | 0.1995 | -921.0 | -683.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.74 | 175.87 | -10.93 | 81.28 | 0.1910 | -807.0 | -558.4 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.47 | 175.79 | -11.01 | 77.59 | 0.1944 | -1106.0 | -841.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.68 | 175.69 | -11.11 | 76.63 | 0.1968 | -970.0 | -906.6 | |
| 0.00 | 3.16 | 0.00 | 1.60 | 9.63 | 175.66 | -11.14 | 72.05 | 0.2012 | -805.0 | -661.1 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 9.32 | 175.67 | -11.13 | 73.50 | 0.1996 | -694.0 | -584.5 | |
| 0.00 | 2.89 | 0.00 | 1.46 | 10.17 | 175.61 | -11.19 | 69.54 | 0.2048 | -898.0 | -719.3 | |
| 0.00 | 5.24 | 0.00 | 2.65 | 8.98 | 175.59 | -11.22 | 75.25 | 0.1996 | -471.0 | -777.3 | |
| 3.98 | 41.77 | 2.02 | 21.17 | 10.41 | 175.45 | -11.36 | 68.70 | 0.2089 | -457.7 | 243.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.80 | 175.34 | -11.46 | 76.43 | 0.2029 | -675.0 | -582.1 | |
| 0.45 | 32.91 | 0.23 | 16.69 | 9.59 | 175.19 | -11.61 | 72.86 | 0.2087 | -890.2 | -94.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 10.64 | 174.59 | -12.22 | 69.01 | 0.2238 | 930.0 | 645.6 | |
| 1.08 | 12.03 | 0.55 | 6.11 | 10.21 | 174.44 | -12.36 | 71.04 | 0.2238 | 1086.3 | 702.3 | |
| 0.99 | 2.98 | 0.50 | 1.51 | 7.93 | 174.40 | -12.41 | 81.30 | 0.2163 | -1000.4 | -744.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.69 | 174.08 | -12.73 | 69.52 | 0.2322 | 714.0 | 576.0 | |
| 9.13 | 16.82 | 4.65 | 8.56 | 10.17 | 173.91 | -12.90 | 71.89 | 0.2322 | 1098.9 | 781.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.28 | 173.50 | -13.31 | 76.04 | 0.2351 | 882.0 | 608.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.31 | 173.22 | -13.58 | 68.22 | 0.2491 | 941.0 | 729.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 7.87 | 173.36 | -13.45 | 82.07 | 0.2336 | 871.0 | 626.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.30 | 173.17 | -13.63 | 72.19 | 0.2447 | 940.0 | 779.5 | |
| 0.00 | 3.25 | 0.00 | 1.66 | 10.73 | 173.12 | -13.68 | 70.58 | 0.2476 | 948.0 | 815.7 | |
| 0.63 | 7.05 | 0.32 | 3.60 | 7.86 | 172.95 | -13.86 | 82.30 | 0.2405 | 1195.1 | 951.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.91 | 172.63 | -14.18 | 82.22 | 0.2459 | 906.0 | 802.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 9.86 | 172.52 | -14.28 | 74.57 | 0.2533 | 1005.0 | 703.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 10.13 | 172.42 | -14.39 | 73.63 | 0.2561 | 1110.0 | 919.4 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 6.94 | 172.41 | -14.40 | 86.25 | 0.2485 | 1017.0 | 773.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 9.67 | 172.31 | -14.50 | 75.48 | 0.2561 | 1021.0 | 765.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 9.98 | 172.26 | -14.54 | 74.36 | 0.2580 | 1054.0 | 941.3 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 11.68 | 172.12 | -14.69 | 68.28 | 0.2685 | -883.0 | -629.1 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 8.09 | 172.18 | -14.63 | 81.73 | 0.2538 | 162.0 | 237.8 | |
| 0.00 | 2.71 | 0.00 | 1.39 | 11.28 | 171.94 | -14.86 | 69.90 | 0.2690 | 904.0 | 697.1 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 10.24 | 171.90 | -14.91 | 73.70 | 0.2649 | 814.0 | 694.8 | |
| 1.63 | 78.30 | 0.84 | 40.29 | 9.38 | 171.78 | -15.03 | 76.98 | 0.2637 | 1318.6 | 789.3 | |
| 11.12 | -59.00 | 5.71 | -59.00 | 9.63 | 171.74 | -15.07 | 76.11 | 0.2652 | 1201.1 | 999999 | |
| 1.54 | -59.00 | 0.79 | -59.00 | 9.20 | 171.72 | -15.08 | 77.71 | 0.2641 | 1095.4 | 999999 | |
| 0.72 | 2.89 | 0.37 | 1.49 | 11.48 | 171.48 | -15.32 | 69.70 | 0.2773 | 973.2 | 754.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.13 | 171.51 | -15.30 | 81.85 | 0.2650 | 830.0 | 685.6 | |
| 3.07 | -59.00 | 1.58 | -59.00 | 9.44 | 171.42 | -15.38 | 77.04 | 0.2697 | 1193.4 | 999999 | |
| 2.35 | -59.00 | 1.21 | -59.00 | 9.77 | 171.41 | -15.40 | 75.83 | 0.2711 | 870.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.47 | 171.34 | -15.46 | 73.38 | 0.2748 | 690.0 | 490.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.82 | 171.05 | -15.75 | 75.91 | 0.2770 | 637.0 | 508.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.48 | 171.15 | -15.65 | 84.39 | 0.2700 | 743.0 | 633.0 | |
| 1.72 | -59.00 | 0.89 | -59.00 | 9.43 | 171.04 | -15.77 | 77.33 | 0.2759 | 1026.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.72 | 170.64 | -16.16 | 76.56 | 0.2834 | 710.0 | 563.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.18 | 170.38 | -16.43 | 68.56 | 0.2983 | -901.0 | -654.3 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 6.07 | 169.79 | -17.01 | 89.52 | 0.2922 | 737.0 | 463.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.44 | 168.14 | -18.66 | 75.84 | 0.3260 | 845.0 | 760.6 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 10.22 | 168.16 | -18.65 | 76.48 | 0.3251 | 962.0 | 736.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.14 | 167.83 | -18.98 | 79.91 | 0.3276 | 548.0 | 532.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 5.38 | 164.03 | -22.78 | 90.88 | 0.3871 | 698.0 | 499.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 5.04 | 163.91 | -22.90 | 91.74 | 0.3894 | 780.0 | 633.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 11.51 | 162.57 | -24.24 | 75.80 | 0.4167 | 697.0 | 547.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
