SDO HMI 2014-08-07 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.74 | 55.33 | 19.14 | 76.39 | -20.85 | 250.75 | 64.49 | 244.76 | 0.9335 | 0.5 | -84.8 | |
|
previous
or next observation for the same group /

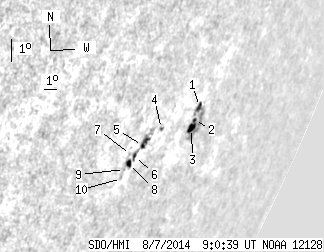

back to the solar disc SDO HMI 2014-08-07 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.62 | 28.21 | 3.84 | 41.83 | -20.01 | 252.55 | 66.29 | 246.11 | 0.9424 | 387.7 | -89.9 | |
| 0.90 | -1.00 | 1.33 | -1.00 | -20.48 | 252.54 | 66.28 | 245.63 | 0.9430 | 474.4 | 999999 | |
| 4.97 | -1.00 | 7.32 | -1.00 | -20.74 | 252.52 | 66.26 | 245.36 | 0.9433 | 291.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.80 | -20.48 | 249.98 | 63.72 | 244.95 | 0.9288 | -150.0 | -57.3 | |
| 1.45 | 20.52 | 1.85 | 26.19 | -20.94 | 248.94 | 62.68 | 244.17 | 0.9235 | -164.8 | 5.2 | |
| 1.18 | -5.00 | 1.49 | -5.00 | -21.28 | 248.62 | 62.37 | 243.73 | 0.9223 | -343.8 | 999999 | |
| 0.00 | 2.98 | 0.00 | 3.73 | -21.18 | 248.26 | 62.01 | 243.73 | 0.9199 | -329.0 | -231.0 | |
| 2.62 | -5.00 | 3.31 | -5.00 | -21.49 | 248.35 | 62.10 | 243.43 | 0.9210 | -528.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 1.02 | -21.68 | 248.21 | 61.96 | 243.20 | 0.9206 | -559.0 | -507.6 | |
| 0.00 | 1.45 | 0.00 | 1.82 | -21.98 | 248.23 | 61.98 | 242.88 | 0.9213 | -636.0 | -456.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
