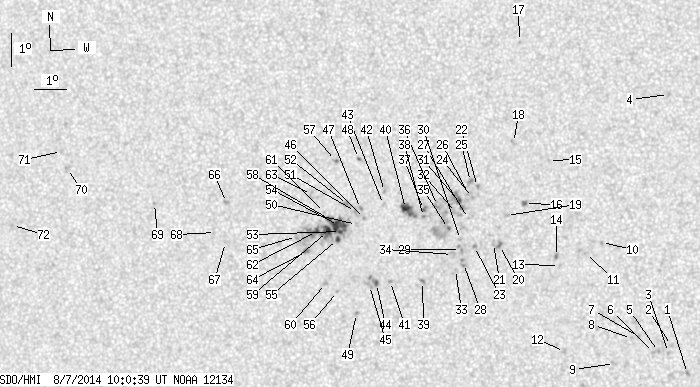

SDO HMI 2014-08-07 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.44 | 263.93 | 17.56 | 134.12 | 9.49 | 173.77 | -11.94 | 73.71 | 0.2148 | 90.6 | 146.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-07 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.08 | 5.25 | 182.67 | -3.04 | 107.29 | 0.0555 | -1038.0 | -798.8 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 6.10 | 182.18 | -3.53 | 91.45 | 0.0615 | -837.0 | -674.5 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.89 | 182.09 | -3.62 | 94.79 | 0.0633 | -887.0 | -690.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 13.75 | 182.01 | -3.70 | 25.45 | 0.1464 | -849.0 | -681.3 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 5.92 | 181.78 | -3.93 | 93.97 | 0.0686 | -1055.0 | -869.3 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.88 | 181.63 | -4.08 | 94.25 | 0.0713 | -868.0 | -648.9 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 6.37 | 181.17 | -4.54 | 87.64 | 0.0791 | -1113.0 | -872.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.30 | 180.95 | -4.76 | 88.48 | 0.0828 | -794.0 | -680.0 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 5.54 | 180.44 | -5.27 | 96.90 | 0.0926 | -782.0 | -608.9 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.22 | 179.99 | -5.71 | 61.60 | 0.1122 | -879.0 | -752.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.88 | 179.50 | -6.20 | 66.10 | 0.1173 | -956.0 | -776.6 | |
| 0.00 | 2.35 | 0.00 | 1.17 | 5.89 | 178.90 | -6.81 | 92.26 | 0.1186 | -855.0 | -675.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.50 | 178.71 | -7.00 | 71.24 | 0.1279 | -976.0 | -747.8 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 8.78 | 178.61 | -7.10 | 69.47 | 0.1310 | -1339.0 | -1018.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.70 | 178.30 | -7.41 | 52.58 | 0.1598 | -829.0 | -645.1 | |
| 0.72 | 3.16 | 0.36 | 1.59 | 10.38 | 177.58 | -8.13 | 62.03 | 0.1582 | -1213.4 | -861.1 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 15.33 | 177.26 | -8.45 | 41.55 | 0.2145 | -807.0 | -692.3 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 12.23 | 177.18 | -8.53 | 53.75 | 0.1805 | -756.0 | -660.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.00 | 177.03 | -8.68 | 65.57 | 0.1640 | -829.0 | -630.2 | |
| 0.00 | 3.07 | 0.00 | 1.54 | 9.09 | 176.83 | -8.88 | 71.29 | 0.1616 | -1194.0 | -965.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.14 | 176.64 | -9.07 | 71.30 | 0.1650 | -817.0 | -616.8 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 10.87 | 176.09 | -9.62 | 63.18 | 0.1846 | -845.0 | -722.6 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 9.04 | 176.05 | -9.66 | 72.86 | 0.1742 | -1196.0 | -897.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.53 | 175.95 | -9.76 | 65.18 | 0.1845 | -960.0 | -839.3 | |
| 0.00 | 3.53 | 0.00 | 1.78 | 11.02 | 175.87 | -9.84 | 62.97 | 0.1892 | -836.0 | -663.3 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.65 | 175.82 | -9.89 | 64.86 | 0.1873 | -519.0 | -513.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.89 | 175.84 | -9.87 | 68.66 | 0.1821 | -998.0 | -699.2 | |
| 0.00 | 3.44 | 0.00 | 1.73 | 8.52 | 175.72 | -9.99 | 76.21 | 0.1774 | -685.0 | -893.9 | |
| 0.00 | 2.89 | 0.00 | 1.46 | 8.94 | 175.62 | -10.09 | 74.04 | 0.1809 | -794.0 | -850.7 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 9.25 | 175.61 | -10.10 | 72.43 | 0.1824 | -734.0 | -590.9 | |
| 1.81 | 17.45 | 0.91 | 8.81 | 10.44 | 175.51 | -10.20 | 66.56 | 0.1907 | -790.2 | -129.7 | |
| 0.00 | 6.33 | 0.00 | 3.19 | 10.07 | 175.46 | -10.25 | 68.46 | 0.1892 | 119.0 | -61.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.33 | 175.48 | -10.23 | 77.52 | 0.1808 | -867.0 | -622.1 | |
| 0.00 | 3.71 | 0.00 | 1.87 | 8.79 | 175.37 | -10.34 | 75.20 | 0.1843 | -466.0 | -559.1 | |
| 0.36 | 25.58 | 0.18 | 12.92 | 9.58 | 175.22 | -10.49 | 71.32 | 0.1903 | -856.2 | -114.0 | |
| 0.00 | 5.70 | 0.00 | 2.88 | 10.27 | 174.86 | -10.85 | 68.53 | 0.2000 | 821.0 | 652.2 | |
| 0.54 | 3.25 | 0.27 | 1.65 | 10.14 | 174.42 | -11.29 | 69.84 | 0.2062 | 1124.3 | 864.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.93 | 174.43 | -11.28 | 70.82 | 0.2050 | 845.0 | 728.7 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 7.95 | 174.46 | -11.25 | 80.44 | 0.1969 | -929.0 | -783.9 | |
| 4.52 | 12.75 | 2.29 | 6.46 | 10.16 | 173.85 | -11.86 | 70.58 | 0.2154 | 1146.2 | 991.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.93 | 173.45 | -12.26 | 81.19 | 0.2137 | 840.0 | 703.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.66 | 173.17 | -12.54 | 69.37 | 0.2290 | 995.0 | 781.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.27 | 173.15 | -12.56 | 71.05 | 0.2272 | 873.0 | 636.1 | |
| 0.99 | 6.24 | 0.51 | 3.17 | 7.86 | 173.01 | -12.69 | 81.76 | 0.2210 | 1072.3 | 887.3 | |
| 0.00 | 3.44 | 0.00 | 1.75 | 7.79 | 172.80 | -12.91 | 82.16 | 0.2245 | 722.0 | 657.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.83 | 172.57 | -13.14 | 73.58 | 0.2346 | 849.0 | 684.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.13 | 172.43 | -13.28 | 72.49 | 0.2382 | 1066.0 | 911.4 | |
| 0.36 | 1.45 | 0.18 | 0.74 | 11.65 | 172.30 | -13.41 | 66.69 | 0.2485 | -660.8 | -552.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.93 | 172.41 | -13.30 | 86.08 | 0.2299 | 952.0 | 790.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 9.64 | 172.32 | -13.39 | 74.61 | 0.2378 | 878.0 | 733.3 | |
| 0.00 | 3.25 | 0.00 | 1.66 | 10.03 | 172.27 | -13.44 | 73.05 | 0.2403 | 1063.0 | 853.4 | |
| 0.00 | 4.43 | 0.00 | 2.26 | 10.24 | 172.01 | -13.70 | 72.50 | 0.2454 | 901.0 | 791.8 | |
| 1.72 | 70.88 | 0.88 | 36.28 | 9.41 | 171.82 | -13.89 | 75.97 | 0.2451 | 1265.4 | 716.3 | |
| 12.02 | -53.00 | 6.15 | -53.00 | 9.59 | 171.75 | -13.96 | 75.31 | 0.2470 | 1197.7 | 999999 | |
| 1.72 | -53.00 | 0.88 | -53.00 | 9.17 | 171.74 | -13.97 | 77.03 | 0.2457 | 1033.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.59 | 171.79 | -13.92 | 83.46 | 0.2410 | 919.0 | 676.2 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 11.57 | 171.57 | -14.14 | 67.98 | 0.2594 | 906.0 | 687.3 | |
| 1.90 | -53.00 | 0.97 | -53.00 | 9.77 | 171.46 | -14.25 | 74.89 | 0.2524 | 865.5 | 999999 | |
| 5.79 | -53.00 | 2.96 | -53.00 | 9.40 | 171.41 | -14.30 | 76.35 | 0.2519 | 1110.9 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 7.82 | 171.41 | -14.30 | 82.65 | 0.2479 | 805.0 | 654.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.98 | 171.29 | -14.42 | 74.23 | 0.2560 | 677.0 | 562.1 | |
| 1.99 | -53.00 | 1.02 | -53.00 | 9.39 | 171.06 | -14.65 | 76.66 | 0.2576 | 1049.1 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.67 | 10.52 | 170.85 | -14.86 | 72.64 | 0.2653 | 388.0 | 591.9 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 8.78 | 170.77 | -14.94 | 79.21 | 0.2606 | 948.0 | 834.2 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 9.22 | 170.43 | -15.28 | 77.74 | 0.2674 | 57.0 | 96.4 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 10.19 | 168.13 | -17.58 | 75.91 | 0.3078 | 906.0 | 668.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.98 | 168.16 | -17.55 | 79.84 | 0.3039 | 859.0 | 679.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.27 | 167.82 | -17.89 | 79.04 | 0.3101 | 262.0 | 285.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.09 | 165.79 | -19.92 | 77.54 | 0.3451 | 790.0 | 623.5 | |
| 0.00 | 3.44 | 0.00 | 1.85 | 11.04 | 162.83 | -22.88 | 76.34 | 0.3944 | 710.0 | 538.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 11.55 | 162.58 | -23.13 | 75.18 | 0.3998 | 703.0 | 538.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 9.23 | 161.11 | -24.60 | 81.34 | 0.4174 | 709.0 | 527.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
